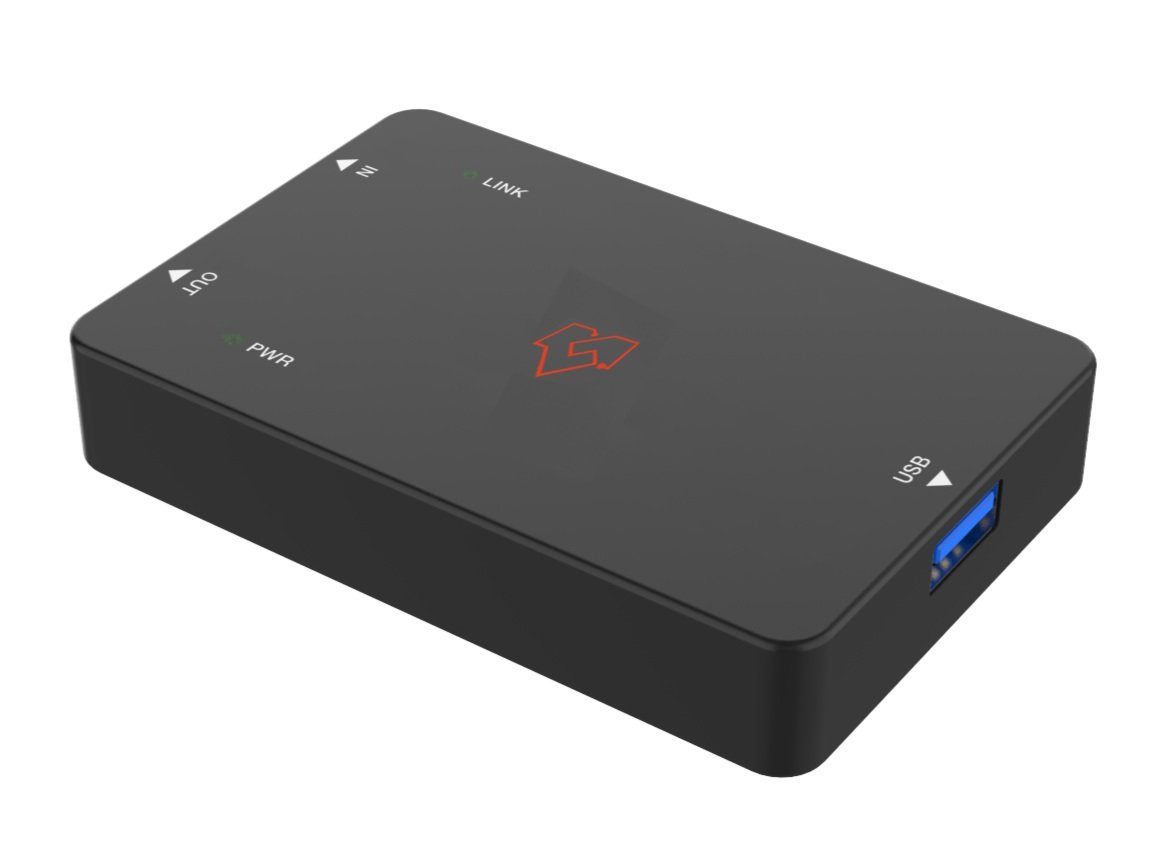

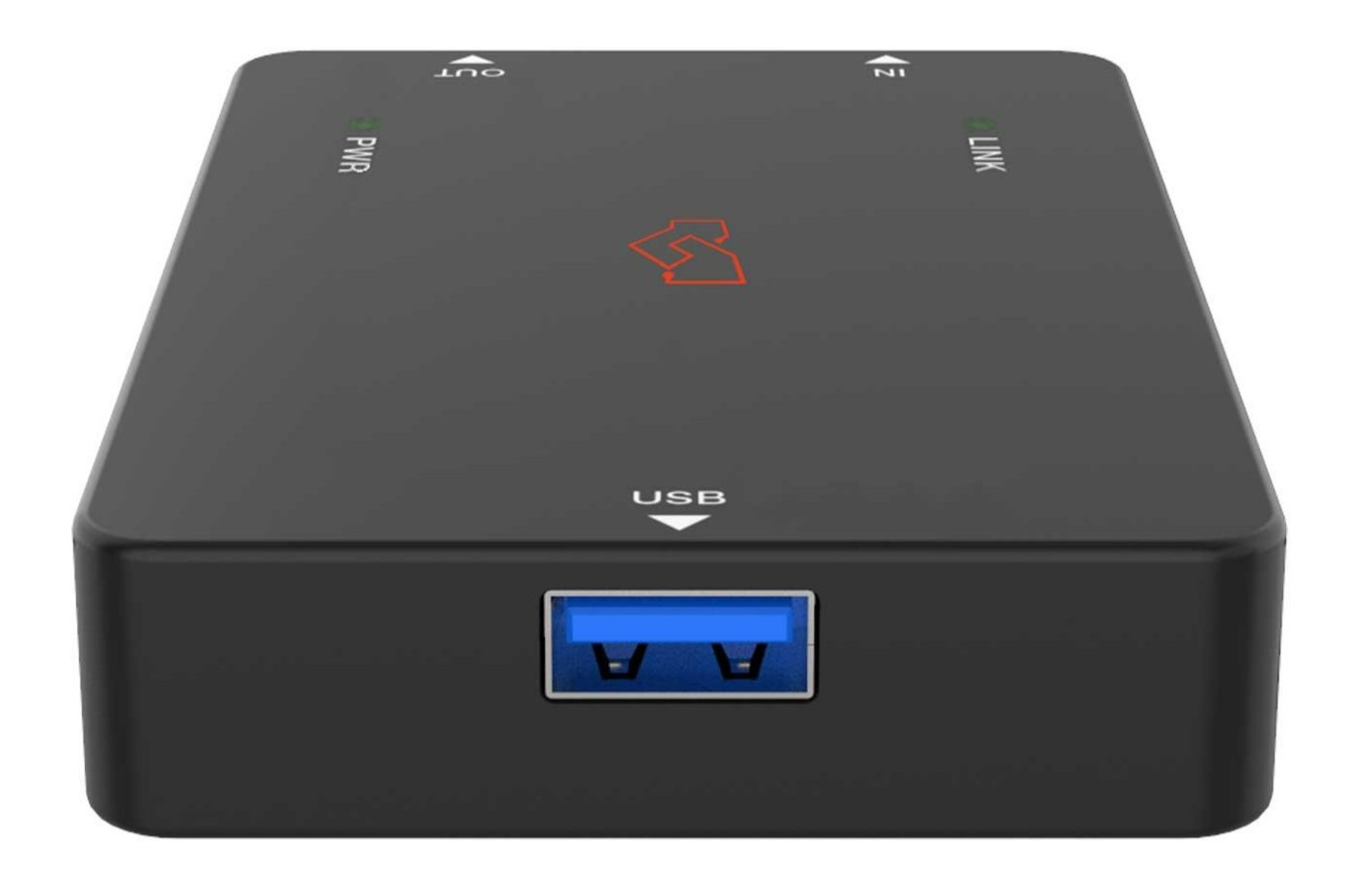

VigilLink VLUC-USB34K 4K HDMI to USB 3.0 Video Capture Dongle

The VLUC-USB34K is an HDMI to USB capture dongle with one HDMI input, one HDMI loop-out, and one USB output. The HDMI input takes resolutions to 4K60, and the USB output both powers the device and captures video at up to 1080p60.

The 4K60 4:4:4 loop-out feeds a local monitor at full resolution while the downscaled 1080p60 feed goes to the computer. Bandwidth is 18Gbps on the HDMI side and 5Gbps on USB, and the dongle is HDMI 2.0b, HDCP 2.2, USB 2.0, and USB 3.0 compliant.

HDMI Compliance	HDMI 2.0b
HDCP Compliance	HDCP 2.2
Video Bandwidth	HDMI: 18 Gbps; USB: 5Gbps
Video Resolution	Up to 4K2K@60Hz 4:4:4 Video will be in YUV2 with no compression if outputting via a USB 3.0 port; Video will be compressed in MJPEG if outputting via a USB 2.0 port
Input	1xHDMI Type A [19-pin female]
Outputs	1xHDMI Type A [19-pin female] 1xUSB Type A [female]
Color Space	RGB, YCbCr_4:4:4, YCbCr_4:2:2, YCbCr_4:2:0
Color Depth	8/10/12-bit
