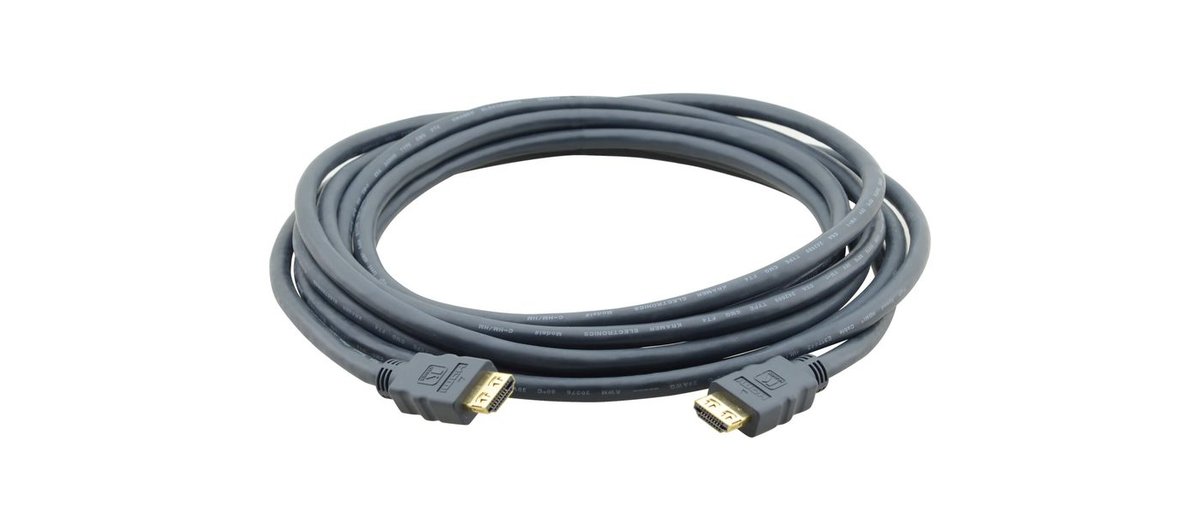

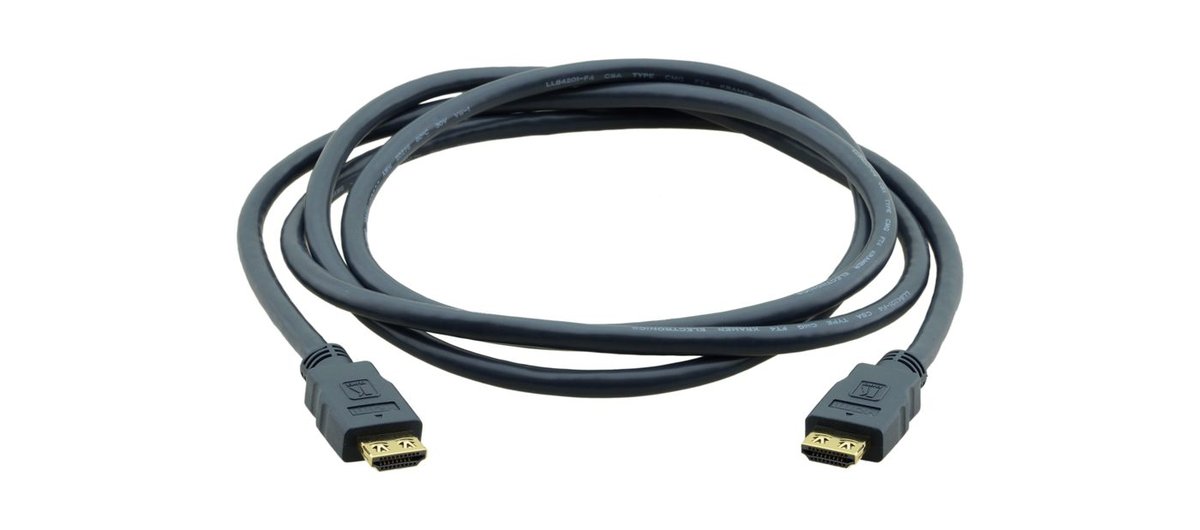

Kramer C-HM/HM PREMIUM High-Speed HDMI Cable
Kramer's C-HM/HM cable is your default choice for high-performance, HDMI cable. It supports signals up to 4K@60Hz (4:4:4), Deep Color, x.v.Color, Lip Sync, 7.1 PCM, Dolby TrueHD, DTS-HD, CEC. Quality Performance - Kramer's HDMI cables provide an uncompressed digital link between consumer electronics equipment such as DVD players, set-top boxes and audio/video monitors such as LCD or OLED display screens for high-definition TVs. Max. Resolution - 4K@60Hz (4:4:4). High-Quality Connectors - 24K gold-plated connectors resist corrosion, and offer the best possible connectivity. K-Lock Pull-Resistant Connectors - Provides 15lbs of restraining force for a non-slip connection. Premium certified (up to 15ft) Varied Selection of Lengths - Available in versions of 0.9 to 15.2m (3, 6, 10, 15, 25, 35 and 50ft). Note - The cable's color can vary in some cases.
| Max Resolution for 3-15ft (.9-4.6m) lengths | 4K@60Hz (4:4:4) |
|---|---|
| Max Resolution for 25-35ft (7.6-10.7m) lengths | 4K@60 (4:2:0) |
| Max Resolution for 50ft (15.2m) lengths | 1080p |
| Max Data Rate for 3-15ft (.9-4.6m) lengths | 18 Gbps |
| Max Data Rate for 25-35ft (7.6-10.7m) lengths | 8.91 Gbps |
| Max Data Rate for 50ft (15.2m) lengths | 4.95Gbps |
| Supported Color Spaces | RGB, YCbCr, xvYCC, Adobe sRGB, sYCC601, BT.2020 |
| HDMI Compliance | HDR,HDCP 2.2, EDID and CEC |
| Supported Audio Formats | Dolby Digital Plus, Dolby TrueHD, DTS-HD Master Audio, DVD Audio, SA-CD |
| HDMI Source | On a male HDMI type A, 24K gold-plated K-Lock connector |
| HDMI Display | On a male HDMI type A, 24K gold-plated K-Lock connector |
| Material | Tinned Copper/Bare Copper |
| 3-35ft (.9-10.7m) lengths | 28AWG (7/0.127) |
| 50ft (15.2m) lengths | 26AWG (7/0.160) |
| Type | Triple shielding |
| Color | Gray |
| Diameter for 3-35ft (.9-10.7m) lengths | 6.50 +/- 0.15mm |
| Diameter for 50ft (15.2m) lengths | 9 +/- 0.25 |
| Cable Bending Radius for 3-35ft (.9-10.7m) lengths | 60mm |
| Cable Bending Radius for 50ft (15.2m) lengths | 90mm |
| Temperature Rating | 80C |
| Voltage Rating | 30V |
| Conductor Resistance - 28AWG | 237.25ohm/km |
| Conductor Resistance - 26AWG | 148ohm/km MAX. at 20C (68F) |
