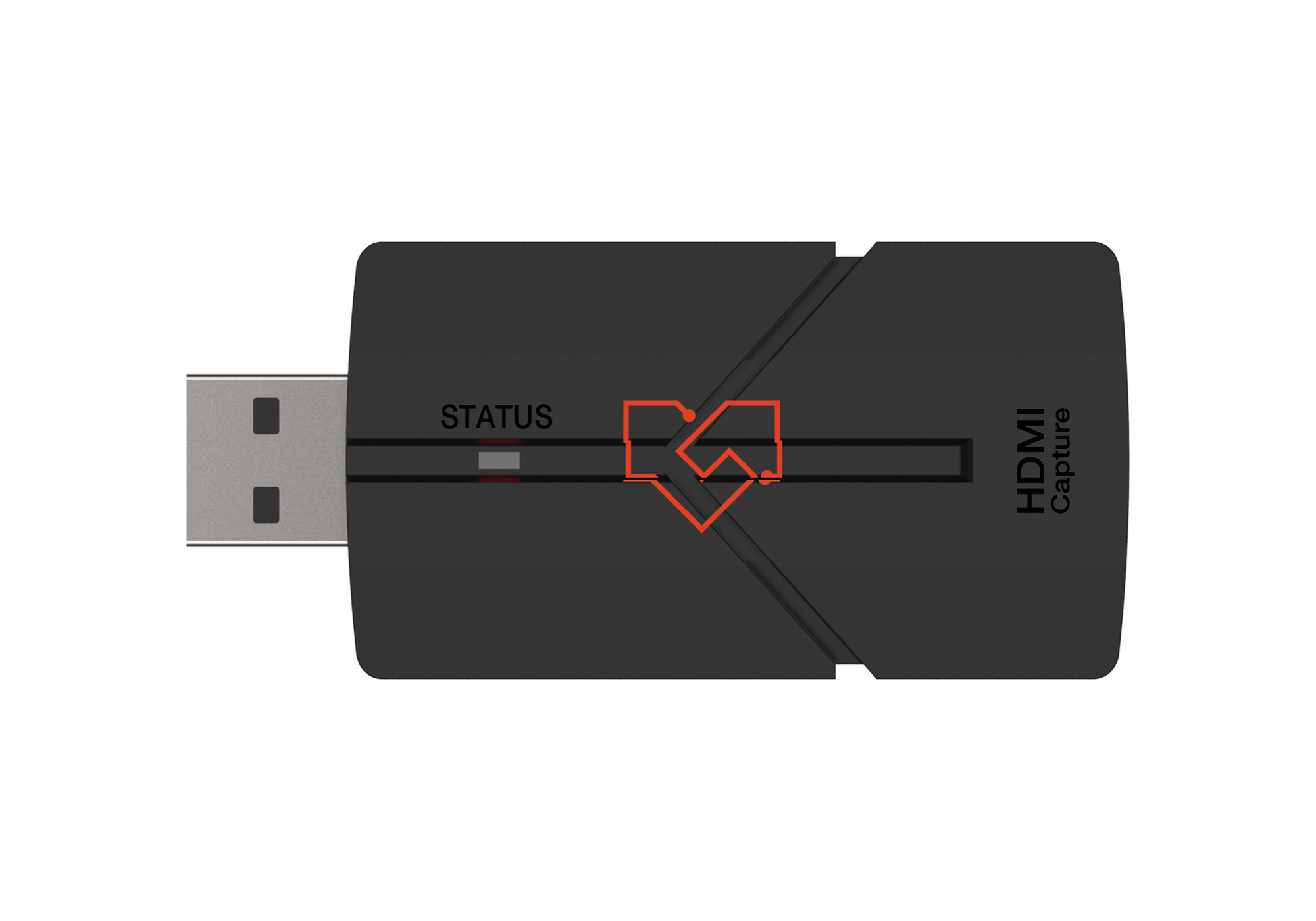

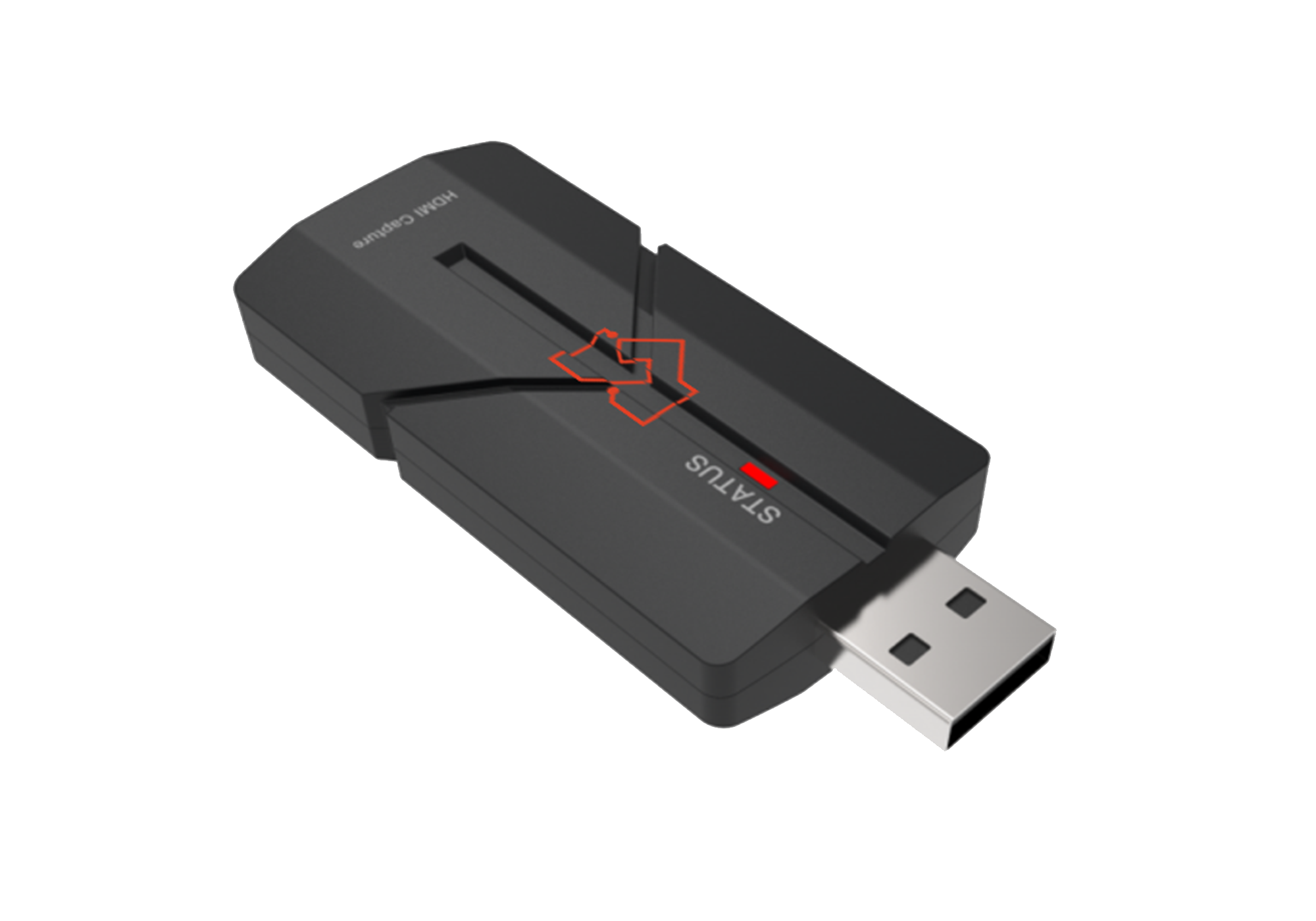

VigilLink VLUC-USB22K HDMI to USB 2.0 Video Capture

The VLUC-USB22K is a pocket-sized HDMI-to-USB 2.0 capture dongle that plugs straight between an HDMI source and a computer's USB port, no drivers needed, so it works the moment it's plugged in on Windows, Linux, or macOS. It accepts HDMI input up to 4K at 30Hz and outputs up to 1080p at 60Hz over its 10.2 Gbps video path, covering RGB and YCbCr 4:4:4/4:2:2 as well as YUV 4:2:0 color, with LPCM 2.0 audio carried alongside the video.

At 51 x 31 x 13mm and 16g, it disappears into a laptop bag or a cable bundle, and it draws its 1.75W of power straight from the USB port, so there is no separate power brick to carry to a stream setup or conference room.

Video InputUp to 4K @ 30Hz, HDMI 1.4, HDCP 1.4
Video OutputUp to 1080p @ 60Hz
Video Bandwidth10.2 Gbps
ColorRGB, YCbCr 4:4:4/4:2:2, YUV 4:2:0
Connectors1x HDMI Type A in, 1x USB Type A (USB 2.0) out
Compatible OSWindows, Linux, macOS (driverless)
Dimensions / Weight51 x 31 x 13 mm, 16 g
PowerUSB 5V, 1.75W
