VigilLink VLSM-4X3P4K-SR PC-Based 4K Multi-Viewer and Recording System

The VLSM-4X3P4K-SR is built to sit alongside several medical devices and record video during an operation or a diagnosis. Sources such as an endoscope, X-ray system, ultrasonic scanner, or da Vinci Surgical System are shown on a monitor and written to the built-in hard disk at the same time, at 4K@60Hz in and out over HDMI.

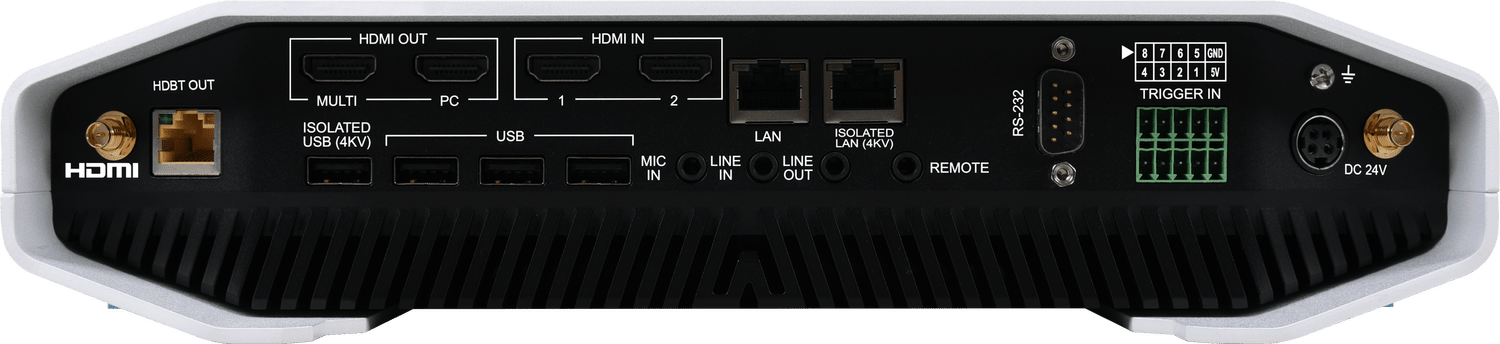

Recording uses H.264 and H.265 codecs, and the system is built on an Intel Atom processor with professional AV streaming firmware. Power-isolated HDMI, RS-232, and LAN ports address the electrical safety requirements of a clinical environment, and video sources can be previewed before selection.

HDMI Compliance	4 HDMI (Type-A) 8 Trigger (10-pin terminal block) 2 Analog Stereo (3.5mm)
HDCP Compliance	2 HDMI (Type-A) 1 HDBaseT (RJ-45) 1 Analog Stereo (3.5mm)
Input Port	4 HDMI (Type-A) 8 Trigger (10-pin terminal block) 2 Analog Stereo (3.5mm)
Housing Construction	Metal (Aluminum)
Device Dimension (W x H x D)	296mmx296mmx67mm [Case Only] 318mmx316mmx67mm [All Inclusive]
Weight	4.3kg
Power Supply	24V/4.17A DC
Input Signal Types	4K@60 YUV 4:2:0
