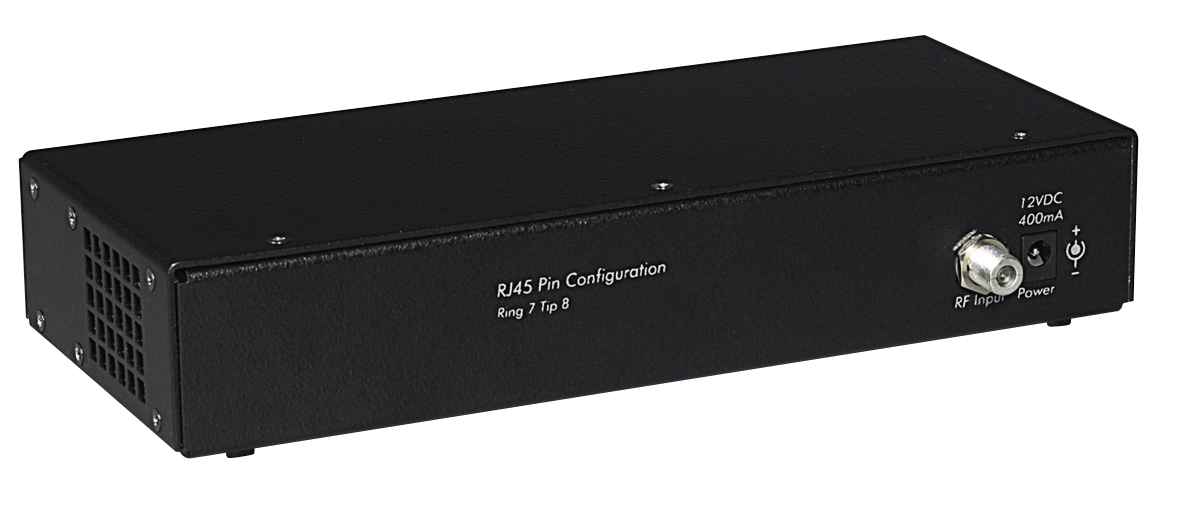

MuxLab 500300 CATV Hub - 8 Ports, 110V

The 500300 takes a terrestrial broadband RF video feed and distributes it to eight receivers over Cat5 unshielded twisted pair instead of coax. Bandwidth is 900 MHz and a built-in RF amplifier compensates for the split, with bi-directional transmission for cable modem return paths.

It works with MuxLab's passive CATV Balun (500302) or the Shielded CATV Balun (500306) at each outlet, so a building already wired for structured cabling can carry RF video without pulling new coax. Centralising the distribution also makes moves, adds, and changes a patch-panel job.

Standard	Broadband CATV, VHF, FM, broadband Internet, digital cable. Does not support satelite RF
Signal	Gain - Forward path (S21) 55-450 MHz: > 12 dB 450-900 MHz: > 10 dB 55-450 MHz: > 12 dB 450-900 MHz: > 10 dB
Frequency	Band Supported CATV: 54-900 MHz, Return Channel: 5-42MHz 8P (500300/500301) 16P (500303/500304)
Connectors	RF Input: "F" connector
Input	100-240V, ~0.5A Max, 50-60Hz
Output	+12V, 1.25A. Output Power: 15W Max. Detachable AC power cord
Cable - UTP	24 gauge or lower solid copper twisted pair wire impedance: 100 ohms at 1 MHz
Power Supply	Desktop 110-240V switching power supply
