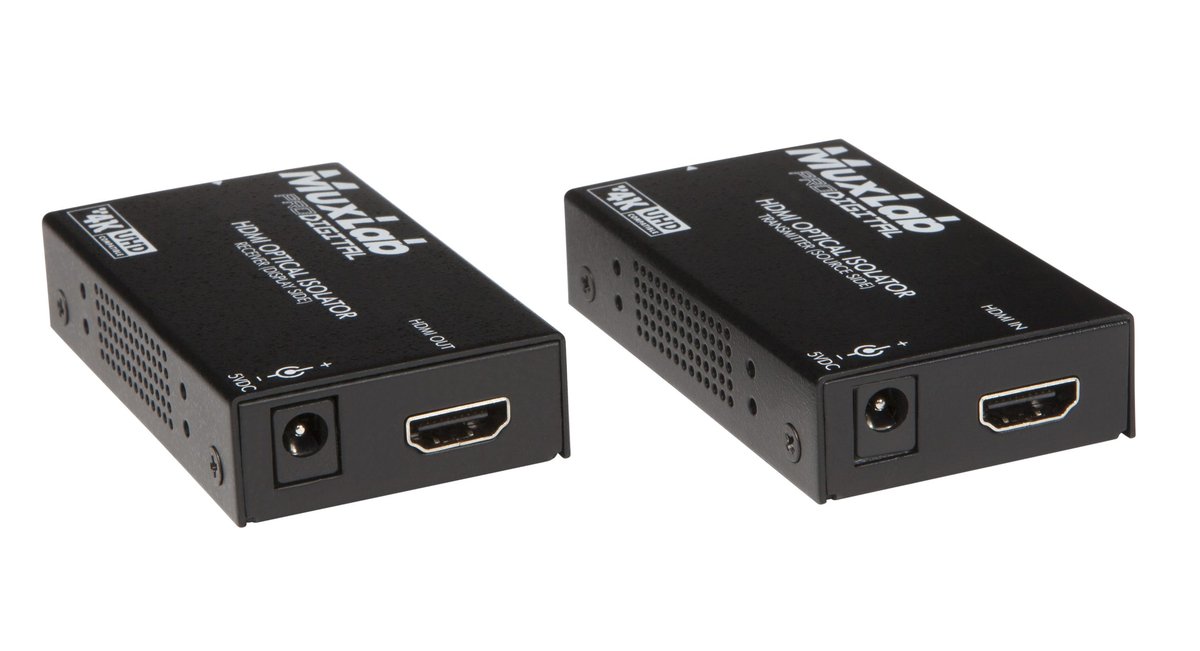

MuxLab 500462 HDMI Optical Isolator Kit

The 500462 kit provides complete electrical isolation between a source and a display, connected up to 984ft (300m) over one LC 50/125 OM3 multimode fibre at 1080p. Communication is unidirectional with no return signalling of any kind.

EDID is fixed rather than negotiated, which is the point: the display cannot send anything back toward the source. That is what makes the link usable where a one-way data path is a requirement, or where source and display sit on electrically separate systems.

Standard	HDMI 1.3a and DVI-D
Signal Format	HDMI 1.3a protocol Copy Protection Do NOT Support HDCP protected content
Bandwidth	340 MHz
Connectors	TX Side: One (1) HDMI receptacle. One (1) LC Fiber connector (output only). One (1) 2.1mm power connector
Cable	One (1) Multimode fiber 50/125 m OM3 cable required
Power Supply	Two (2) 110-240V/5VDC power supply with interchangeable blades
Power Consumption	Transmitter: 1.35 Watt Receiver: 1.15 Watt
Dimensions	3.27" x 1.97" x 0.75" (83 x 50 x 19 mm)
