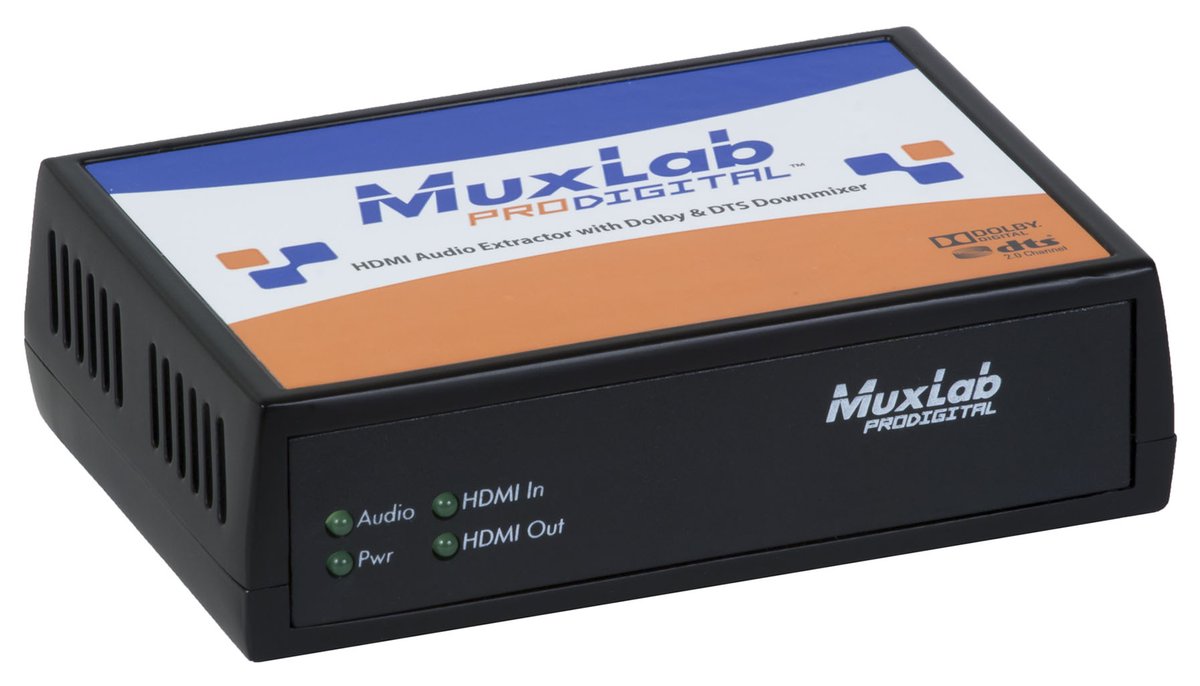

MuxLab 500439 HDMI Audio Extractor with Dolby & DTS Downmixer

The 500439 takes an HDMI 2.0 source at up to 4K/60 4:4:4, loops the video through to a display untouched, and pulls the audio out. It downmixes Dolby Digital, Dolby Digital Plus, Dolby TrueHD, DTS, DTS-HD Master Audio, or LPCM up to 7.1 channels to a two-channel analog output on L/R RCA jacks.

That is the part most extractors skip: many will only pass a bitstream through, which is useless if the amplifier cannot decode it. The unit is HDCP 1.4 and 2.2 compliant, so protected sources are handled properly rather than blanked.

StandardHDMI 2.0a, Dolby Digital, Dolby Digital Plus, Dolby TrueHD, DTS, DTS-HD Master Audio or LPCM
Signal FormatHDMI 2.0a protocol, Dolby Digital, Doby Digital Plus, Dolby TrueHD, DTS, DTS-HD Master
Video Bandwidth18 Gbps
FrequencyRange 25 to 600 MHz
HDCPRevision 1.4 & 2.2 compliant
Audioor LPCM up to 7.1 channels

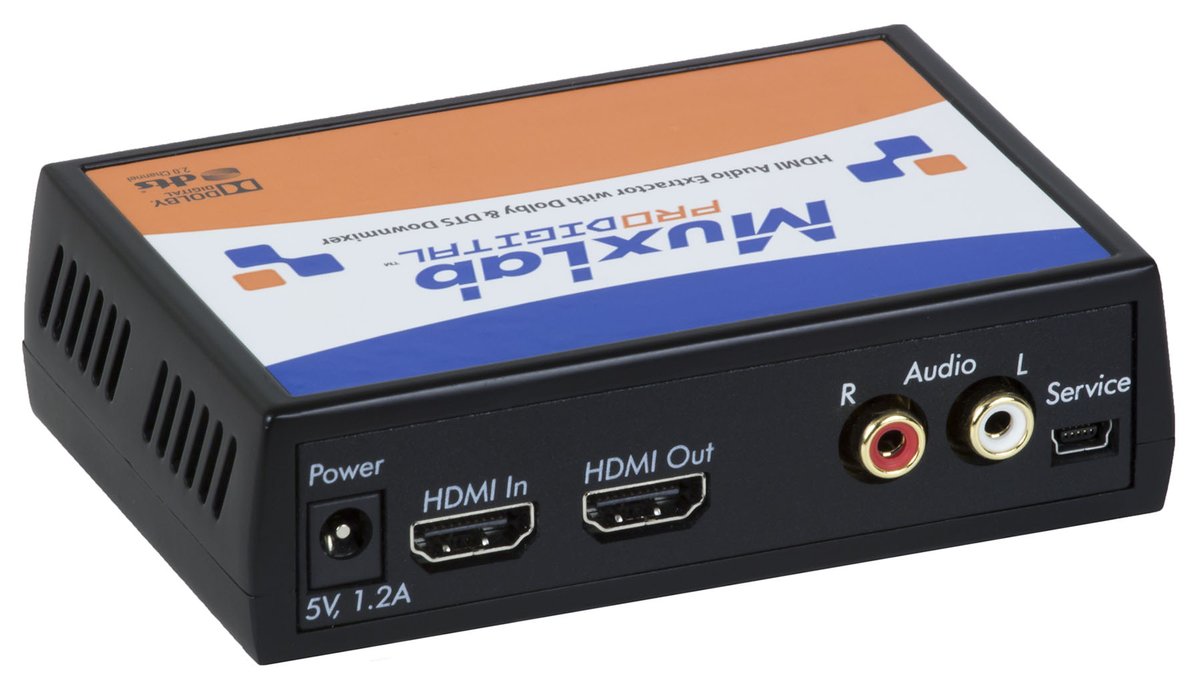

ConnectorsTwo (2) HDMI connectors Two (2) RCA Connectors One (1) Mini-USB (for firmware updates)
Power SupplyOne (1) 110-240V/5VDC power supply
