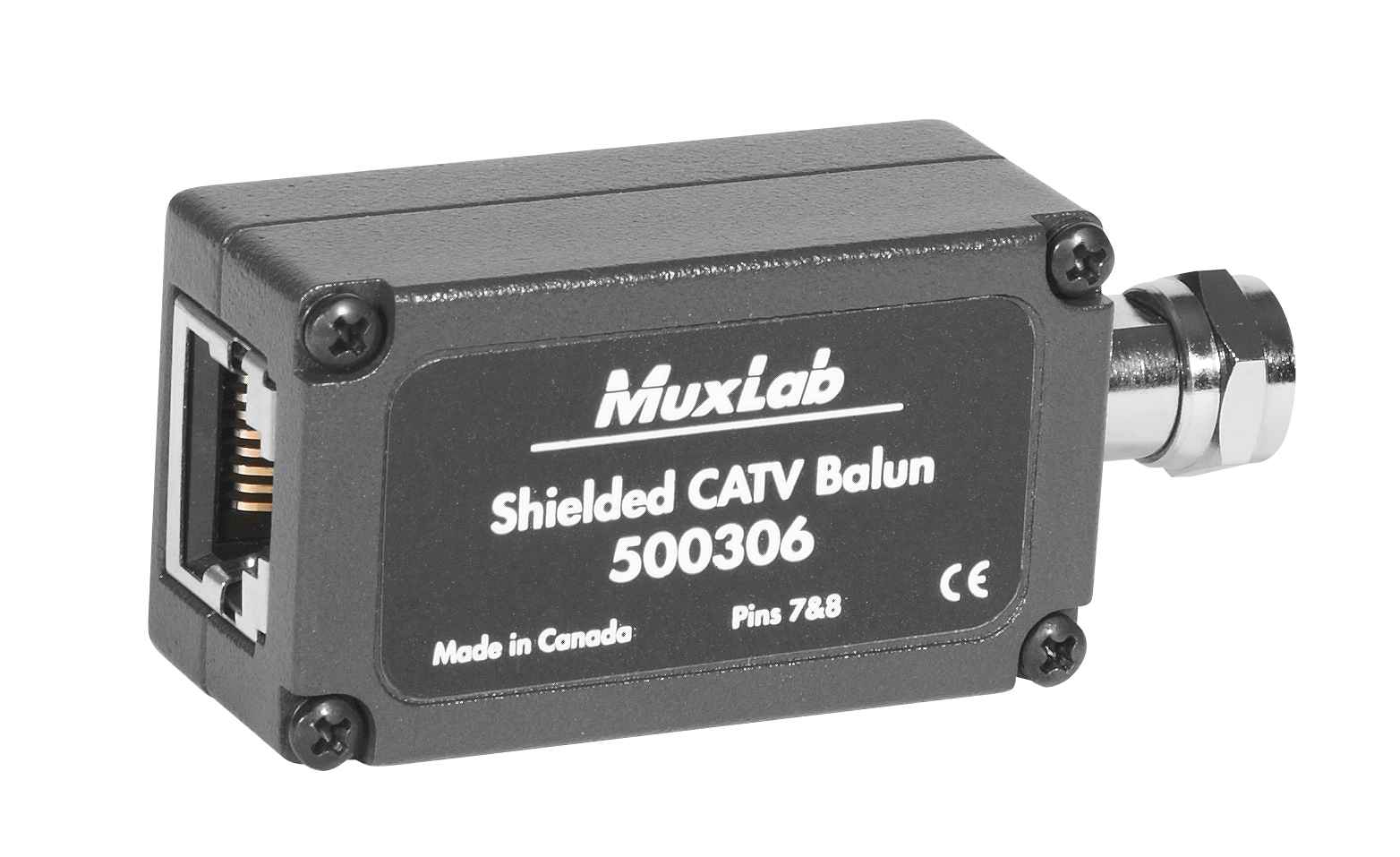

MuxLab 500306 Shielded CATV Balun

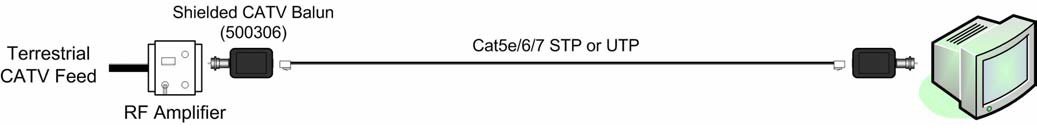

The 500306 replaces RG6 coax with Cat5e/6/7 STP or UTP in a terrestrial RF environment, at bandwidths up to 900 MHz including digital cable and broadband internet. The cast aluminium enclosure gives it far better EMI and RFI shielding than a plastic-bodied balun.

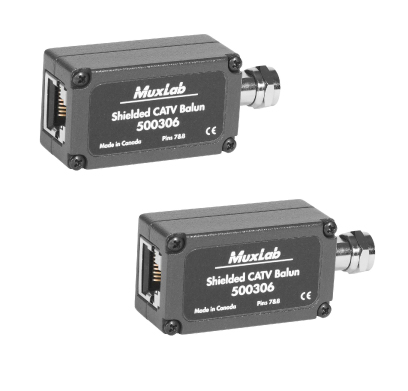

With shielded twisted pair the connection keeps egress low, which matters in buildings sharing conduit with sensitive equipment. The body is shaped to fit side by side on most RF splitters, so a multi-way split terminates neatly. Used in pairs; the 2-Pack covers one full link.

Standard	Private and public broadband CATV, VHF and FM networks
3dB bandwidth	5 MHz to 900 MHz
Video Channels Supported	CATV 2-142, VHF channels 2-13, FM broadcast band
Maximum distance	Up to 100m (330ft) via Cat 5 UTP depending on channel frequency and input power. Maximum 100m at CATV Channel 2. May require tilt amplifiers at higher frequencies
Connector - Input	"F" connector - male
Connector - Output	RJ45S - female
Cable - UTP	24-AWG or lower solid copper twisted pair
Cable - Coax	Impedance: 75-ohms at 1MHz (RG6)
