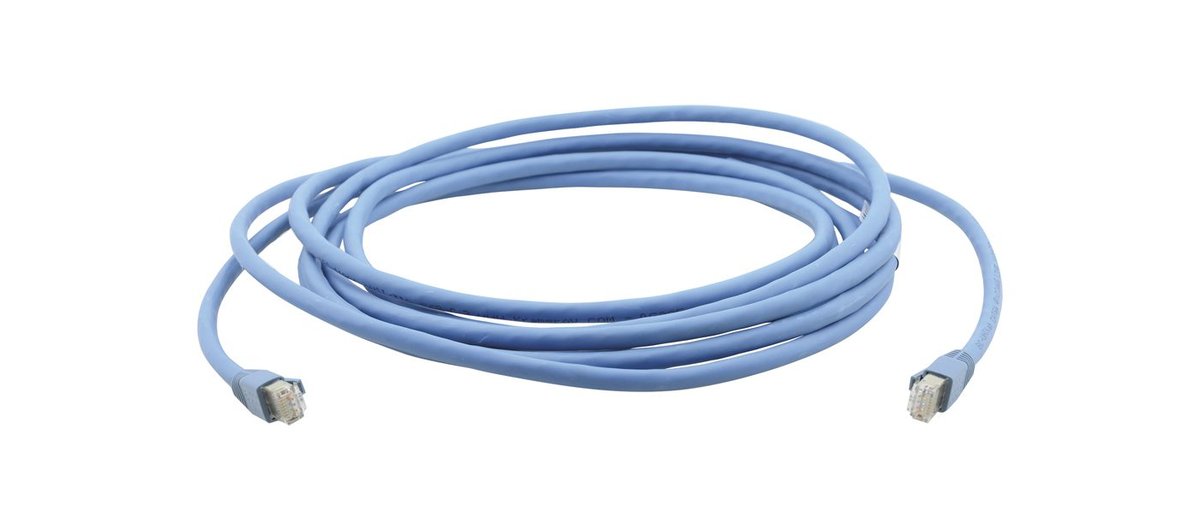

Name: Kramer C-UNIKAT CAT6A U/FTP Video & LAN Cable Assembly
Brand: Kramer
SKU: C-UNIKat-2
Availability: InStock

Kramer's C-UNIKAT cable is a unified CAT6a cable that handles all the latest technology signals. Over four individually screened twisted pairs, this U/FTP CAT6a cable runs Kramer's DGKat technology, 4K HDBaseT technology or LAN applications and ensures optimum signal performance. Quality Construction - 4 shielded twisted pairs (U/FTP) of 23AWG solid copper conductors are cabled together in an unshielded outer jacket. Optimized for Kramer Hardware - Use with any of Kramer's wide range of twisted pair digital transmitter-receiver sets (DGKat and HDBaseT). High-Quality Shielded RJ-45 Connectors - 50u gold plated contacts. Varied Selection of Length - 1.8 to 100m (6-328ft).

Conductors	4 x 2 x 23AWG, annealed copper
Outer Diameter	0.56+/- 0.01mm (0.022in)
Insulation Material	Skin/foam/skin HDPE
Color	Per TIA/EIA 568-B
Screening	Alu/PET per pair (Alu side out)
Drain Wire	90% tinned copper, outer diameter: 0.4 +/- 0.01mm (0.016in)
Jacket	LSHF, blue RAL5012
Maximum Pulling Tension	100N
Bending Radius	Installation 60mm (2.36in), installed 50mm (1.97in)
Thermal Characteristics	Storage/transport/installation 0 deg to 50C (32 deg to 122F), operation - 20 degto 60C (-4 deg to 140F)
Electrical	ISO/IEC 11801
Fire Performance	IEC 60332-1
Smoke Density	IEC 61034
Halogen Free	IEC 60754
Impedance	1-100MHz : 100 +/- 15ohm
Propagation Velocity	76%
Mutual Pair Capacitance	<=42pF/m
Capacitance Unbalanced Pair/Ground	<=1500pF/km
Max. Conductor DC Resistance	<79.8ohm/km
Pair Resistance Unbalance	DC <1.5%
Dielectric Strength	2.5kV DC (2s)
Insulation Resistance	>5000Mohm/km
Voltage Rating	30V
