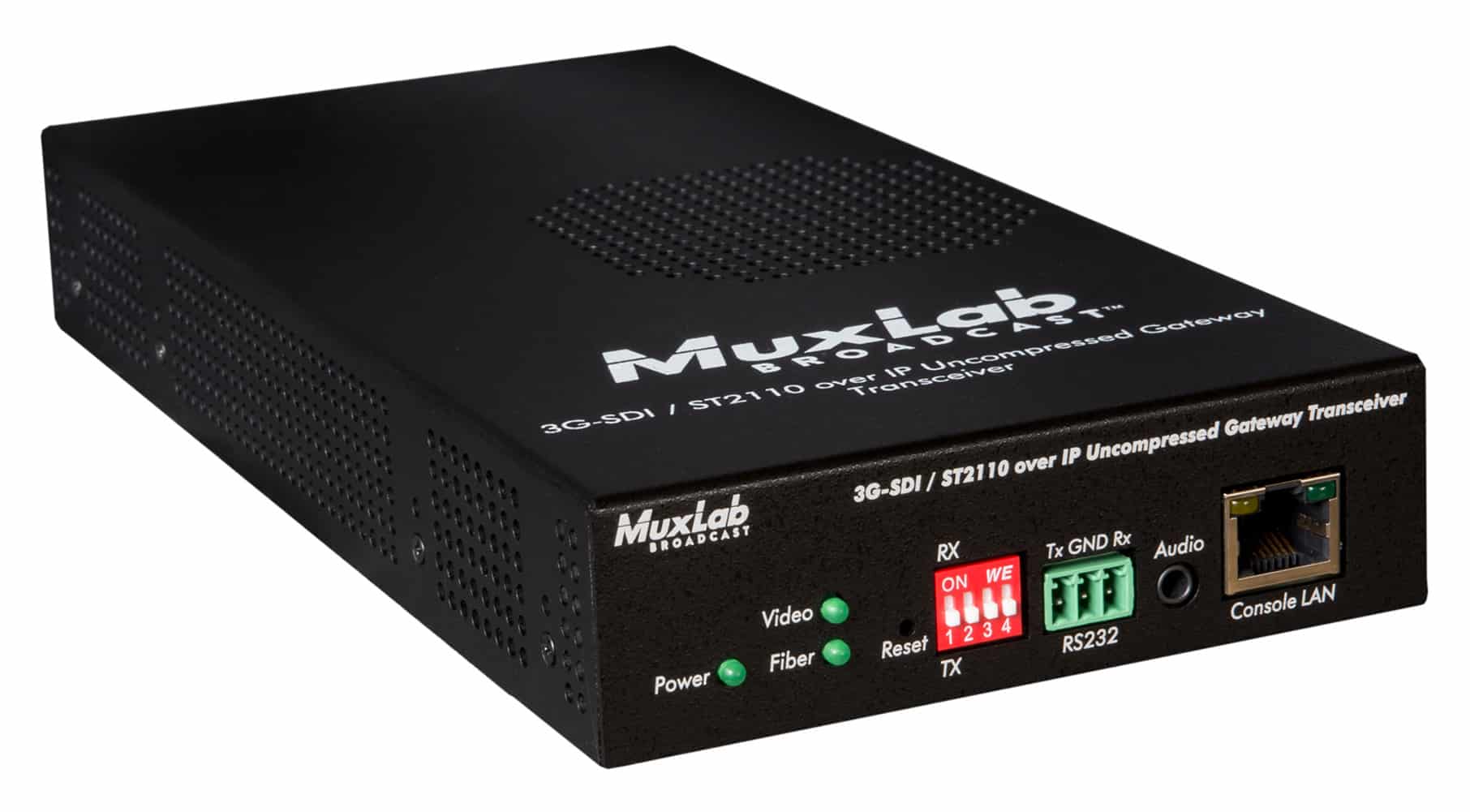

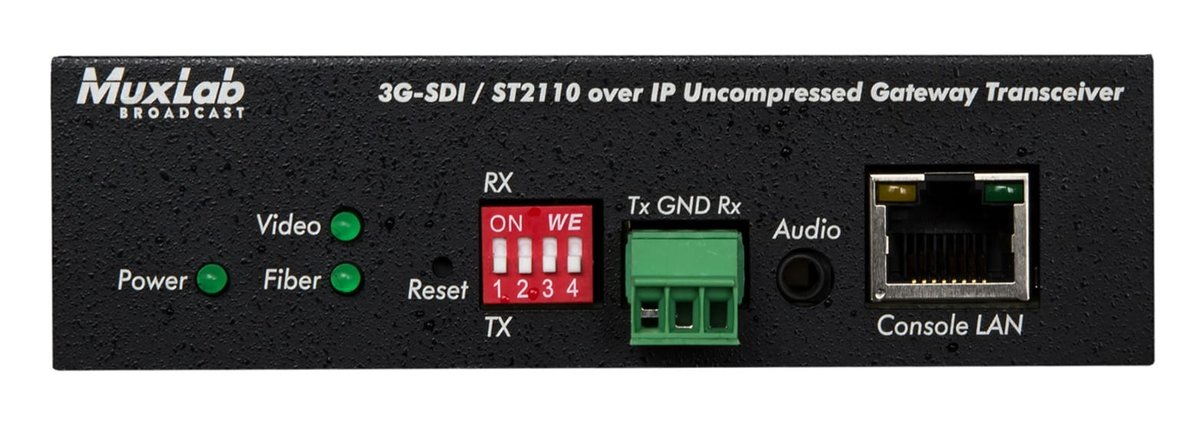

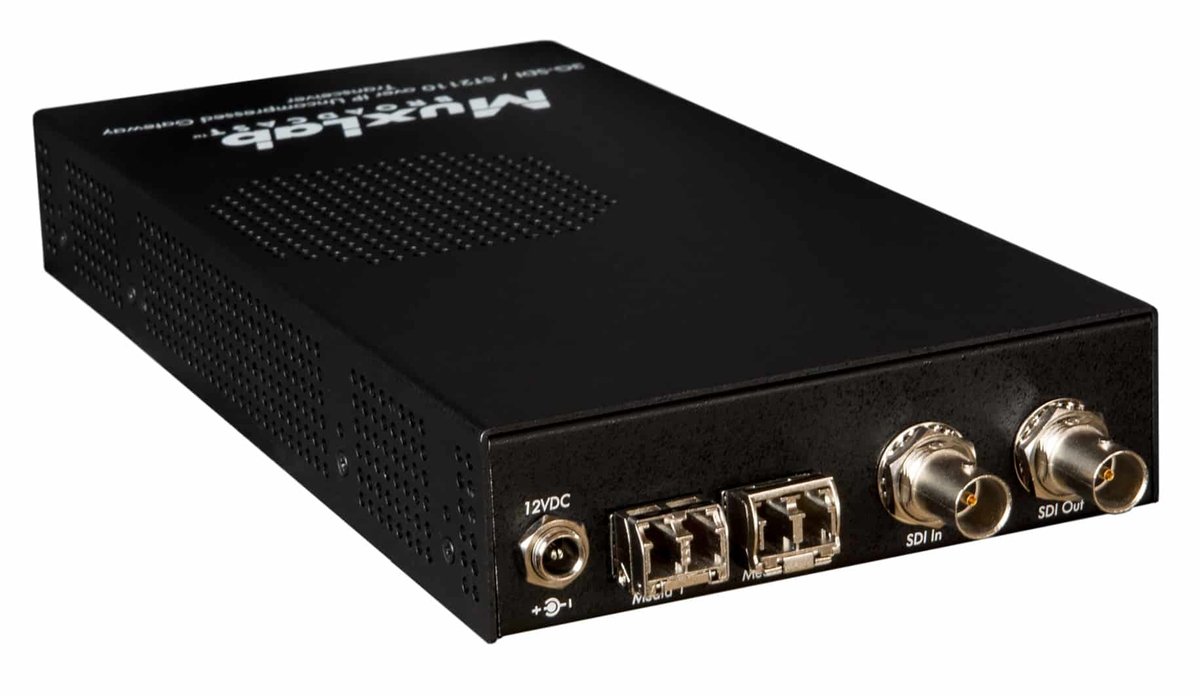

MuxLab 500767 3G-SDI/ST2110 over IP Gateway Tranceiver, MM
The 500767 supports the SMPTE ST-2110 AV over IP standard, carrying uncompressed 3G-SDI video up to 1080p at 60Hz over a 10G Ethernet network. Each unit can be configured as a transmitter or a receiver, which simplifies stocking and reconfiguration.
ST-2022-7 Class D data link redundancy is supported, so a dual-path network can survive a link failure without dropping the feed. Reach is up to 1300ft (400m) over duplex OM4 fibre with the MM version, or over structured cable with the UTP version.
- Dimensions2.87 H x 8.27 W x 9.06 L in (23.00 × 21.00 × 7.30 cm)
- Power Consumption12 Watt
- Weight0.700 kg
- StandardUp to 3G-SDI
- LatencyZero latency
| Standard | Up to 3G- |
|---|---|
| Latency | Zero latency |
| Compression | None (uncompressed) |

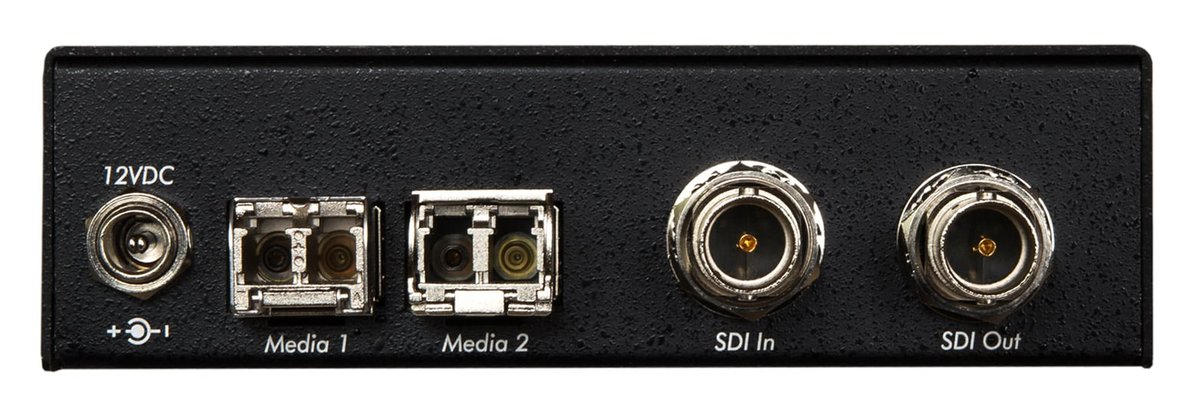

| Cable | Two (2) Dual multi-mode fiber cables for AV transmission, and Cat 5e/6 UTP for control |
| Power Consumption | 12 Watt |
| Enclosure | Aluminium |
| Temperature | Operating: 0 deg to 40 deg C Storage: -20 deg to 85 deg C |
| Humidity | Up to 95% non-condensing |
| Weight | 0.700 kg |
| Dimensions | 2.87 H x 8.27 W x 9.06 L in (23.00 × 21.00 × 7.30 cm) |
SDISerial Digital Interface. The coaxial video connection used in broadcast. It carries uncompressed video and embedded audio over long cable runs.
