MuxLab 500514 HDMI 2.1 48Gbps Audio De-embedder

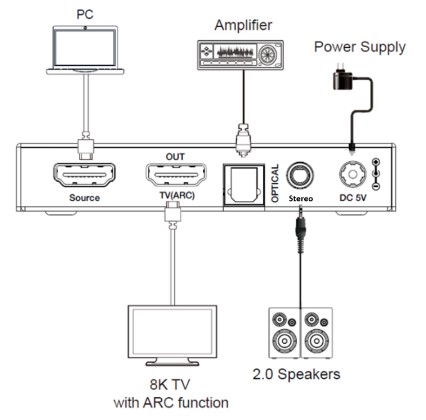

The 500514 sits inline on an HDMI 2.1 run and pulls the audio off to SPDIF digital or stereo L/R analog outputs, while passing the full 48Gbps video signal through untouched, so an 8K or 4K/120 source can still feed a separate audio system.

Every current HDR format and the full home-theater audio codec list pass through the video side, and CEC lets the source respond to commands issued from the display end of the chain, which keeps a single remote in charge of the whole signal path.

HDMI Compliance	HDMI 2.1 and HDCP 2.3 compliant
Signal Format	HDMI 2.1 protocols: VRR, ALLM, QMS, QFT, SBTM
Resolution	Up to 8K/60Hz 4:2:0 12-bit; 4K/120Hz 4:4:4 12-bit
Bandwidth	48Gbps FRL and 18Gbps TMDS
HDR	HDR10, HDR10+, Dolby Vision, HLG pass-through
Audio	LPCM 7.1CH, Dolby TrueHD, Atmos, DTS-HD Master, DTS:X
Output	SPDIF digital and stereo L/R analog audio outputs
Control	CEC support from output device to input source
