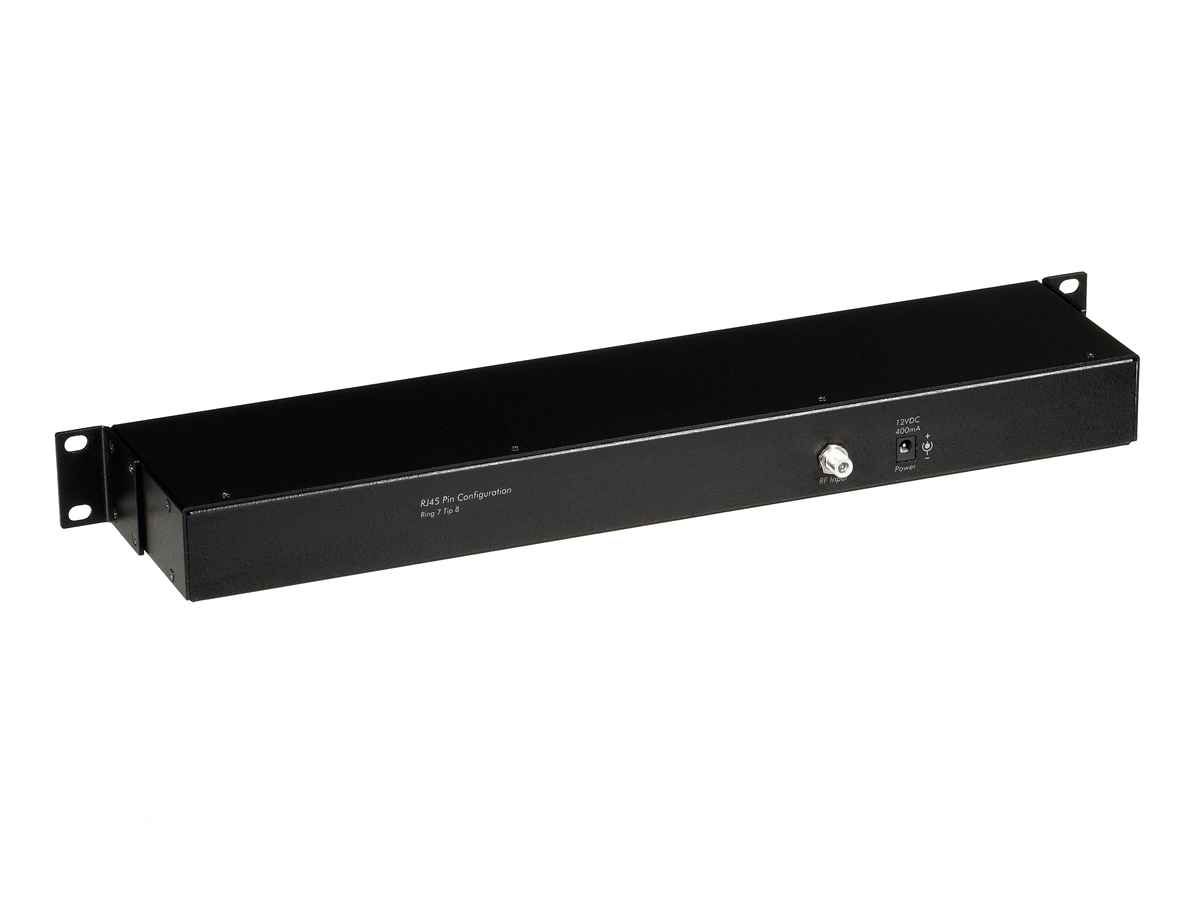

MuxLab 500303 CATV Hub - 16 Ports, 110V

The 500303 distributes a terrestrial broadband RF video feed to sixteen receivers over Cat5 unshielded twisted pair. Bandwidth is 900 MHz, and the built-in RF amplifier makes up the loss of a sixteen-way split. Transmission is bi-directional, so cable modem return paths keep working.

It pairs with MuxLab's passive CATV Balun (500302) or Shielded CATV Balun (500306) at each outlet. Centralising RF distribution on structured cabling turns a moves-and-changes job into patching at the rack rather than a coax pull through the ceiling.

Standard	Broadband CATV, VHF, FM, broadband Internet, digital cable. Does not support satelite RF
Signal	Gain - Forward path (S21) 55-450 MHz: > 12 dB 450-900 MHz: > 10 dB 55-450 MHz: > 12 dB 450-900 MHz: > 10 dB
Frequency	Band Supported CATV: 54-900 MHz, Return Channel: 5-42MHz 8P (500300/500301) 16P (500303/500304)
Connectors	RF Input: "F" connector
Input	100-240V, ~0.5A Max, 50-60Hz
Output	+12V, 1.25A. Output Power: 15W Max. Detachable AC power cord
Cable - UTP	24 gauge or lower solid copper twisted pair wire impedance: 100 ohms at 1 MHz
Power Supply	Desktop 110-240V switching power supply
