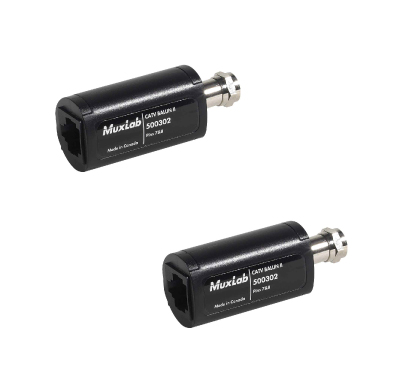

MuxLab 500302 CATV Balun II

The 500302 replaces a 75-ohm coax drop with a single pair of Cat5 UTP for CATV, VHF, and FM signals. Bandwidth reaches 900 MHz with low insertion loss, which covers the analog channel plan, digital cable, and broadband internet return traffic.

Used in pairs, it lets RF equipment terminate on any convenient modular wall outlet in a structured cabling system, so a set-top box or cable modem can be moved without pulling new coax. The body is small enough to sit alongside an RF splitter. The 2-Pack ships both ends of one link.

Standard	Private and public broadband CATV, VHF and FM networks
3dB bandwidth	5 MHz to 900 MHz
Video Channels Supported	CATV 2-142, VHF channels 2-13, FM broadcast band
Maximum distance	Up to 100m (330ft) via Cat 5 UTP depending on channel frequency and input power. Maximum 100m at CATV Channel 2. May require tilt amplifiers at higher frequencies
Connector - Input	"F" connector - male
Connector - Output	RJ45 - female
Cable - Coax	Impedance: 75-ohms at 1MHz (RG6)
Dimensions	2.5" x 1" diameter (6.35 x 2.54 cm diameter)
