MuxLab 500041 VGA Wall Balun II

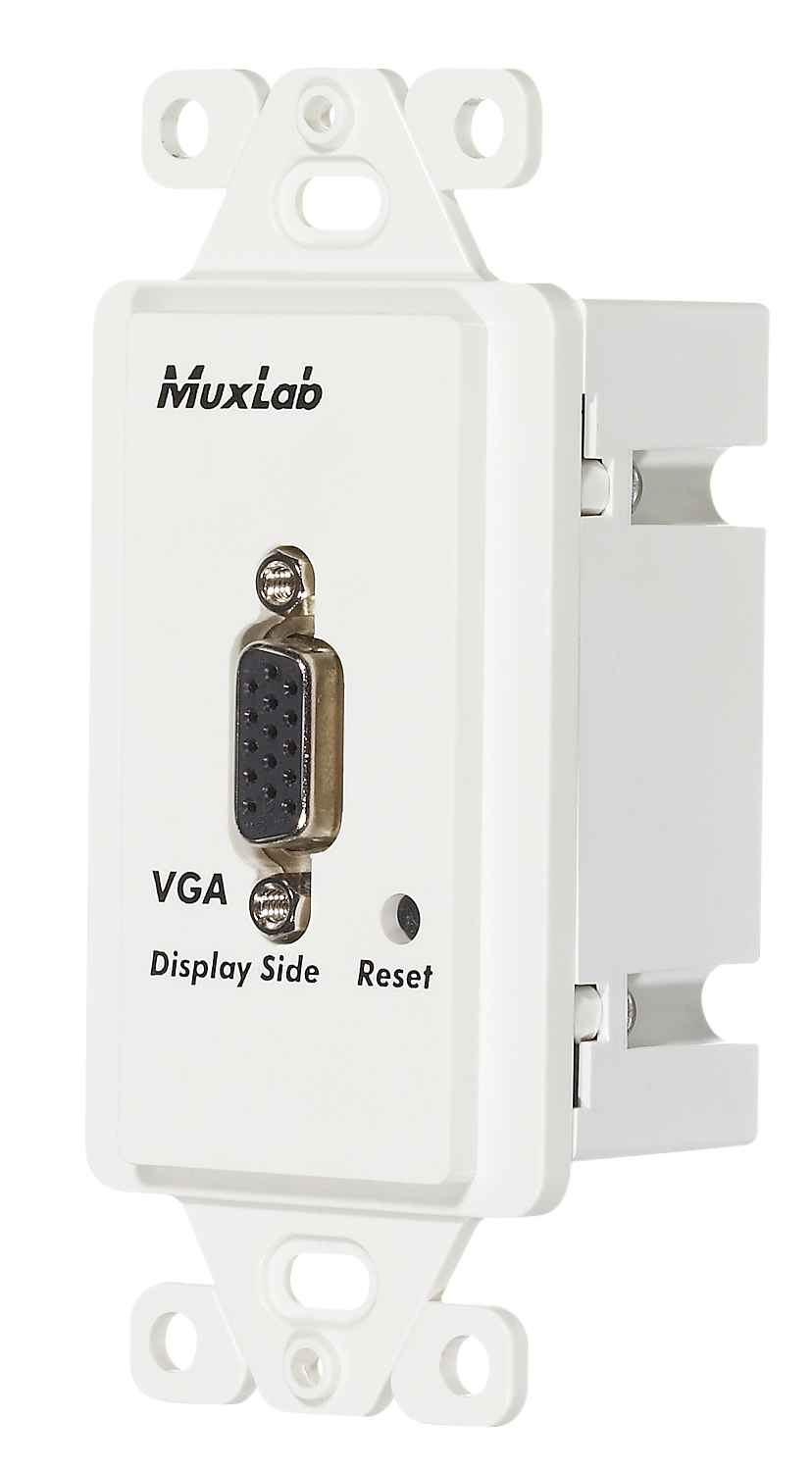

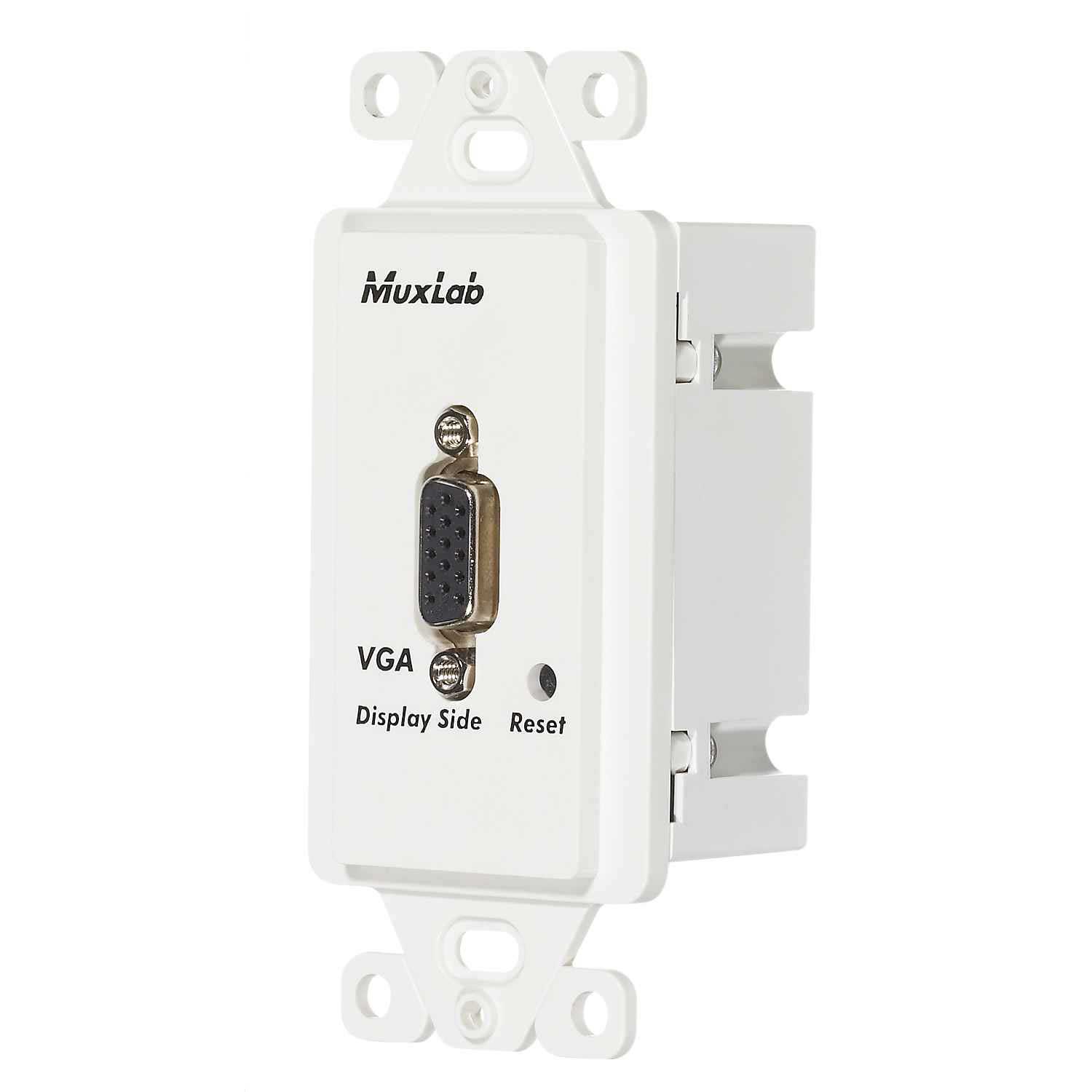

The 500041-WP is the wall-plate version of the VGA Balun II, terminating an analog RGB run in a Decora-compatible faceplate rather than a dongle behind the display. Reach is up to 350ft (107m) over Cat5e/6 at 800 x 600.

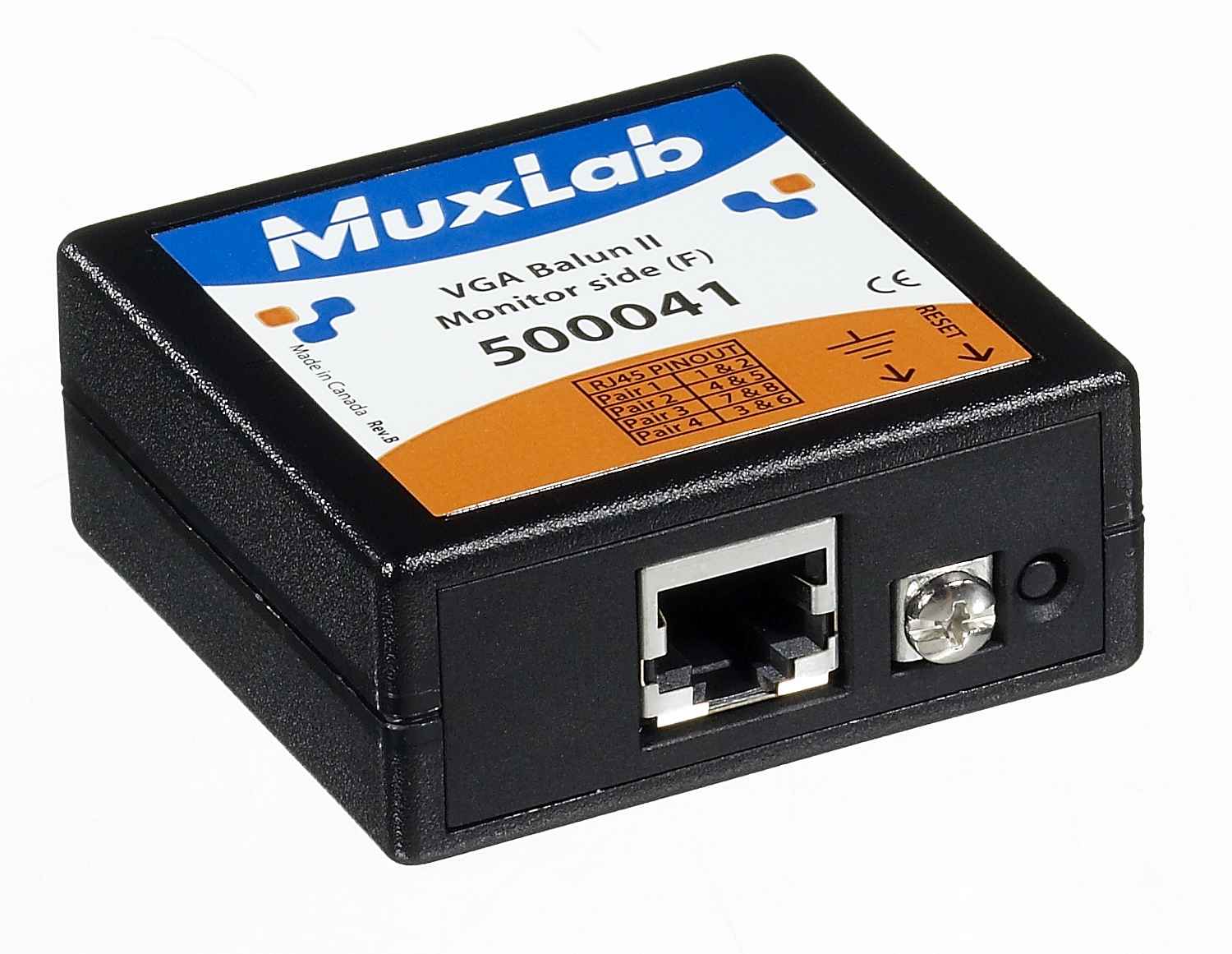

It pairs with the 500043-WP-US at the other end, or with the inline 500041 and 500042 units where only one end needs a plate. Some sync-sensitive displays require the reset button after power-up. DDC handshaking is not supported, and it is not compatible with the 500010, 500011, or 500014.

Standard	VGA. VESA VP&D 1.0, VIP ver 2.0
Bandwidth	DC to 60 MHz
Max. Distance	via Cat 5E/6 UTP/STP Cable
Connectors	DB15 HD Receptacle, RJ45 Shielded
Input	Signals Video: 1.1 Vp-p H &V sync: TTL standard. 300 kHz max. bandwidth
Dimensions	4.1" (104 mm) x 1.8" (45.7 mm) x 1.44" (36.6 mm). Choose 1.6" (40 mm) deep back box to allow for Cat 5E/6 wiring connection
Weight	4.1 oz (115 g)
Enclosure	ABS fire retardant plastic, Color white, Finish glossy
