MuxLab 500087 Digital Audio Standards Converter

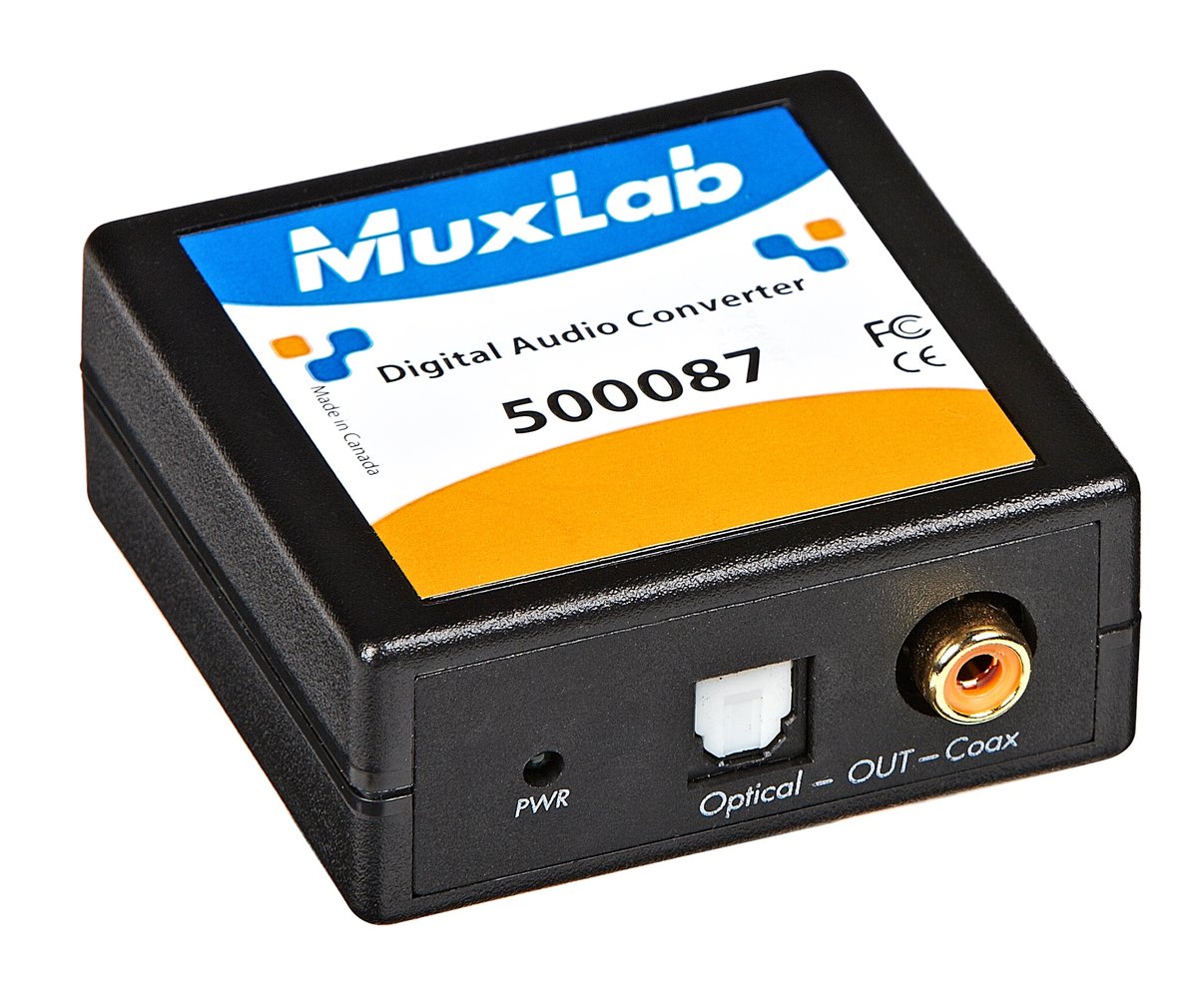

The 500087 converts optical TOSlink to coaxial S/PDIF and coaxial S/PDIF to optical TOSlink, whichever direction the install needs. Both outputs are active regardless of which input is in use, so one unit can feed two downstream devices.

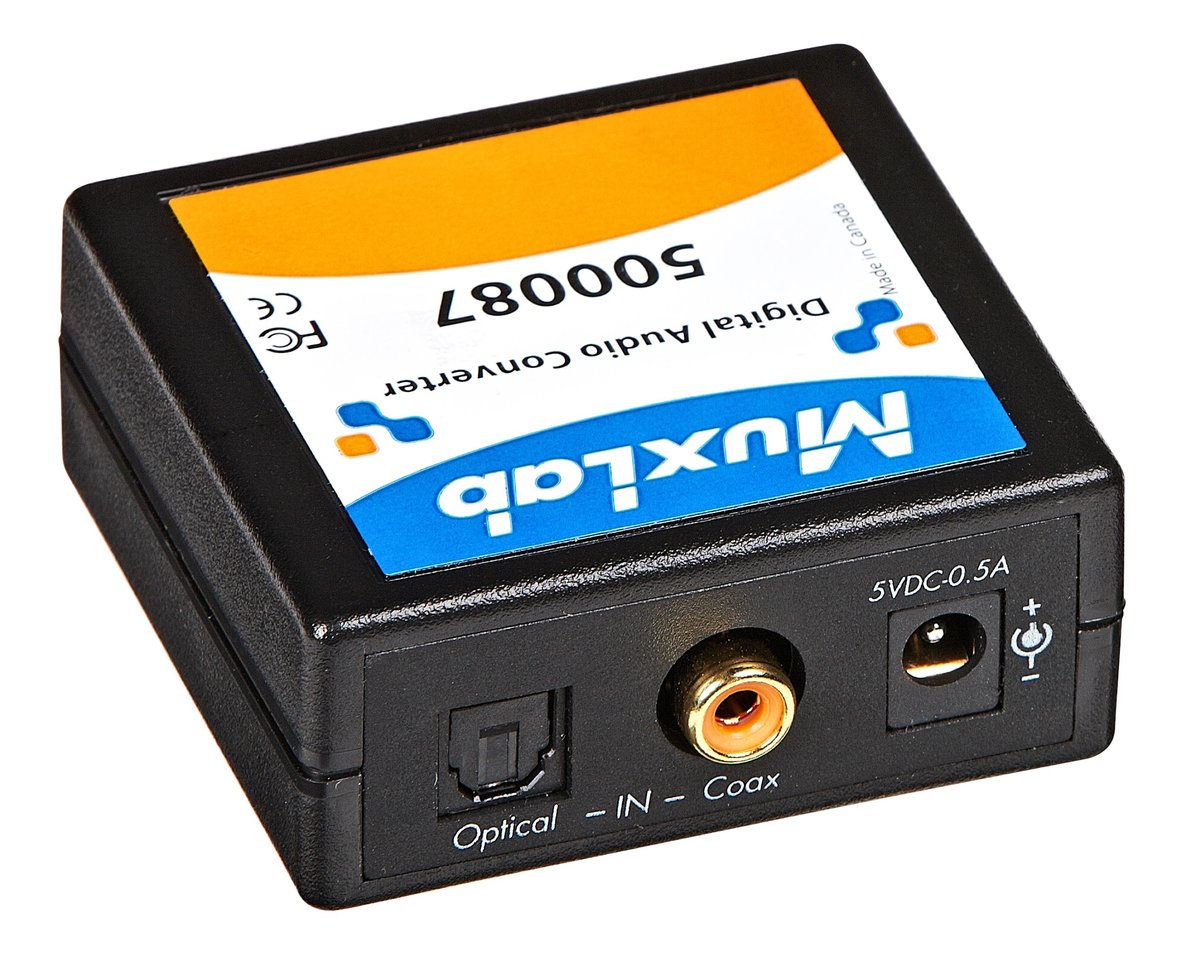

It passes two channels of uncompressed lossless PCM or a compressed 5.1/7.1 bitstream, at sample rates up to 96kHz and 24-bit. Inputs are one digital coax RCA and one optical TOSlink. It is the simple fix when a source and an amplifier disagree only about connector type.

Standard	Digital Audio Standard Supported LPCM, Dolby Digital 5.1, DTS, and Dolby True HD
Connectors	RCA, TOSLINK, POWER, RJ45 on each unit
Input	/ Output signal S/PDIF coax cable or TOSLINK optic cable Data transmission rate Up to 6 Mbit/s
Power	requirement 1W max, 5V DC S/PDIF spec Coax 75 ohm with RCA connector, level: 500mVp-p into 75 ohm TOSLINK spec Plastic optic cable with EIAJ/JEITA RC-5720C connector
Enclosure	ABS UL94HB fire retardant plastic
Temperature	Operating: -40 deg to 85 deg C (-40 deg to 185 deg F)
Humidity	Maximum 95% (non-condensing)
Dimensions	1.97 H x 4.33 W x 5.39 L in (13.70 x 11.00 x 5.00 cm)
Weight	0.450 kg
