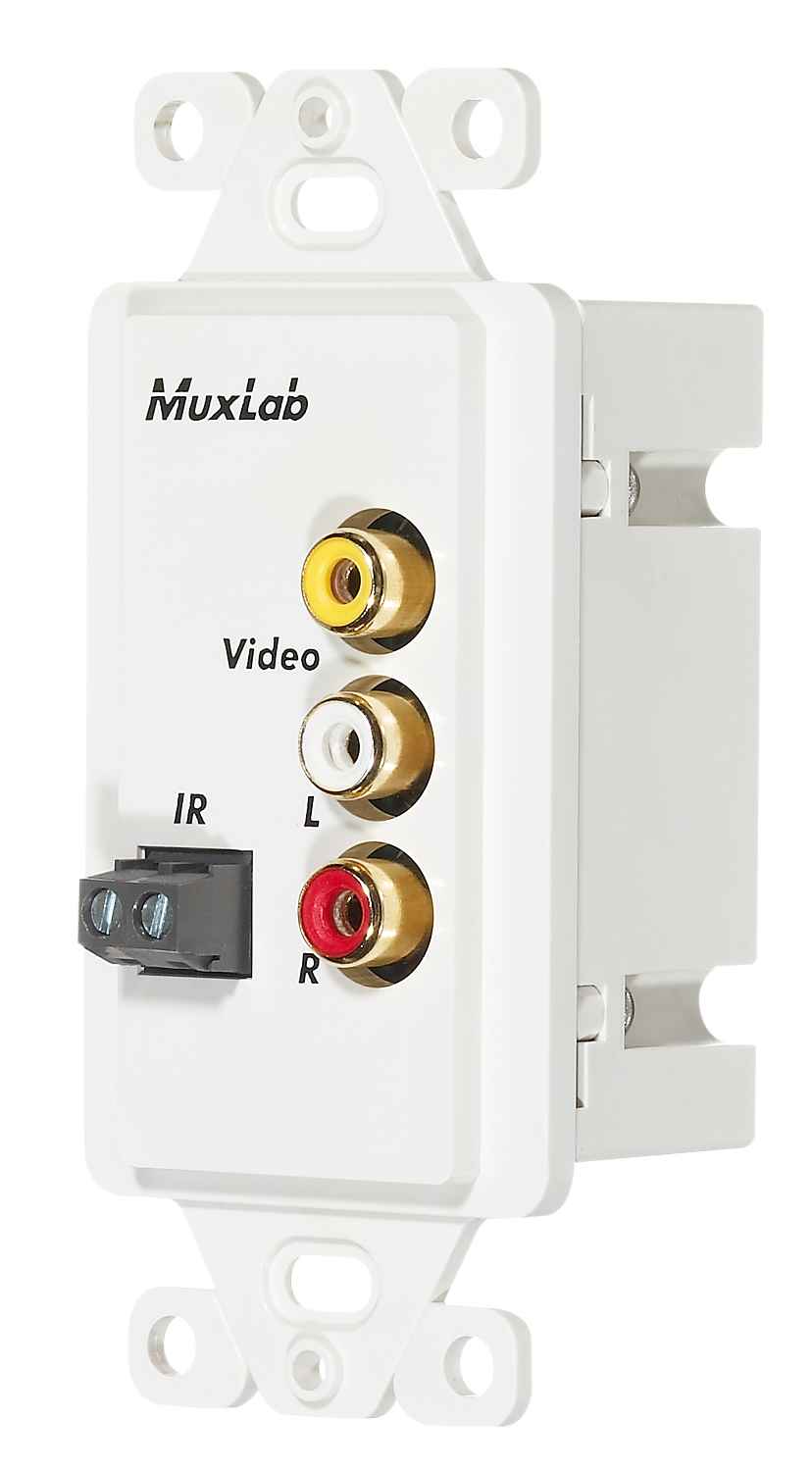

MuxLab 500049 Stereo AV/IR Pass-Thru Balun, F

The 500049 puts three things on a single Cat5e/6 run: one composite video channel out to 2,200ft (670m), one stereo audio channel out to 3,250ft (990m), and a two-wire IR emitter feed on the fourth pair so the far-end source can still be controlled.

Audio bandwidth is 20Hz to 20kHz for full-range music. This version uses female RCA sockets so you can bring your own patch leads, and the built-in color-coded leads keep the terminations unambiguous. Used in pairs, one at each end of the run.

Standard	Composite video (NTSC, PAL, SECAM). Line level analog audio. IR remote
Bandwidth	DC to 6 MHz 20 Hz to 20 KHz
Cable - UTP	24AWG or lower solid copper twisted pair wire
Dimensions	500048: 2.40" x 2.25" x 1.00" (6.1 x 5.7 x 2.54 cm) plus 6" (15.24cm) cable leads for video and stereo audio 500049 : 2.40" x 2.25" x 1.00" (6.1 x 5.7 x 2.54 cm)
Weight	3.1 oz (89 gms)
Enclosure	Fire retardant plastic
Impedance	75 ohms 600 ohms min. Max. Input 1.1Vp-p 1.1Vp-p
Common Mode Rejection	Greater than 40 dB over the frequency range N/A
