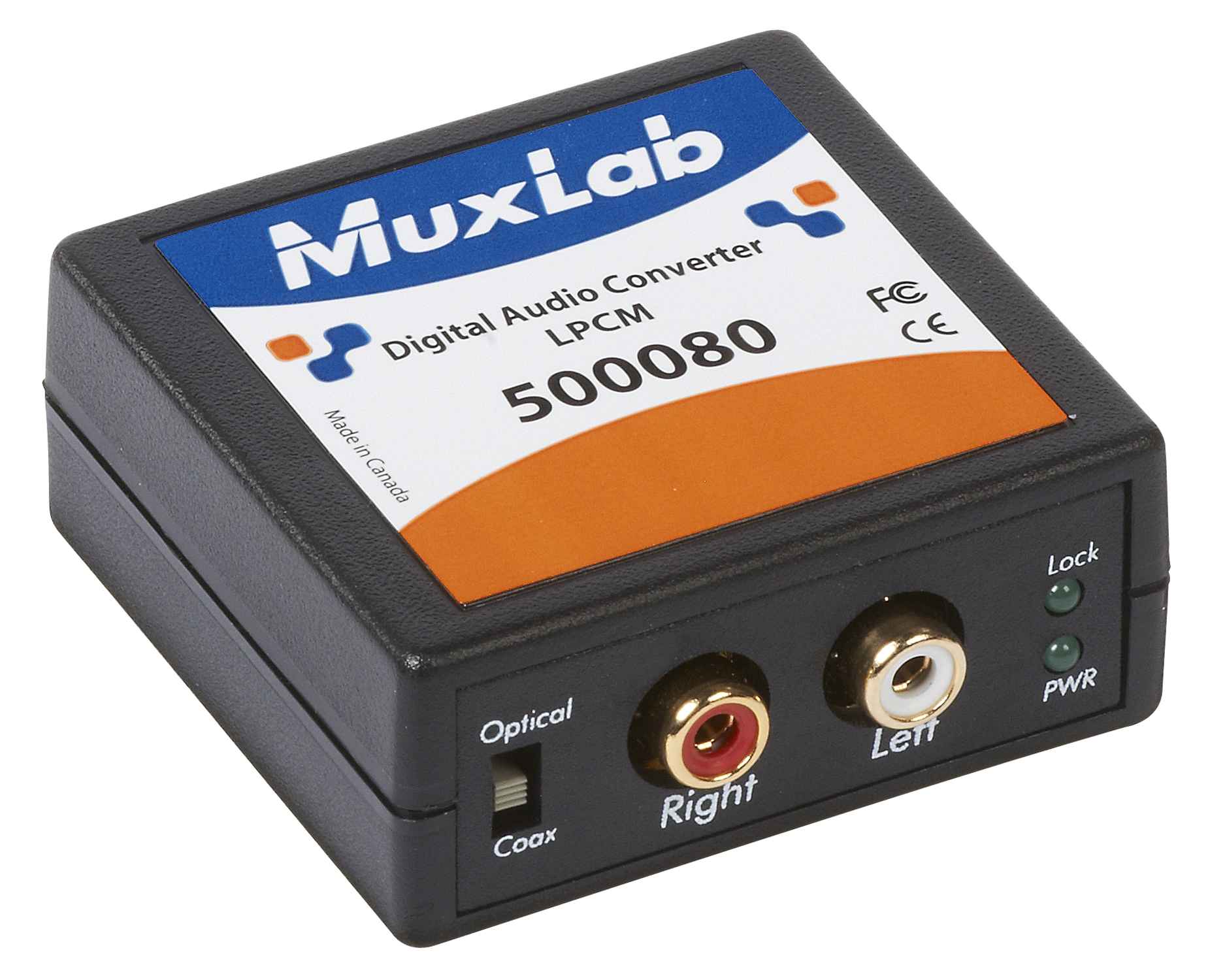

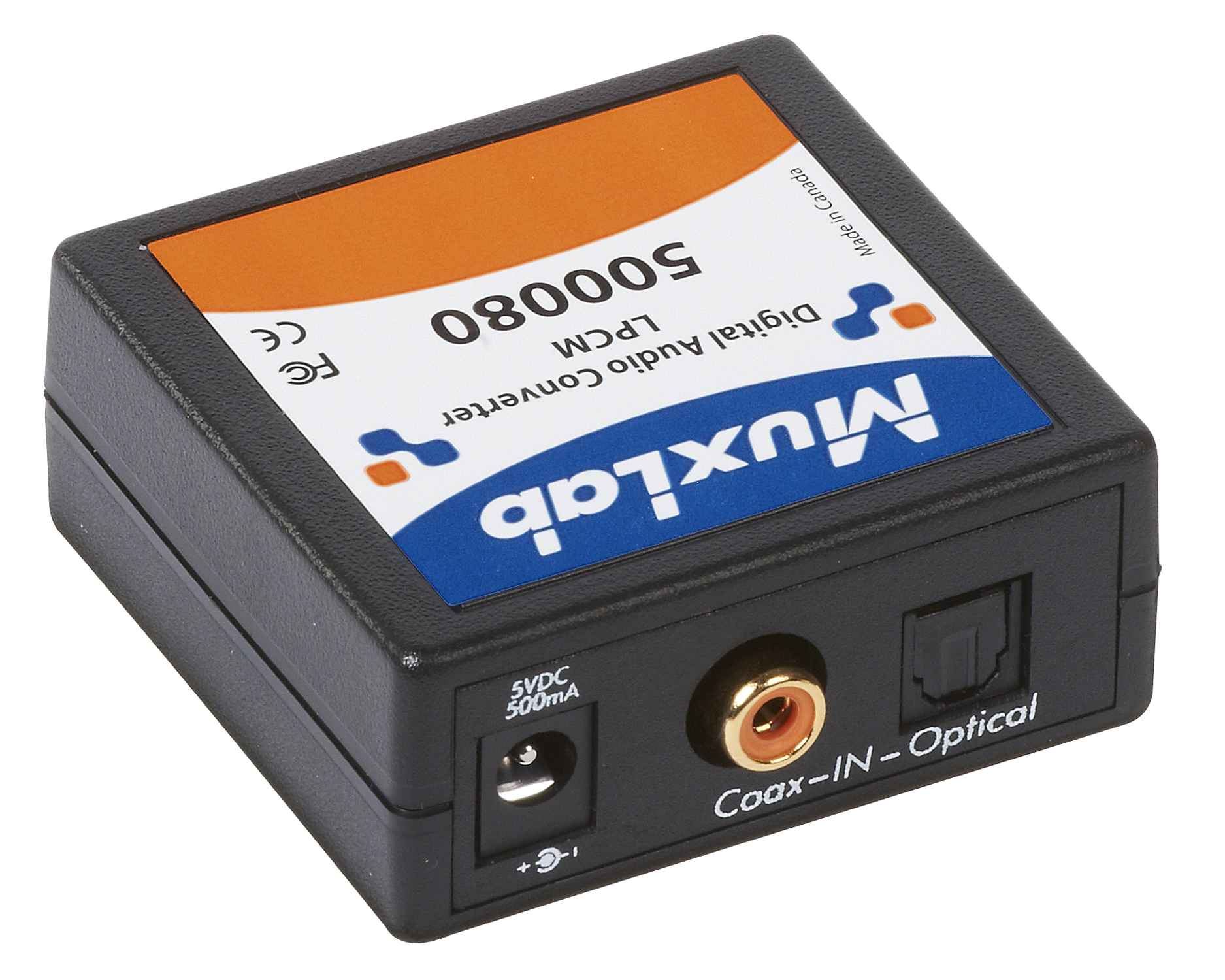

MuxLab 500080 Digital Audio Converter (DAC)

The 500080 takes one LPCM-encoded digital audio feed, from either a coaxial S/PDIF or an optical TOSlink input, and converts it to a standard left and right analog RCA output. That gets a Blu-ray player, games console, or CD player with digital-only outputs into an amplifier or TV that expects analog.

Sample rate is supported to 96kHz at 24-bit on both channels. A switch on the unit selects between the S/PDIF and TOSlink inputs, and a 1m optical cable is included. For Dolby Digital and DTS sources that need decoding rather than straight conversion, use the 500088.

Standard	Digital Audio, LPCM
Signal Format	2 channel LPCM (Linear Pulse Code Modulation)
Bit Depth	24 bit S/PDIF bitstream on right and left channels
Connectors	One (1) Coaxial connector One (1) TOSLink Connector. Two (2) RCA
Power Supply	One (1) 110-240V/5VDC power supplies with interchangeable blades
Power Consumption	0.75 Watt
Dimensions	2.4" x 2.25" x 1.0" (6.1 x 5.5 x 2.5 cm)
Weight	1.0 lb (0.45 kg)
