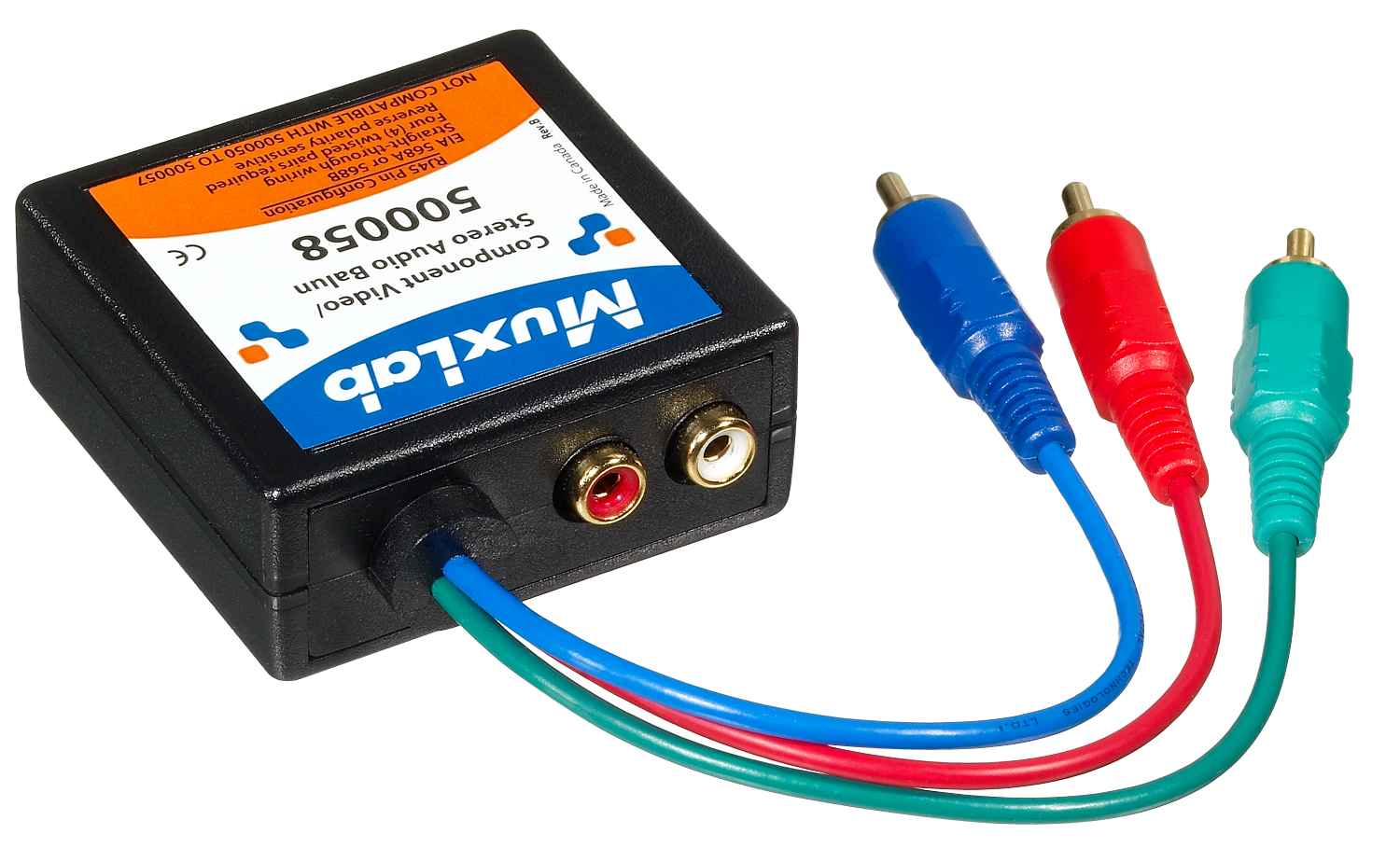

MuxLab 500058 Component Video/Stereo Audio Balun 2-Pack

The 500058 carries one component video signal (YPbPr or RGB) plus a genuine left and right stereo channel over a single Cat5e/6 cable. It supports 480i/p to 1,000ft (305m) and 720p or 1080i/p to 500ft (152m).

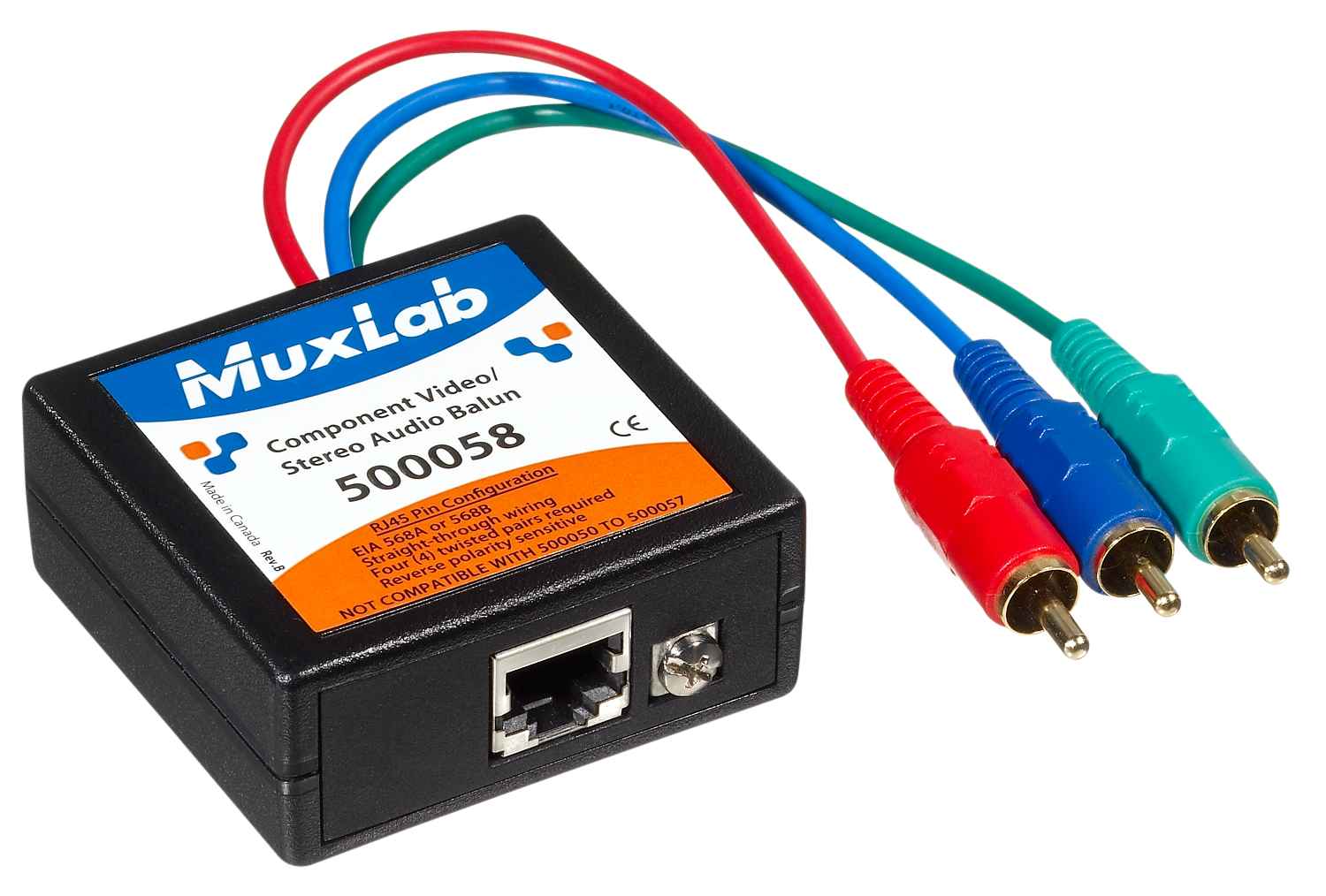

Ground Loop Coupling is built in to suppress the hum bars that show up when source and display sit on different electrical grounds. Terminations use a modular shielded RJ45 connector. This 2-Pack ships the two units needed for one complete link.

Standard	Component Video (YPbPr), RGB Video (sync on green). 480i/p, 720p, 1080i/p. Stereo line level analog audio
Bandwidth	Video: DC-60 MHz, 3 dB roll off. Analog audio: 20 Hz to 20 KHz
Cable - Coax	Impedance: 75 ohms at 1 MHz
Dimensions	2.40" x 2.25" x 1.0" (6.1 x 5.7 x 2.54 cm) plus 6" (15.24cm) cable lead for video
Weight	4.4 oz/ 122 gms Regulatory FCC, CE, RoHS
Enclosure	ABS fire retardant plastic
THD	Less than 0.007% @ 1KHz
Insertion Loss	per pr (Y channel) .1 dB for 0.1 MHz. Gradually increasing to 2.5 dB over the frequency range
