MuxLab 500052 Component Video/Analog Audio Balun

The 500052 carries one component video signal (YPbPr or RGB) plus one analog audio channel over a single Category 5 twisted pair cable. It supports 480i/p, 720p, and 1080i/p, reaching 1,000ft (305m) at 480i/p and 500ft (152m) at 720p and 1080i/p.

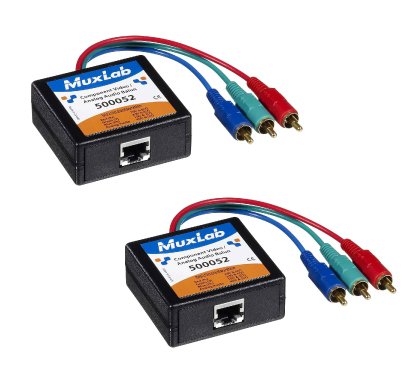

This 2-Pack includes the two units required for a complete link. Moulded color-coded RCA leads and a modular shielded RJ45 connector make the terminations straightforward, and the audio rides on the fourth twisted pair rather than a separate cable.

Standard	Component Video (YPbPr), RGB Video (sync on green). 480i/p, 720p, 1080i/p. Line level analog audio
Bandwidth	Video: 60 MHz, 3 dB roll off. Analog audio: 20 Hz to 20 KHz
Max. Distance	Colour - Cat5E/6 UTP & STP 480i/p: 1,000 ft (305m). 720p and 1080I: 500 ft (152m)
Cable - Coax	Impedance: 75 ohms at 1 MHz
Dimensions	500052: plus 6" (15.24cm) cable lead for video. 500053: 2.40" x 2.25" x 1.0" (6.1 x 5.7 x 2.54 cm)
Weight	2.9 oz (81gms) Regulatory FCC, CE, RoHS
Enclosure	ABS fire retardant plastic
Common Mode Rejection	(video) -55 dB max
