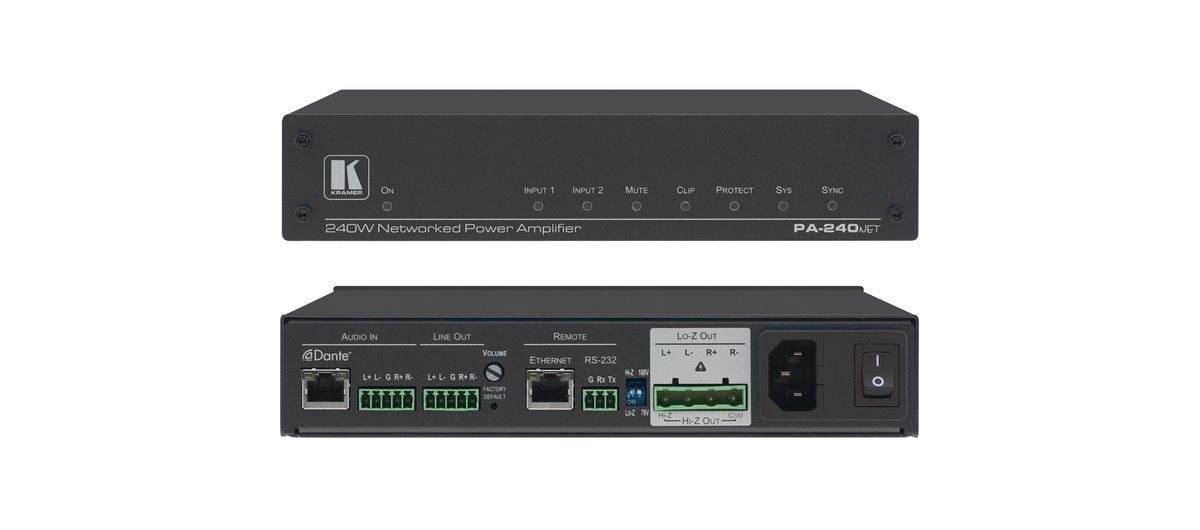

Kramer PA-240NET 240W Networked Power Amplifier

The Kramer PA-240NET is a 240W Networked Power Amplifier, sourced and specified directly from Kramer's published data sheet for this model.

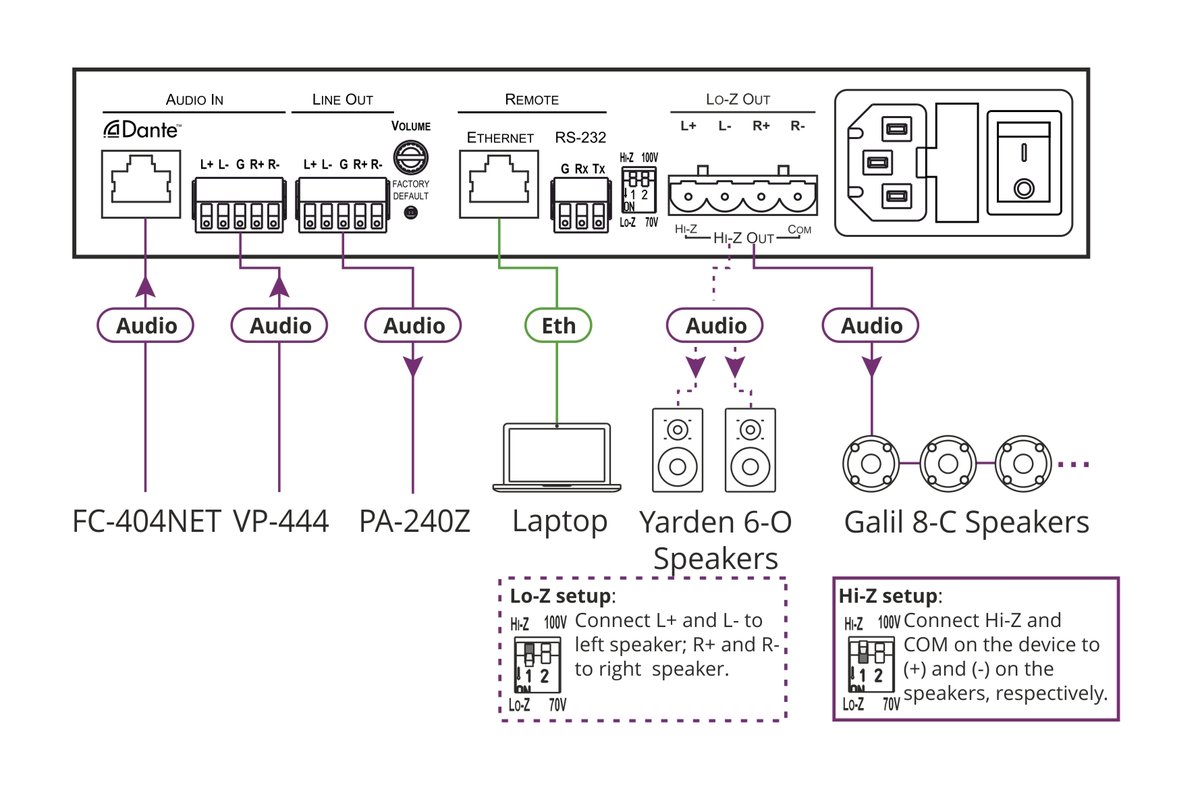

Key specifications: 2 Channels, on a Dante™ Net: On an RJ-45 connector; 1 Balanced Stereo Audio: +4dBu/10kΩ, on a 5 pin terminal block (inputs); 1 Balanced Stereo Audio: Line level, on a 5-pin terminal block; 1 Speaker: On a 4-pin large terminal block (outputs); 1 Control via IP: On an RJ-45 connector; 1 RS-232: On a 3-pin terminal block (ports); Input Sensitivity: Full power @ 0.3V (-10dBV); Output Power: 2 x 120W @ 4Ω or 8Ω, 1 x 240W @ 70V or 100V; Class: D; Maximum Voltage Gain: 26dB SE / 32dB BTL; Dynamic Range: 119dB; Frequency Response: 20Hz to 20kHz @ +/-1dB; S/N Ratio: 80dB, 20Hz - 20kHz; Audio THD + Noise: THD+N (1kHz @ 1W) 0.003 %; Audio 2nd Harmonic: 0.08% @ 75W RMS @ 4Ω 6.67kHz (amplifier). Also: Controls: Output volume attenuator, IP and RS-232 (user interface); Source: Universal mains operational voltage 85V AC - 265V AC (full power at 120V - 230V); Consumption: 265VA; Total System Efficiency: 90% (power); Operating Temperature: 0° to +40°C (32° to 104°F); Storage Temperature: -40° to +70°C (-40° to 158°F); Humidity: 10% to 90%, RHL non-condensing (environmental conditions); Safety: CE, FCC; Environmental: RoHs, WEEE (regulatory compliance (standards compliance)).
