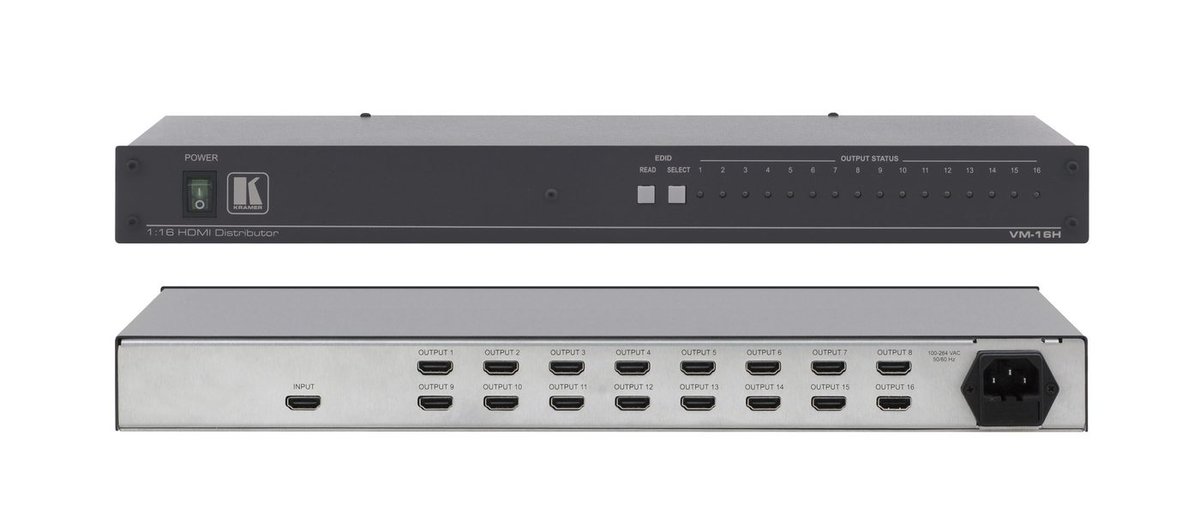

Kramer VM-16H 1:16 HDMI Distribution Amplifier

The VM-16H is a distribution amplifier for HDMI signals. It reclocks and equalizes the signal and distributes it to 16 identical outputs. Max. Data Rate - 6.75Gbps (2.25Gbps per graphic channel). HDTV Compatible. HDCP Compliant. HDMI Support - Deep Color, x.v.Color, Lip Sync, CEC. 3D Pass-Through. Kramer Equalization & re-Klocking Technology - Rebuilds the digital signal integrity to travel longer distances. EDID Pass-through - Pass-through algorithm ensures Plug and Play operation for HDMI source and display systems. Active Output LED Indicators. Worldwide Power Supply - 100-240V AC. Standard 19" Rack Mount Size - 1U. Rack "ears" included.

INPUT	HDMI Connector
OUTPUT	8/16 HDMI connectors
BANDWIDTH	6.75Gbps (2.25Gbps per graphic channel)
COMPLIANCE WITH HDMI STANDARD	Supports HDMI and HDCP
CONTROLS	SELECT and READ buttons for selecting and storing EDID information
INDICATOR LEDs	OUTPUT STATUS 1 to 8/16
OPERATING TEMPERATURE	0 deg to +40C (32 deg to 104F)
STORAGE TEMPERATURE	-40 deg to +70C (-40 deg to 158F)
