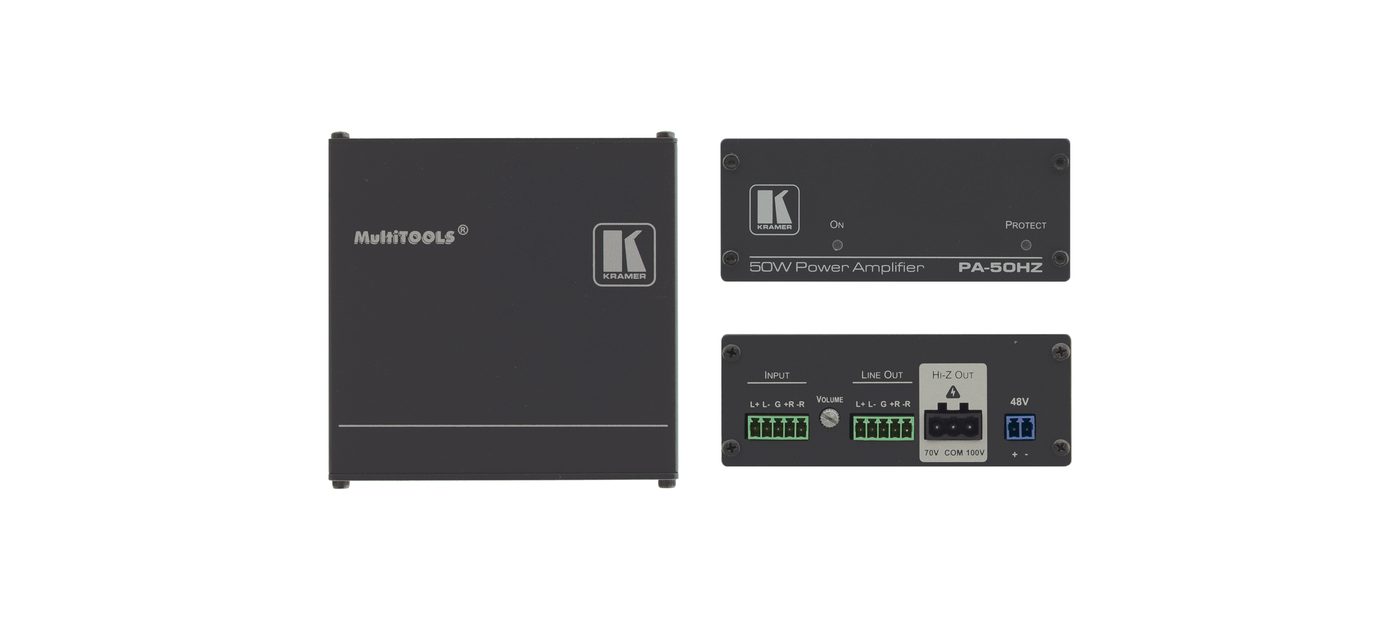

Kramer PA-50HZ Power Amplifier (50W@70V/100V)

The Kramer PA-50HZ is a power amplifier (50W@70V/100V), sourced and specified directly from Kramer's published data sheet for this model.

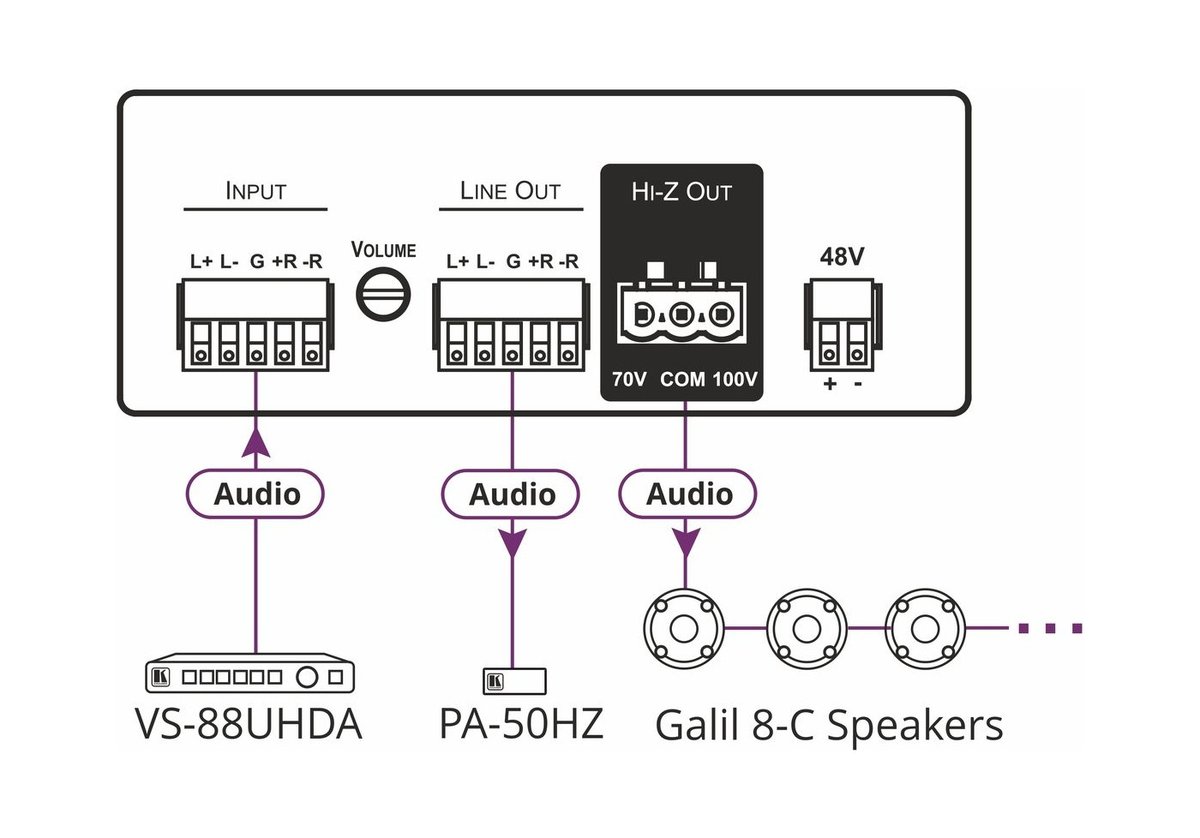

Key specifications: On a 5-pin terminal block (up to +4dBu/10k ohm) (inputs - 1 stereo balanced audio); On a 5-pin terminal block connector (up to +4dBu/600 ohm) (outputs - 1 stereo balanced line level); On a 3-pin large terminal block (outputs - 1 mono speaker). Also: Full power @1.5V (+5dBV) (input sensitivity); D (amplifier - class); 1 x 50W @ 70V or 100V (amplifier - output power); 37dB BTL (amplifier - maximum voltage gain); >120dB (amplifier - dynamic range).
