Kramer VM-216H 2x1:16 HDMI Switchable DA

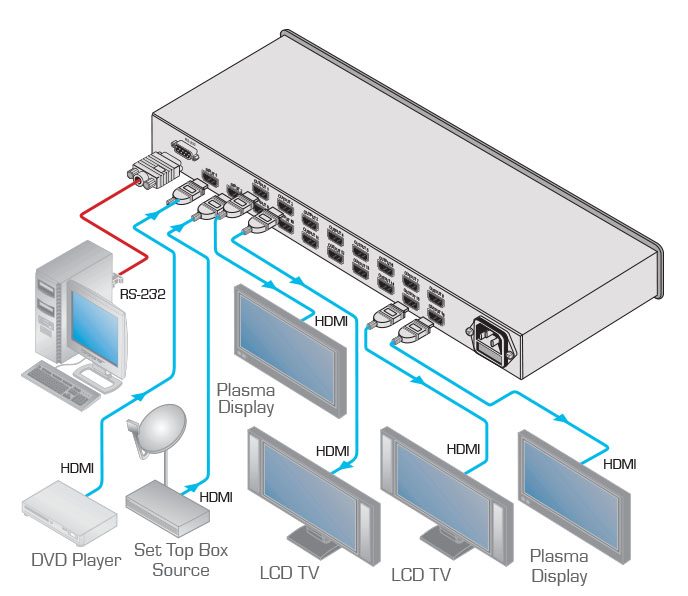

The Kramer VM-216H is a switchable HDMI distribution amplifier: it selects one of two HDMI inputs, reclocks and equalizes it, and distributes it to 8 or 16 identical outputs. It suits presentation systems, rental and staging, and any venue that shows one source on many screens.

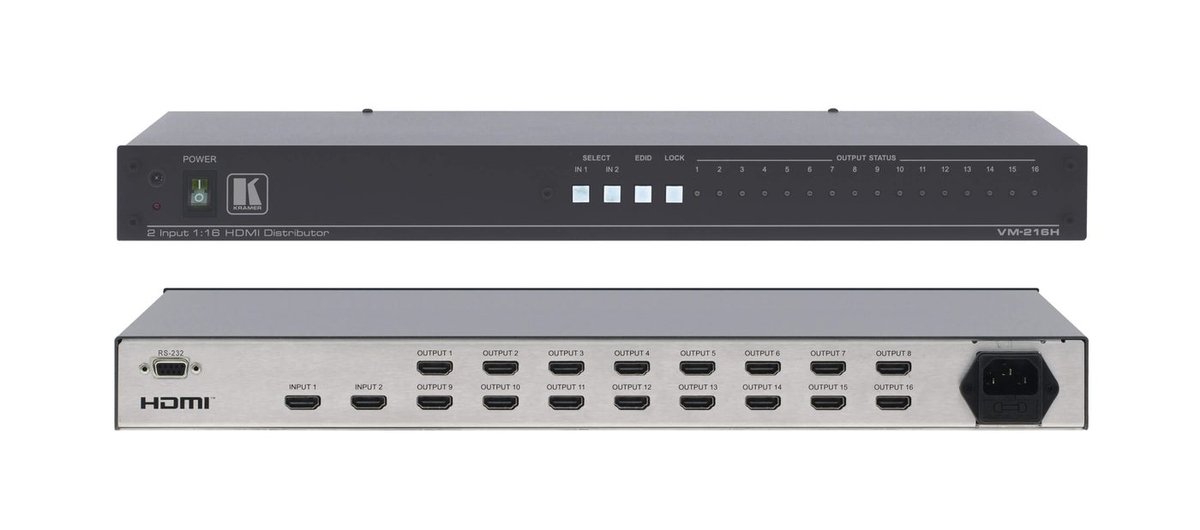

It is HDCP compliant and supports Deep Color, x.v.Color, lip sync, CEC and 3D pass-through, at up to 6.75 Gbps. Kramer's Equalization and re-Klocking rebuilds the signal for longer runs. Control is by front panel, RS-232 and IR, with output status LEDs. It is 1U, 19 inches wide, on a 100-240 V AC supply.
- Rack Size1U
- Storage Temperature–40° to +70°C (–40° to 158°F)
- Inputs2 on HDMI connectors
- Outputs16 on HDMI connectors
- Power100-240V AC, 50/60Hz, 48VA
| Inputs | 2 on connectors |
|---|---|
| Outputs | 16 on HDMI connectors |
| Bandwidth | 6.75Gbps (2.25Gbps per graphic channel) |
| Compliance With Hdmi Standard | Supports HDMI and HDCP |
| Controls | EDID, IN 1, IN 2, IR remote controller and LOCK buttons |
| INDICATOR LEDs | Output status LEDs |
| Operating Temperature | 0° to +40°C (32° to 104°F) |
| Storage Temperature | –40° to +70°C (–40° to 158°F) |
| Humidity | 10% to 90%, RHL non–condensing |
| Control | RS-232 and IR |
| Power | 100-240V AC, 50/60Hz, 48VA |
| Rack Size | 1U |

- Power cord
