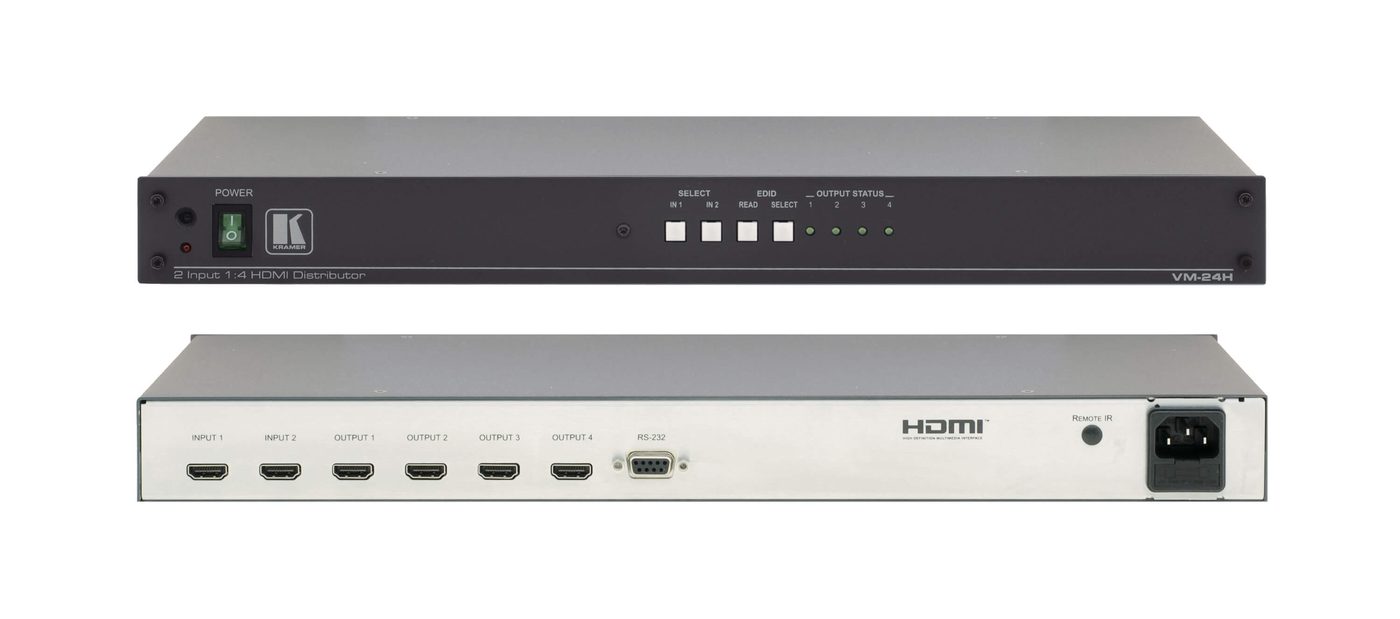

Kramer VM-24H 2x1:4 HDMI Switchable DA

The VM-24H is a distribution amplifier for HDMI signals. The unit reclocks and equalizes one of two selectable input signals and distributes it to four identical outputs. Max. Data Rate - 6.75Gbps (2.25Gbps per graphic channel). HDTV Compatible. HDCP Compliant. HDMI Support - Deep Color, x.v.Color, Lip Sync, CEC. 3D Pass-Through. EDID Pass-through - Pass-through algorithm ensures Plug and Play operation for HDMI source and display systems. Active Output LED Indicators. Control - Front panel, RS-232, IR switching. Worldwide Power Supply - 100-240V AC. Standard 19" Rack Mount Size - 1U. Rack "ears" included.

  • INPUTS2 HDMI connectors
  • OUTPUTS4 HDMI connectors
  • POWER CONSUMPTION100-240V AC, 50/60Hz, 16VA
  • BANDWIDTH6.75Gbps (2.25Gbps per graphic channel)
  • COMPLIANCE WITH HDMI STANDARDSupports HDMI and HDCP
INPUTS2 connectors
OUTPUTS4 HDMI connectors
BANDWIDTH6.75Gbps (2.25Gbps per graphic channel)
COMPLIANCE WITH HDMI STANDARDSupports HDMI and HDCP
CONTROLSEDID SELECT, EDID READ, IN 1, IN 2 buttons, RS-232, IR
INDICATOR LEDsOutput status LEDs
POWER CONSUMPTION100-240V AC, 50/60Hz, 16VA
INCLUDED ACCESSORIESPower cord, null-modem adapter, Windows-based control software
3items in the box
  • Power cord
  • Null-modem adapter
  • Windows-based control software
