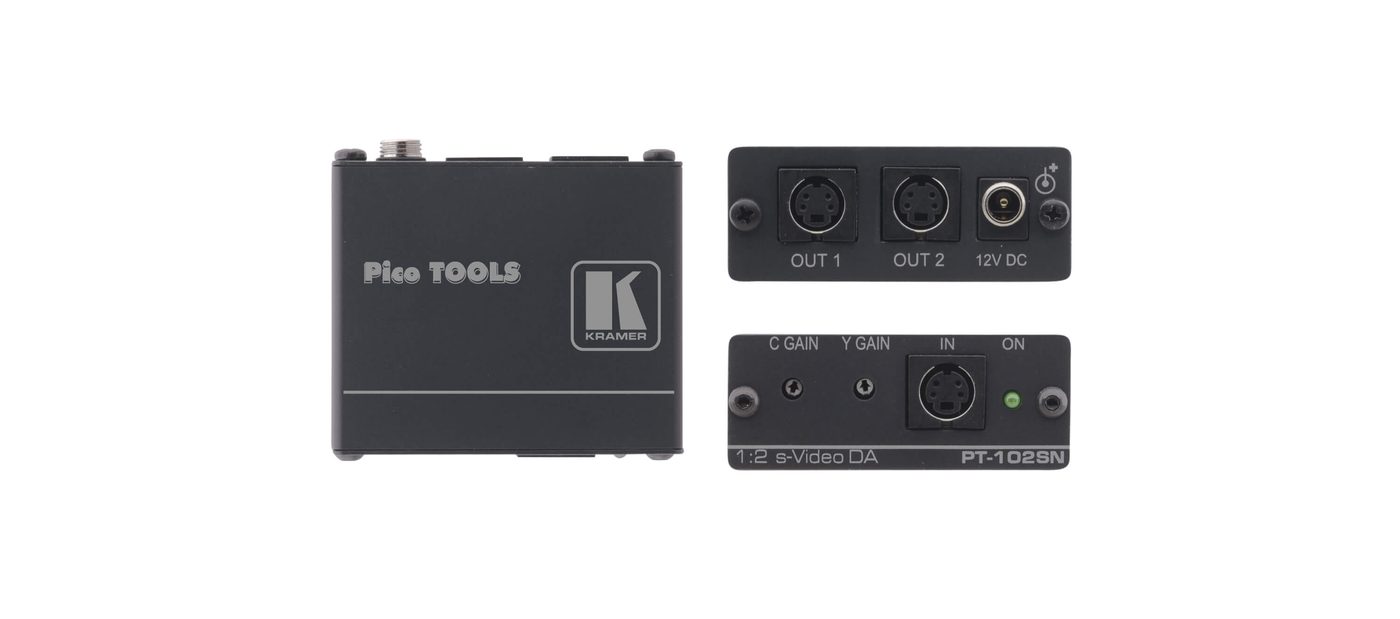

Kramer PT-102SN 1:2 s-Video Distribution Amplifier

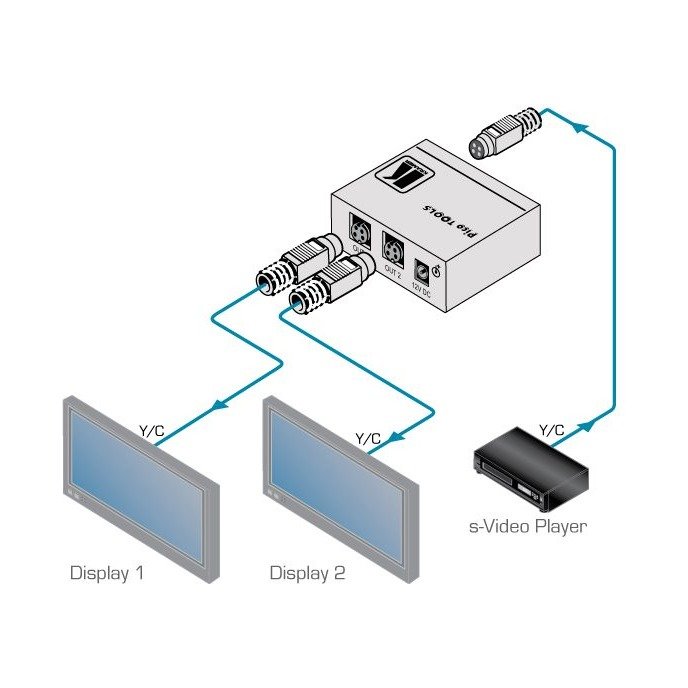

The PT-102SN is a high-performance video distribution amplifier for s-Video (Y/C) video signals. The unit takes one input, provides correct buffering and isolation, and distributes the signal to two identical outputs. Bandwidth (Y) - 150MHz (-3dB). Y & C Level (Gain) Controls. Ultra Compact Pico TOOLS - 4 units can be rack mounted side-by-side in a 1U rack space with the optional RK-4PT rack adapter.

INPUT	1 s-Video on a 4-pin connector
OUTPUTS	2 s-Video on 4-pin connectors
MAX. OUTPUT LEVEL	1.3Vpp
BANDWIDTH (-3dB)	150MHz
DIFF. GAIN	0.05%
DIFF. PHASE	0.05Deg
K-FACTOR	<0.05%
S/N RATIO	76dB @5MHz
