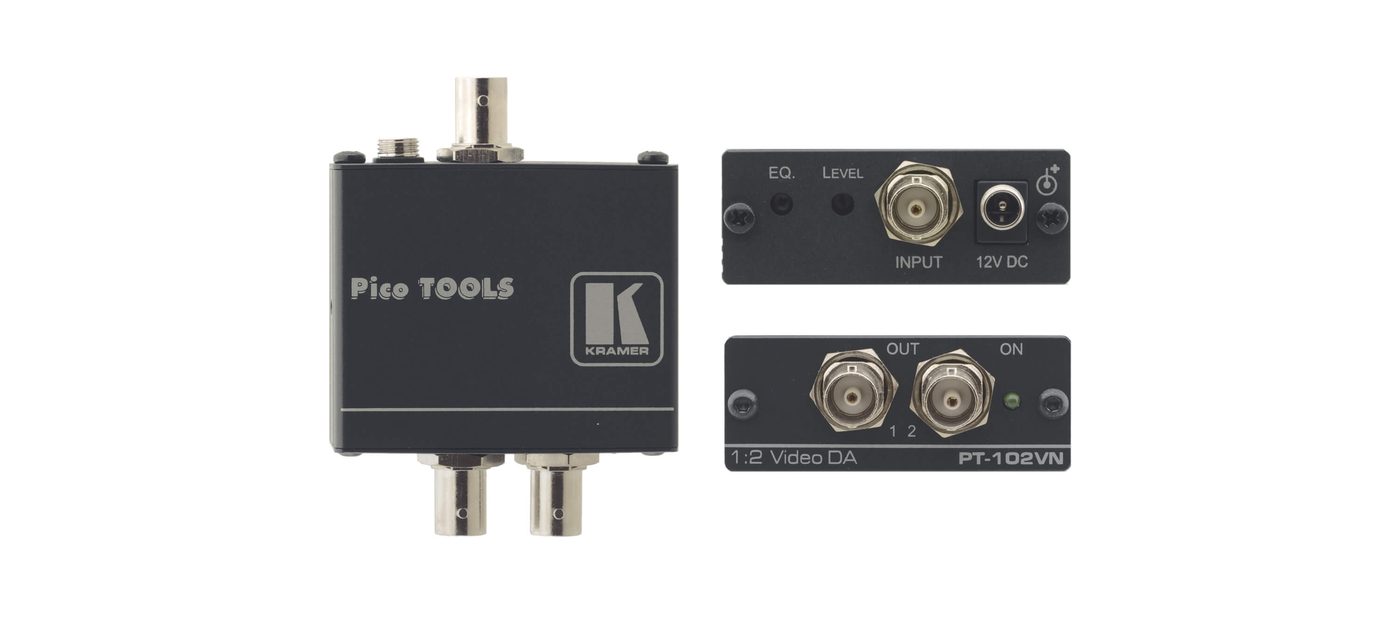

Kramer PT-102VN 1:2 Composite Video Distribution Amplifier

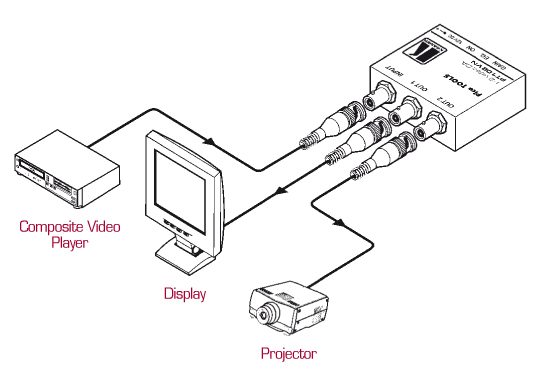

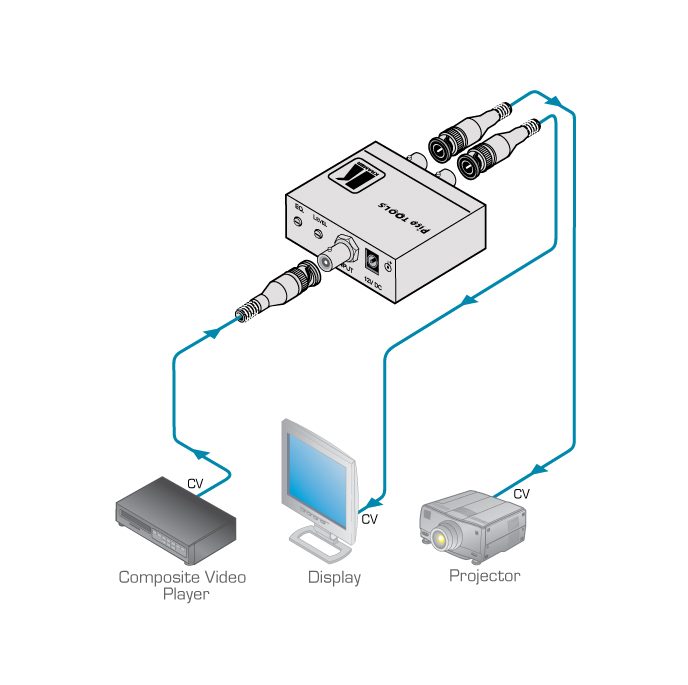

The PT-102VN is a distribution amplifier for composite video or SDI signals. It takes one input, provides correct buffering and isolation and distributes the signal to two identical outputs. High Bandwidth - 430MHz (-3dB). Level (Gain) and EQ (Peaking) Controls. Ultra Compact Pico TOOLS - 4 units can be rack mounted side-by-side in a 1U rack space with the recommended rack adapter.

INPUTS	1 composite or SDI video, 1Vpp/75ohm on a BNC connector
OUTPUTS	2 composite or SDI video, 1Vpp/75ohm on BNC connectors
MAX. VIDEO OUTPUT	2Vpp
VIDEO BANDWIDTH (-3dB)	430MHz
DIFF. GAIN	0.05%
DIFF. PHASE	0.05Deg
K-FACTOR	<0.05%
S/N RATIO	76.1dB
