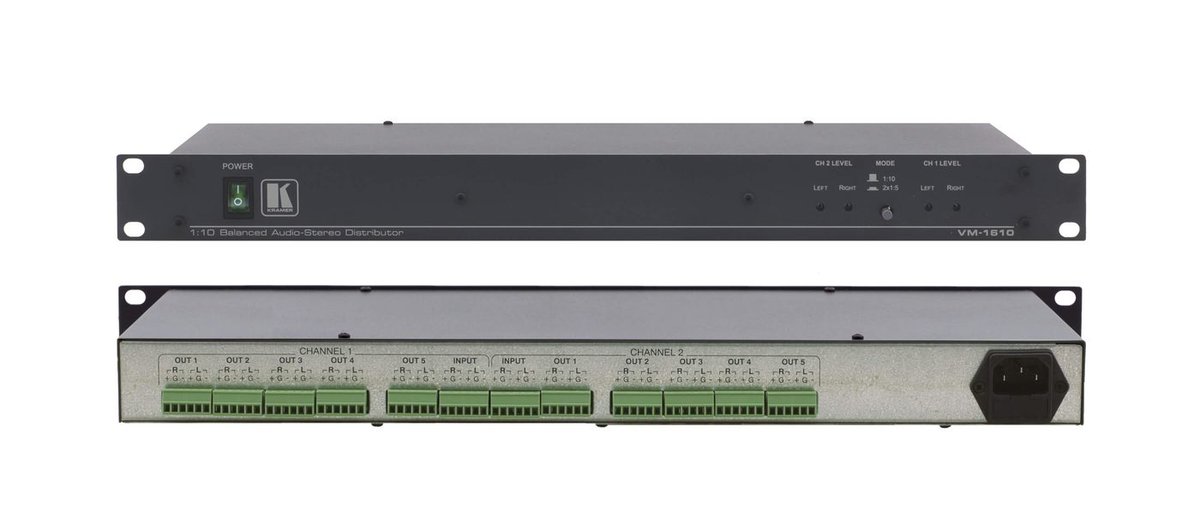

Kramer VM-1610 1:10 Balanced Stereo Audio Distribution Amplifier

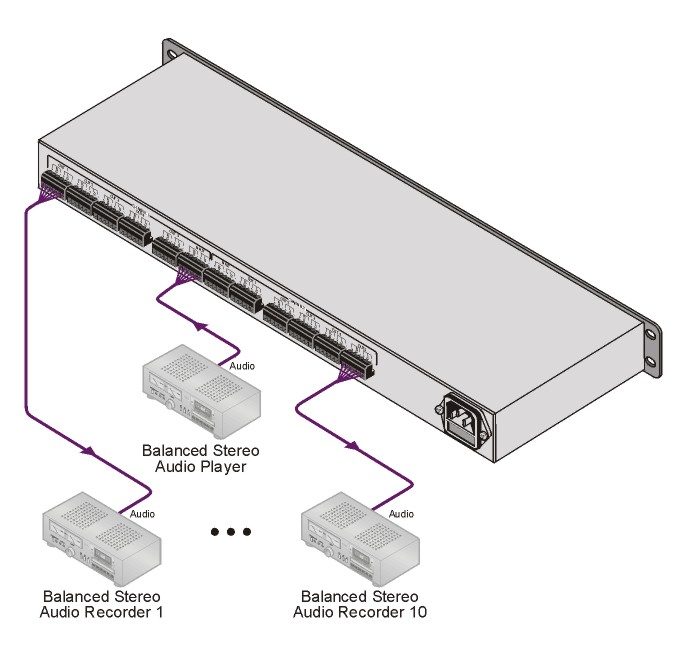

The Kramer VM-1610 is a 1:10 distribution amplifier for balanced stereo audio that can also run as two independent 1:5 amplifiers, set by a front-panel selector switch. It feeds one program to ten destinations, such as zones, recorders or broadcast feeds, at +4 dBu.
Gain is adjustable from 0.5 to 9.5 dB on four front-panel trimmers, two per input. Bandwidth exceeds 100 kHz, S/N is 92 dB at 1 Vpp, THD plus noise is 0.011% at 1 kHz and crosstalk is -84.5 dB. Inputs and outputs are on detachable terminal blocks, and it runs on mains power at 21 VA in a 1U rack chassis.
- Inputs2 balanced stereo audio, +4dBu
- Outputs10 (or 2x5) balanced stereo audio, +4dBu
- MAX. AUDIO OUTPUT18Vpp
- Gain Range0.5dB to +9.5dB (4 trimmers, 2 for each input channel)
- Power230V AC (115V AC USA), 21VA
| Inputs | 2 balanced stereo audio, +4dBu, 50kΩ on detachable terminal blocks |
|---|---|
| Outputs | 10 (or 2x5) balanced stereo audio, +4dBu, 50Ω on detachable terminal blocks |
| AUDIO BANDWIDTH (-3dB) | >100kHz |
| MAX. AUDIO OUTPUT | 18Vpp |
| Gain Range | 0.5dB to +9.5dB (4 trimmers, 2 for each input channel) |
| AUDIO S/N RATIO | 92dB @1Vpp |
| Crosstalk | –84.5dB |
| Control | Front selector switch for 1:10 or 2x1:5 operation, 4 front accessible gain trimmers |
| Coupling | AC (input), DC (output) |
| THD + Noise | 0.011% at 1kHz |
| Power | 230V AC (115V AC USA), 21VA |

- Power cord
