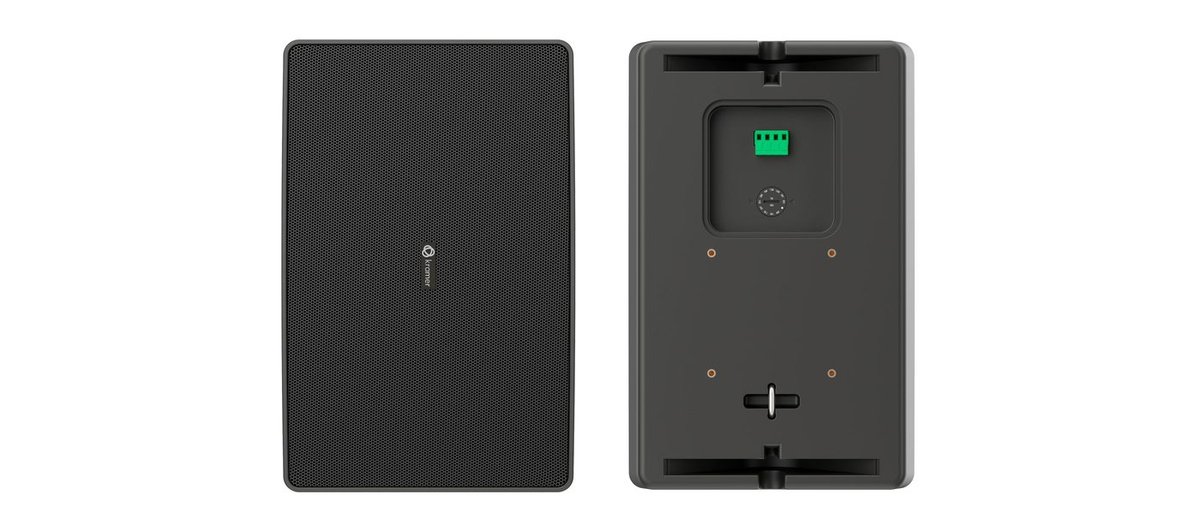

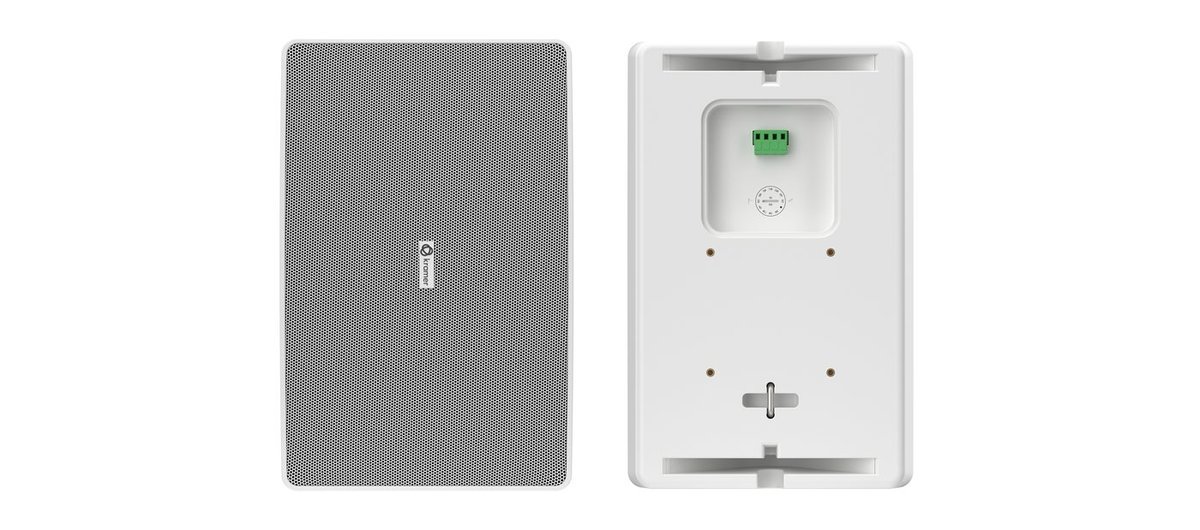

Kramer WM-8P 8" Two-Way Wall Mounted Passive Speaker
The WM-8P steps up from the WM-6P with a 200mm woofer and 25mm liquid-cooled tweeter, doubling continuous power to 60W (80W peak) at 8 ohms while keeping the same field-selectable 70V/100V constant-voltage taps for distributed lines. No amplifier or network gear lives inside; it wires to a 4-pin Euroblock terminal from an external amp or 70V/100V line.

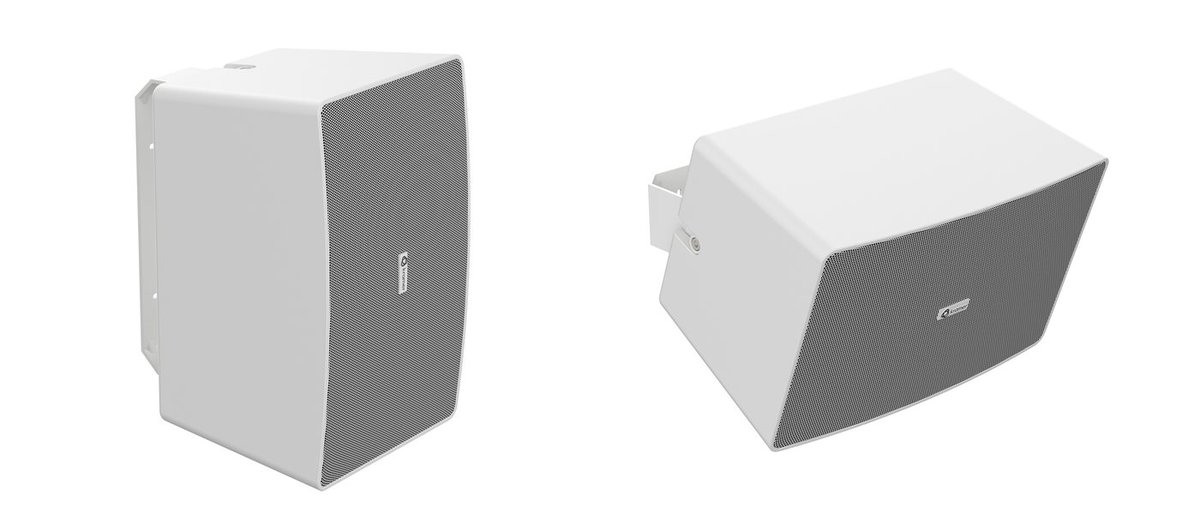

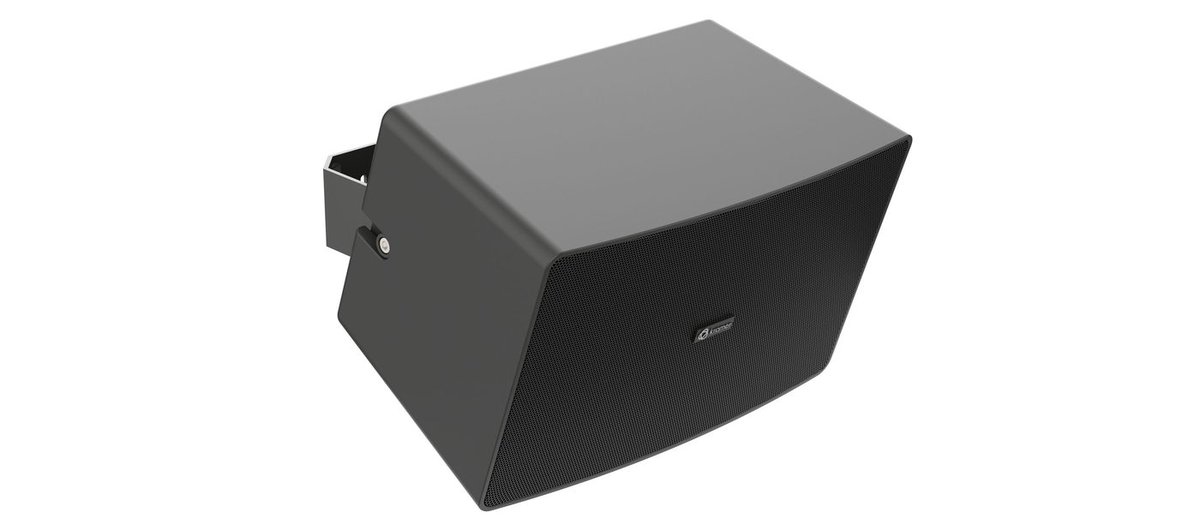

It shares the WM line's EasyMount bracket for vertical, horizontal, or corner mounting and a 75mm VESA thread, in black or white. UL1480A certified, it targets larger meeting rooms, auditoriums, retail floors, and transportation hubs where the 6.5-inch model runs out of headroom.
| LF Driver | 200mm (8") polypropylene cone |
|---|---|
| HF Driver | 25mm (1") liquid-cooled soft dome tweeter |
| Frequency Response (+/-3dB) | 79 Hz - 20 kHz |
| Power @ 8 ohm | 60W continuous / 80W peak |
| Power @ 70V / 100V Taps | 60W / 30W / 15W (70V adds 7.5W tap) |
| Sensitivity | 90dB SPL (1W @ 1m free field) |
| Max SPL | 108dB continuous / 109dB peak |
| Dimensions (with bracket) | 250 x 306 x 390 mm |
| Weight (with bracket) | 5.1 kg (11.3 lbs) |
| Compliance | UL 1480A, RoHS, REACH, WEEE |
