Blackmagic Videohub 40x40 12G Rack

The Videohub 40x40 12G is a zero latency SDI router with 40 12G-SDI inputs and 40 12G-SDI outputs in a two rack unit chassis with redundant power. Every input auto-switches between SD, HD, and Ultra HD, so a busy facility can route 1080i cameras, 2160p60 feeds, and DVB-ASI streams through one crosspoint at the same time. SDI re-clocking on all outputs regenerates the signal for clean distribution.

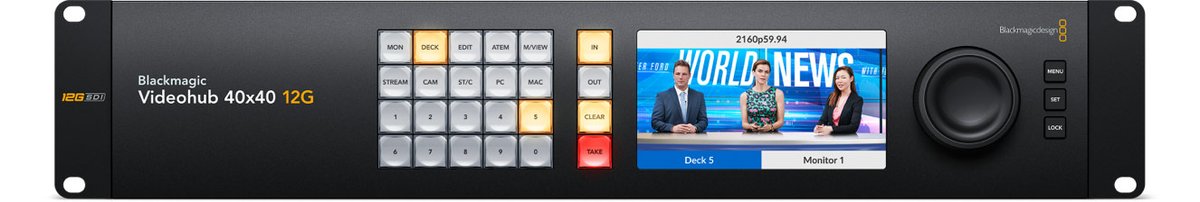

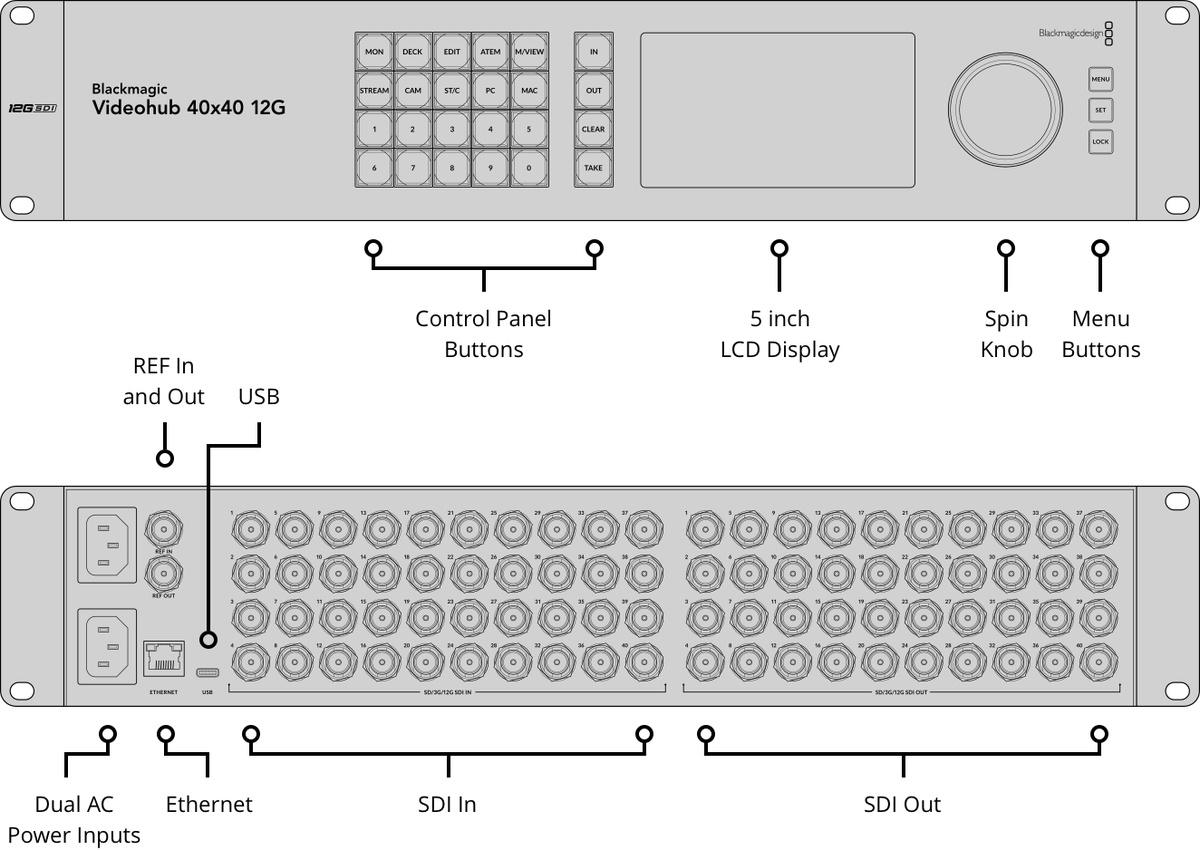

Routing is handled from the front panel with direct-selection buttons and a spin knob with an electronic clutch, and the built-in 5 inch LCD previews video and shows routing labels and standards before a switch is made. Dual internal power supplies protect against a single supply failure, reference in and out lock the router to house sync, and Ethernet allows external control from the free Videohub software or from Smart Control Pro and Master Control Pro hardware panels.
