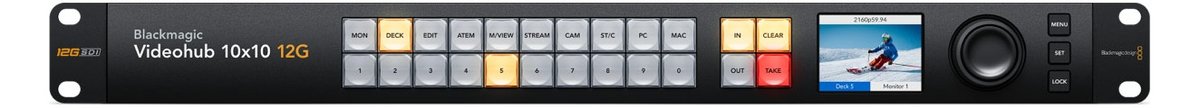

Blackmagic Videohub 10x10 12G Rack

The Videohub 10x10 12G is a zero latency SDI router with 10 12G-SDI inputs and 10 12G-SDI outputs in a single rack unit. Every input auto-switches between SD, HD, and Ultra HD, so a mixed facility can run 1080i cameras, 2160p60 sources, and DVB-ASI feeds through the same crosspoint at once. SDI re-clocking on all outputs regenerates the signal for clean, long cable runs.

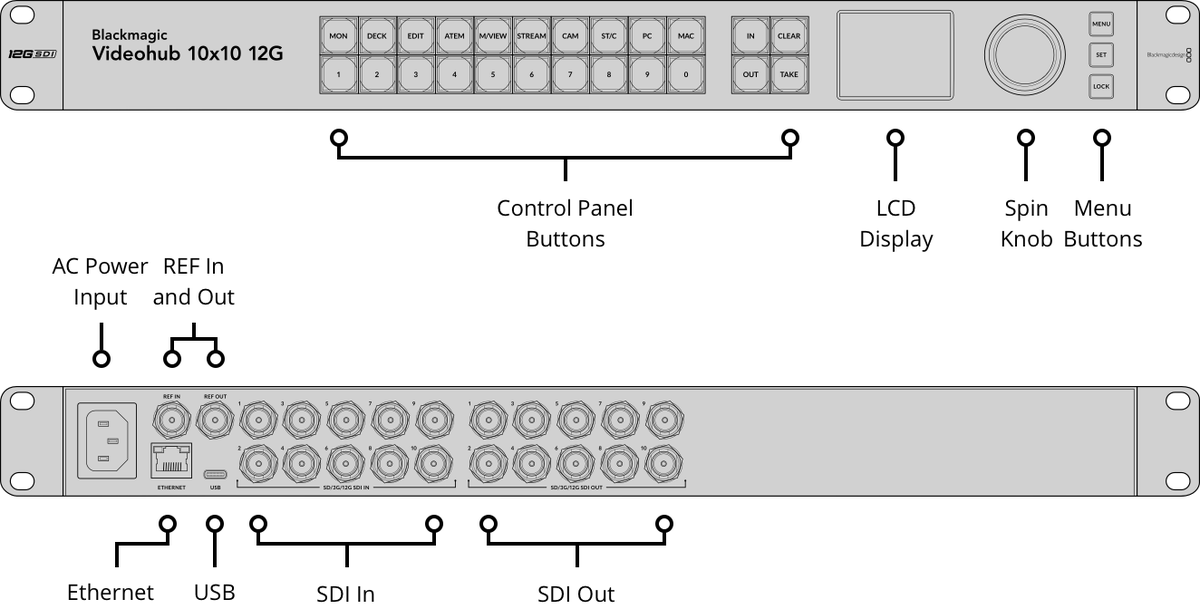

Routing happens right on the front panel with direct-selection buttons and a spin knob with an electronic clutch, and the built-in 2.2 inch LCD previews the video and shows routing labels before you commit a switch. Reference in and out lock the router to house sync, and Ethernet gives you external control from the free Videohub software on Mac and Windows or from Smart Control Pro and Master Control Pro hardware panels. Crosspoints are preserved and restored instantly on power up.
