Blackmagic Videohub Master Control Pro

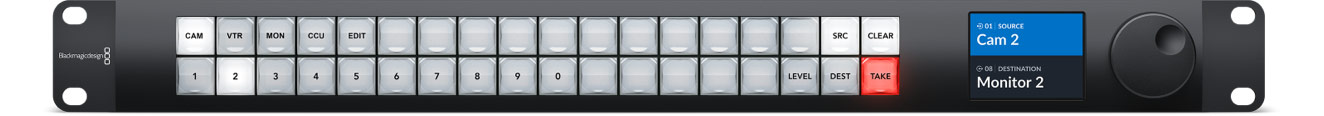

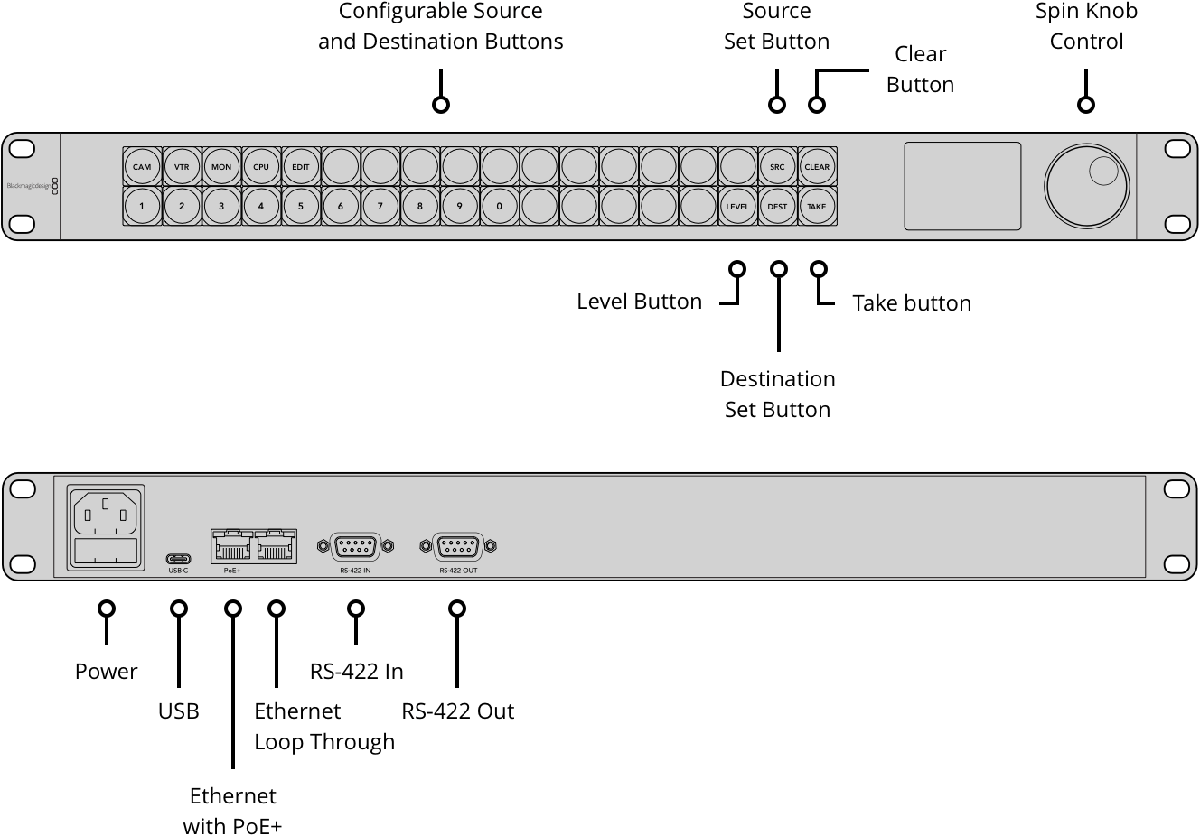

Videohub Master Control Pro is a hardware routing panel that drives a Blackmagic Videohub across the network without a computer. Twenty-one assignable buttons and a scroll wheel let an operator page through every source and destination on the router, and an LCD information screen confirms the current route at a glance. It suits a control room or master control position where an operator needs full access to a large crosspoint quickly.

The panel connects over standard Ethernet with RJ45 in and out, and Power over Ethernet on the Ethernet input means no separate power supply is needed when it plugs into a PoE switch. RS-422 in and out are provided for future implementation, and a USB-C port handles configuration and software updates. It installs in one rack unit and is less than three inches deep, so it fits a shallow rack or desk cutout.
