Blackmagic Videohub 80x80 12G Rack

The Videohub 80x80 12G is a zero latency SDI router with 80 12G-SDI inputs and 80 12G-SDI outputs in a four rack unit frame with redundant power. Each input BNC carries an LED that indicates a live SDI signal, and every input auto-switches between SD, HD, and Ultra HD so 1080i, 2160p60, and DVB-ASI sources share one crosspoint. SDI re-clocking on all outputs keeps the signal clean across a large plant.

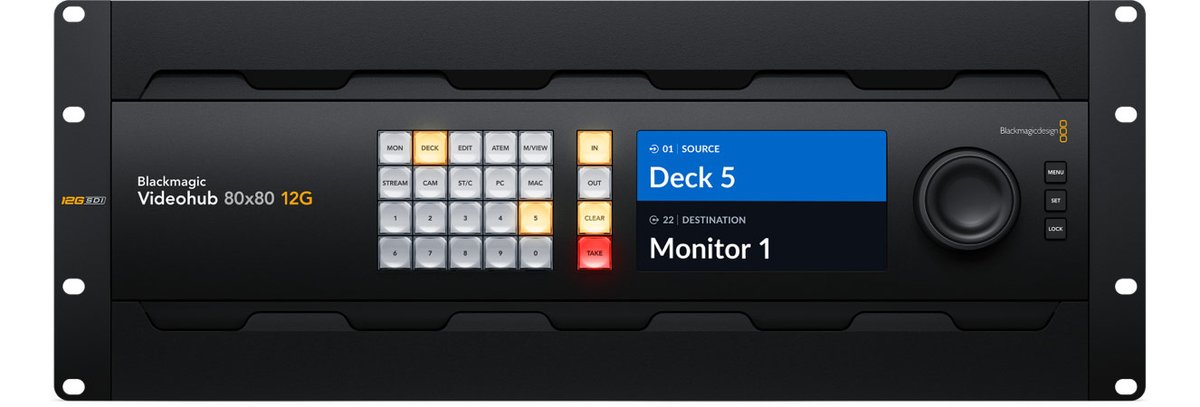

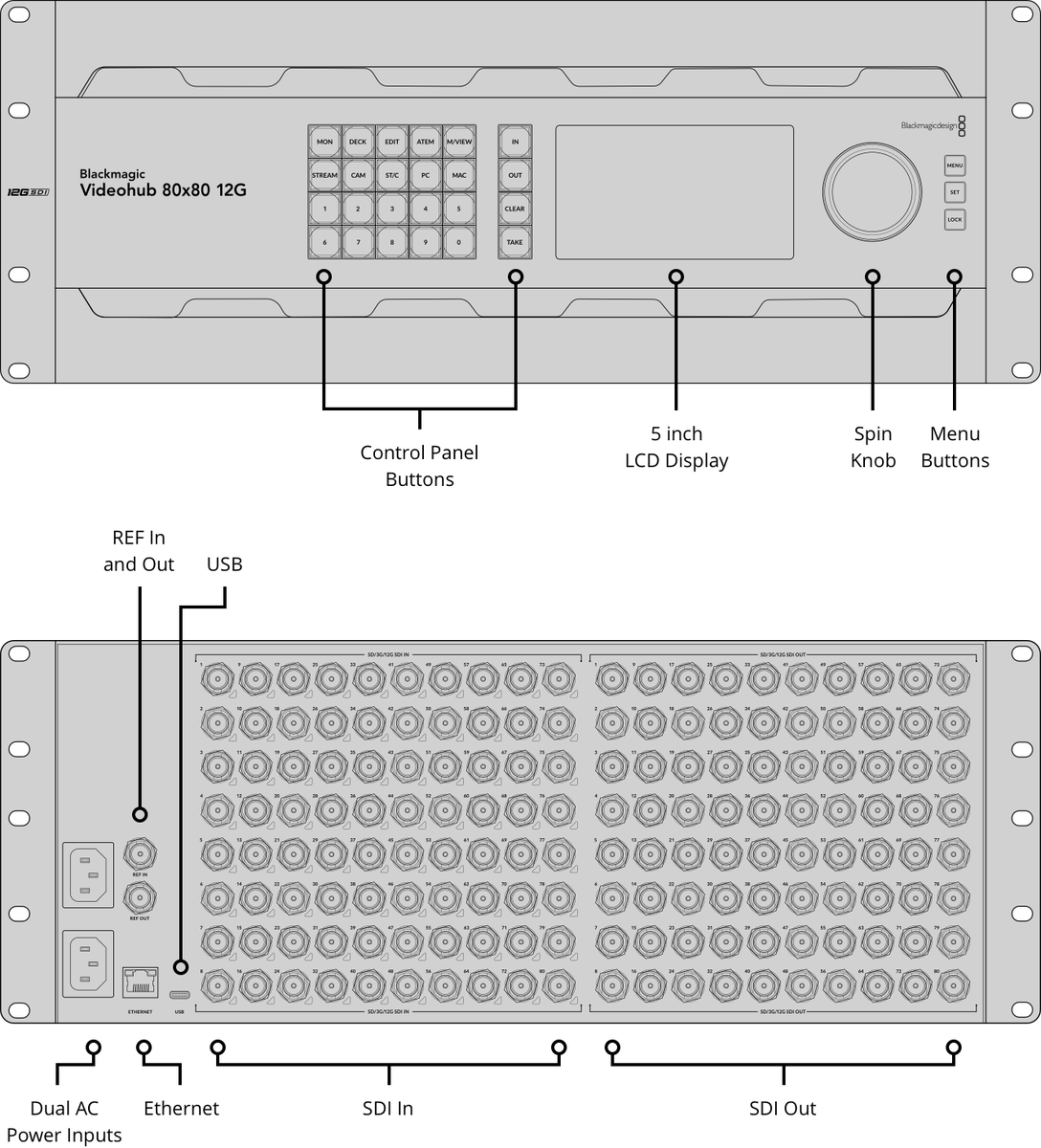

The front panel routes with direct-selection buttons and a spin knob with an electronic clutch, and the 5 inch LCD previews video and displays routing labels and standards. Two internal power supplies guard against a single supply failure, reference in and out lock the unit to house sync, and Ethernet drives external control from the free Videohub software or from Smart Control Pro and Master Control Pro hardware panels. Crosspoints are preserved and restored instantly on power up.
