Blackmagic Videohub 120x120 12G Rack

The Videohub 120x120 12G is Blackmagic's largest zero latency SDI router, with 120 12G-SDI inputs and 120 12G-SDI outputs in a six rack unit frame with redundant power. Each input BNC has an LED that shows a live SDI signal, and every input auto-switches between SD, HD, and Ultra HD, so a large broadcast center can route 1080i, 2160p60, and DVB-ASI feeds through a single crosspoint. SDI re-clocking on all outputs regenerates the signal for a facility-wide distribution grid.

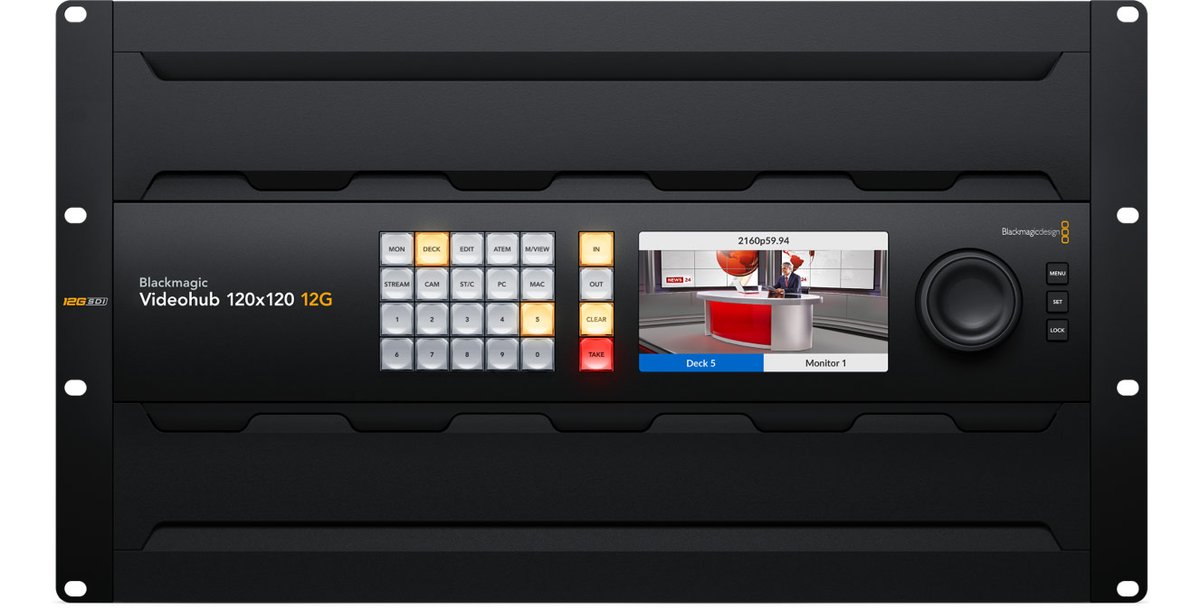

The front panel routes with direct-selection buttons and a spin knob with an electronic clutch, and the 5 inch LCD previews video and displays routing labels and video standards. Two internal power supplies protect against a single supply failure, reference in and out lock the router to house sync, and Ethernet drives external control from the free Videohub software or from Smart Control Pro and Master Control Pro hardware panels. Crosspoint connections are preserved and restored instantly at power on.
