Blackmagic Design Videohub Smart Control Pro

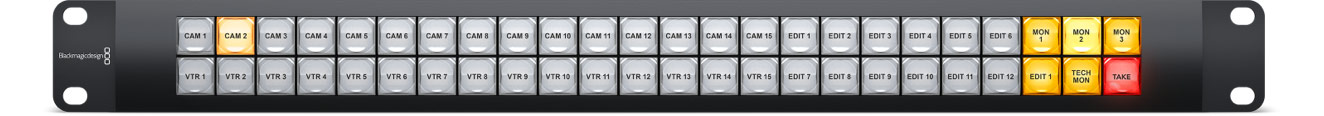

Videohub Smart Control Pro is a hardware routing panel built for the fastest possible switching on a Blackmagic Videohub. Each of its 48 programmable buttons can be set to a single router crosspoint, so pressing a button makes the route instantly, and buttons can be grouped for multiple destinations with a dedicated take button. It is the panel you want at a position that repeatedly switches the same handful of sources.

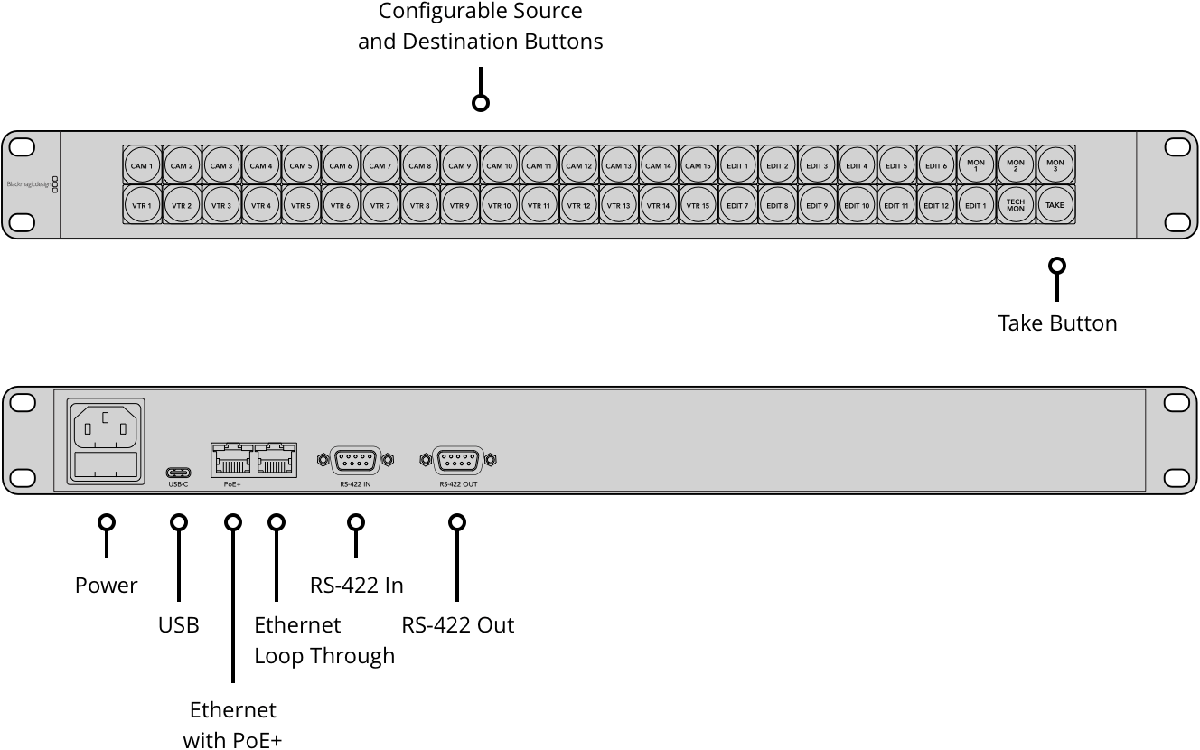

Up to 10 macro buttons can be assigned to fire several switching commands at once, useful for recalling a whole set of routes in one press. The panel connects over standard Ethernet with RJ45 in and out, and Power over Ethernet on the Ethernet input means no separate supply is needed on a PoE switch. RS-422 in and out are provided for future implementation, a USB-C port handles configuration and updates, and it installs in one rack unit less than three inches deep.
