Blackmagic Videohub Mini 6x2 12G Rack

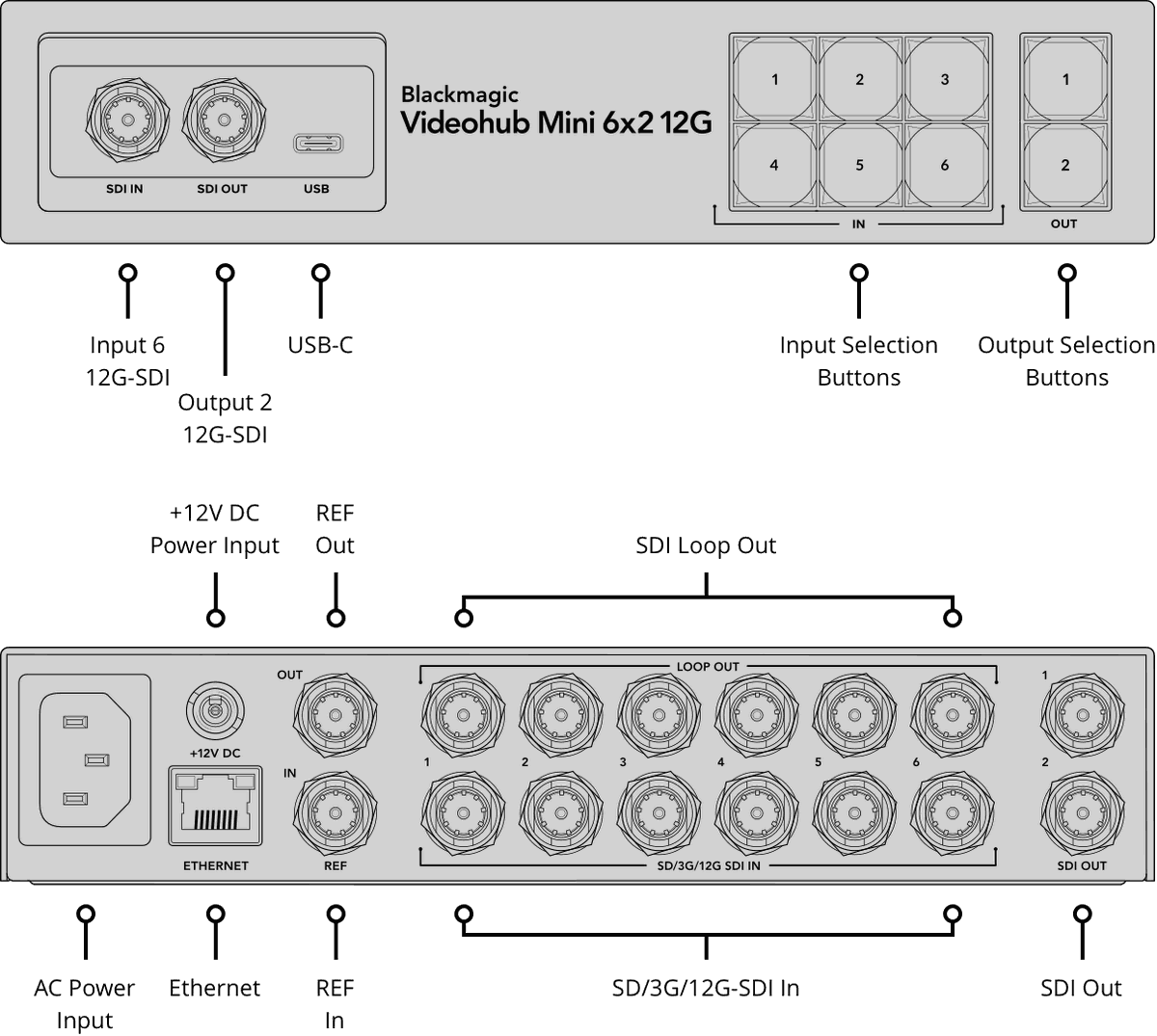

The Videohub Mini 6x2 12G is a compact zero latency SDI router with 6 12G-SDI inputs and 2 12G-SDI outputs in a half rack width box. Each input auto-switches between SD, HD, and Ultra HD up to 2160p60, SDI re-clocking runs on both outputs, and reference in and out let the router lock clean switch outputs to house sync. The front panel input overrides rear input 6 for an emergency 12G-SDI patch point.

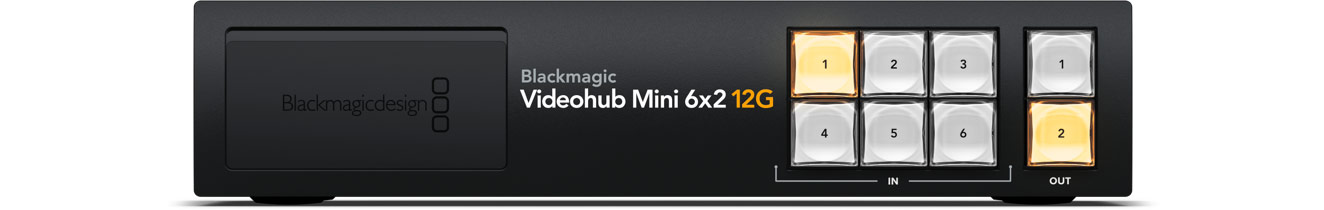

Eight front panel buttons route a source to a destination with a single press, and a USB-C port doubles as a webcam output to feed a computer for streaming or conferencing. Ethernet allows external control from the free Videohub software on Mac and Windows and from Smart Control Pro and Master Control Pro hardware panels. It runs on internal AC with a 12V DC input as a backup power option.
