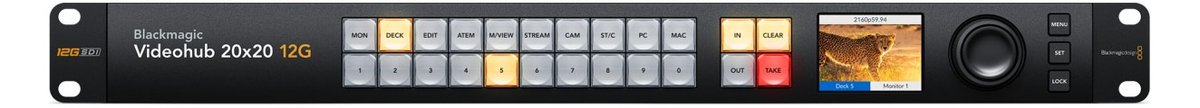

Blackmagic Design Videohub 20x20 12G Rack

The Videohub 20x20 12G is a zero latency SDI router with 20 12G-SDI inputs and 20 12G-SDI outputs packed into a single rack unit. Each input auto-switches between SD, HD, and Ultra HD, letting a station mix 1080i, 2160p60, and DVB-ASI signals through one crosspoint without pre-conversion. SDI re-clocking on every output rebuilds the signal for reliable runs across a machine room.

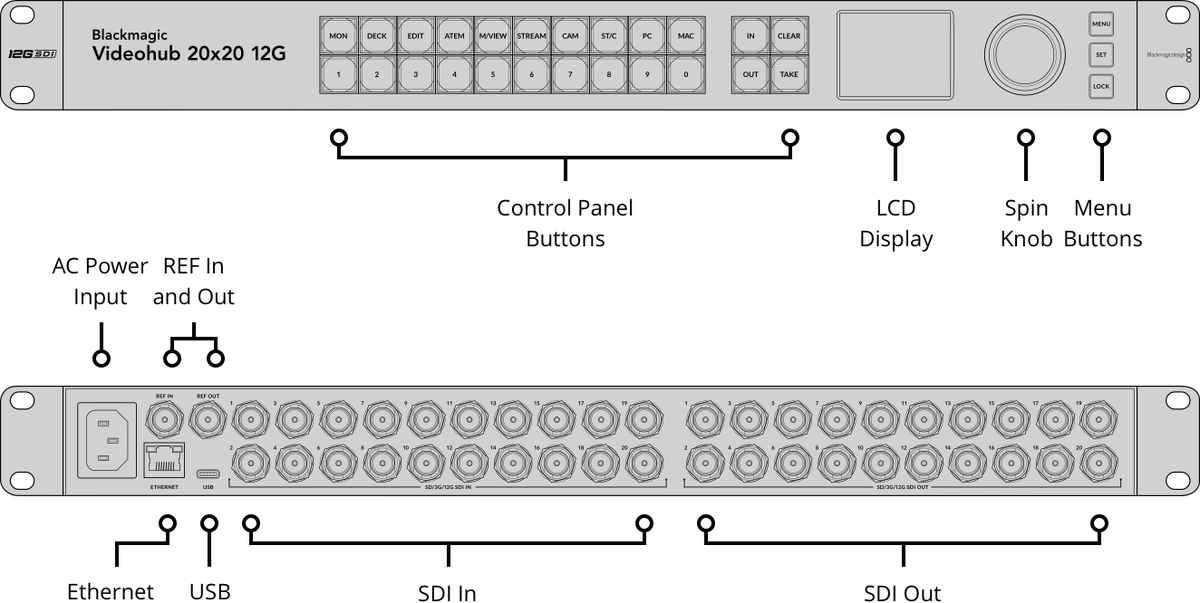

The front panel handles routing with direct-selection buttons and a spin knob with an electronic clutch, while the 2.2 inch LCD previews video and displays routing labels and video standards. Reference in and out lock the unit to house sync, and Ethernet opens external control from the free Videohub software or from Smart Control Pro and Master Control Pro hardware panels. Crosspoint connections are preserved and restored instantly at power on.
