Blackmagic Videohub Mini 8x4 12G Rack

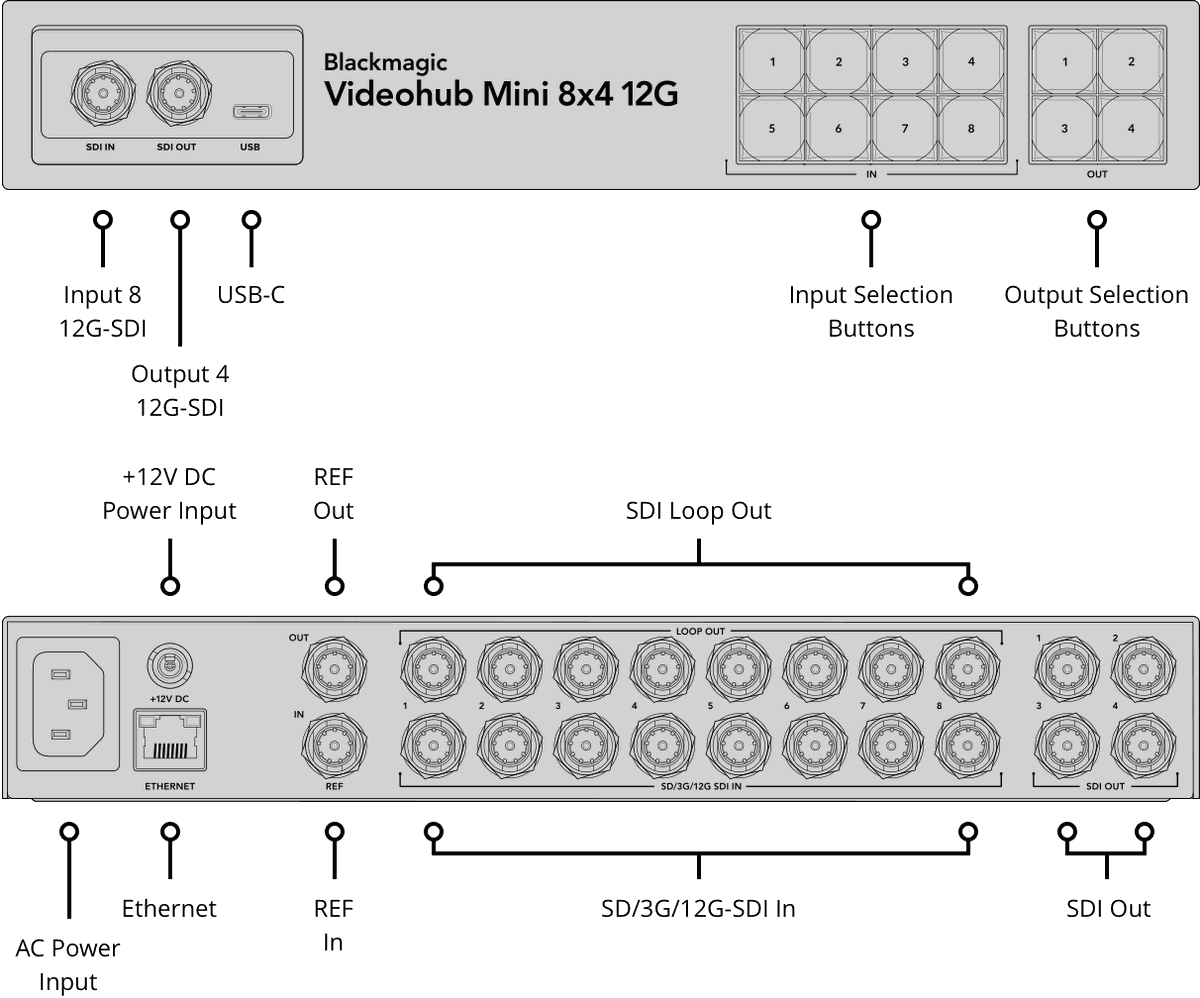

The Videohub Mini 8x4 12G is a compact zero latency SDI router with 8 12G-SDI inputs and 4 12G-SDI outputs in a two-thirds rack width box. Each input auto-switches between SD, HD, and Ultra HD up to 2160p60, SDI re-clocking runs on all outputs, and reference in and out let the router lock clean switch outputs to house sync. The front panel input overrides rear input 8 and the front panel output mirrors rear output 4, giving you an emergency 12G-SDI patch point.

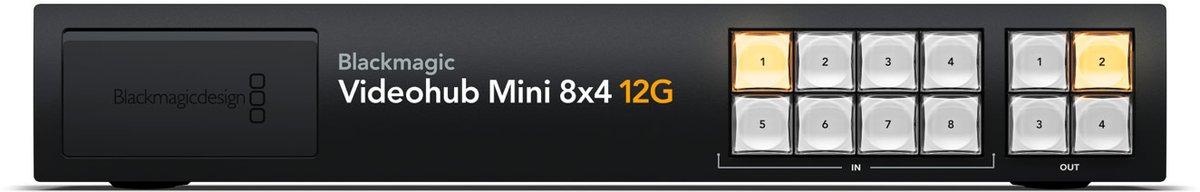

Twelve front panel buttons route sources to destinations with a single press, and a USB-C port doubles as a webcam output to feed a computer for streaming or conferencing. Ethernet allows external control from the free Videohub software on Mac and Windows and from Smart Control Pro and Master Control Pro hardware panels. It runs on internal AC with a 12V DC input as a backup power option.
