Blackmagic Videohub Mini 4x2 12G Rack

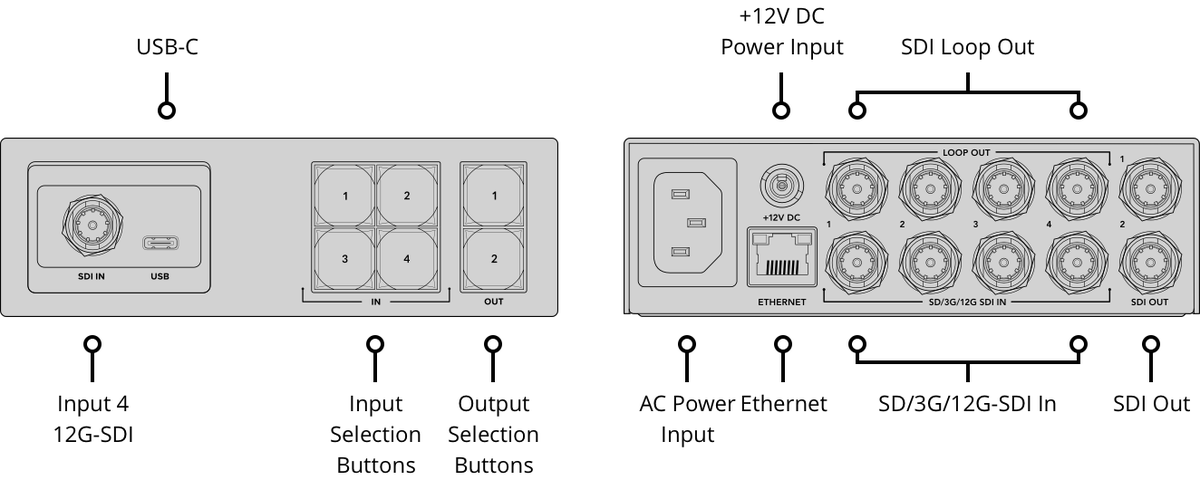

The Videohub Mini 4x2 12G is a compact zero latency SDI router with 4 12G-SDI inputs and 2 12G-SDI outputs in a tiny one-third rack width box. Each input auto-switches between SD, HD, and Ultra HD up to 2160p60, and SDI re-clocking on both outputs keeps the signal clean. The front panel input overrides rear input 4, giving you an emergency 12G-SDI connection for patching in external gear on the fly.

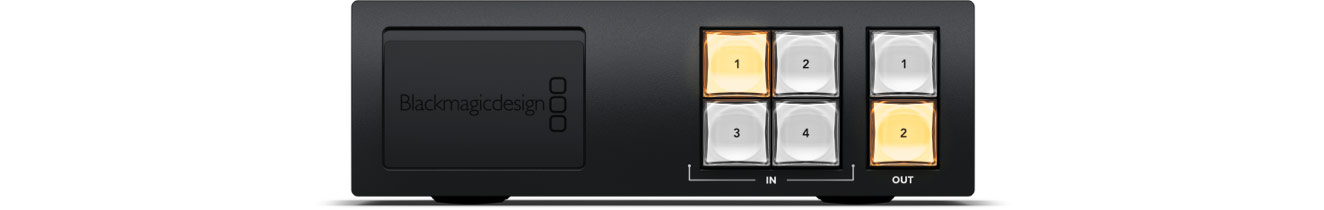

Six front panel buttons route a source to a destination with a single press, and a USB-C port doubles as a webcam output so the router can feed a computer for streaming or conferencing. Ethernet allows external control from the free Videohub software on Mac and Windows and from Smart Control Pro and Master Control Pro hardware panels. It runs on internal AC with a 12V DC input as a backup power option.
