Name: Blackmagic StudioBridge 100G
Brand: Blackmagic Design
Price: 2745.00 USD
Availability: InStock

The Blackmagic StudioBridge 100G bridges 100G Ethernet from cameras into redundant SMPTE 2022-7 100G Ethernet systems. It is a bi-directional SMPTE-2110 converter with redundant 100G Ethernet on the network side and two 100G Ethernet camera connections, so a pair of cameras reaches the core network on a resilient dual path. Each 100G pair carries one 100G URSA Cine, or two URSA Cine Immersive bodies.

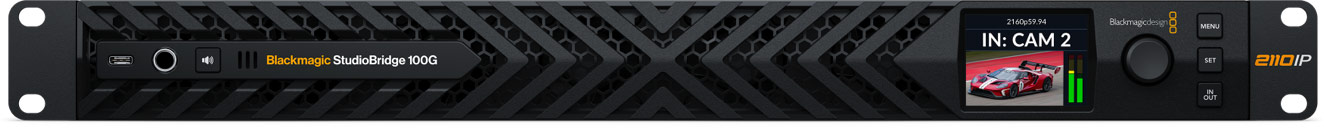

Alongside the 100G ports it has two 10G SFP optical fiber connections and two 10G RJ45 connections, each pair handling up to eight Ultra HD or HD senders and receivers, plus a 1G RJ45 for NMOS control, configuration and software updates. Sixteen channels of embedded audio ride each 2110 IP video stream. A built in 2.2 inch color display with a three button panel and spin knob handles source and destination setup at the front of the unit, and two internal 100 to 240V supplies feed it through a pair of IEC C14 sockets. Blackmagic part number BMD-CONVNVIPR/SBD100X2.

100G 2110 IP Networks	2 x 100G QSFP28, ST 2022-7 redundant delivery
100G 2110 IP Camera	2 x 100G QSFP28 camera connections
Senders and Receivers per 100G Pair	1 x 100G URSA Cine or 2 x URSA Cine Immersive
10G 2110 IP Networks	2 x 10G SFP optical fiber, 2 x 10G RJ45, 8 x Ultra HD or HD per pair
Control Network	1 x 1G RJ45 for NMOS control, configuration and software updates
IP Audio	16 channels embedded on each 2110 IP video stream over 100G and 10G
SMPTE Compliance	SMPTE 2110-20, 2110-21, 2110-30, 2110-40 and 2022-7
Color Precision	10-bit 4:2:2 YUV, Rec. 709 and Rec. 2020
Display	Built in 2.2 inch LCD, 3 button panel and spin knob
Power	2 x 100 - 240V AC 50/60Hz internal supplies, 2 x IEC C14 inputs
Part Number	BMD-CONVNVIPR/SBD100X2
