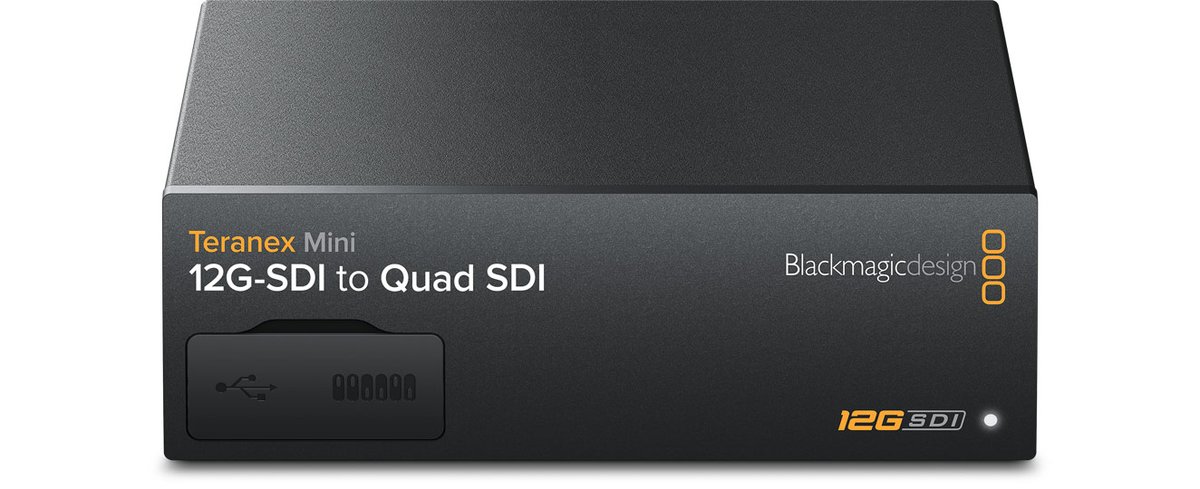

Blackmagic Teranex 12G-SDI to Quad SDI Converter

The Teranex Mini 12G-SDI to Quad SDI converts a single 12G-SDI Ultra HD signal into Quad Link SDI, so the latest 12G equipment can connect to Quad Link Ultra HD gear that expects four BNC cables. It can also split an Ultra HD SDI feed into four independent HD SDI outputs, which makes it useful for driving regular HD displays in a video wall arrangement.

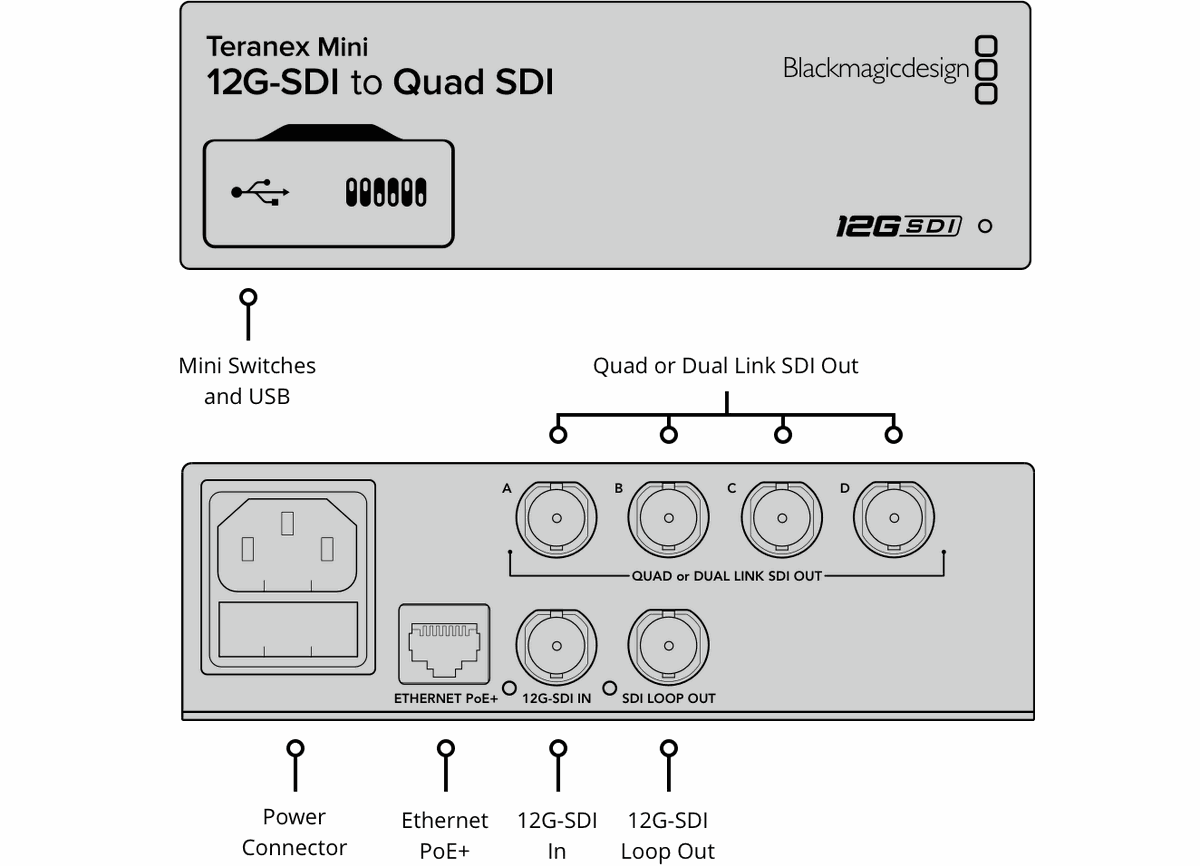

The single 12G-SDI input auto switches across SD, HD, 2K and 4K, and a 12G-SDI loop passes the source on to the next device. It carries 16 channels of embedded audio and supports both Level A and Level B 3G-SDI equipment. The unit uses the standard Teranex Mini chassis and works with the optional Rack Shelf and Smart Panel.
