Blackmagic StudioBridge 10G PWR

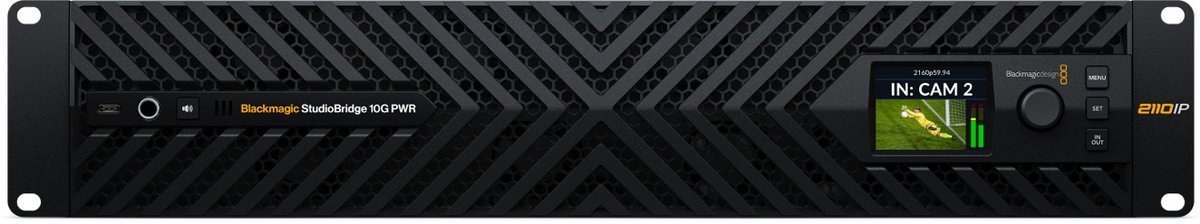

The Blackmagic StudioBridge 10G PWR bridges low-cost single-link 10G Ethernet SMPTE-2110 devices into high-end redundant 100G Ethernet systems. It takes 8 channels of 10G Ethernet and converts and combines them into a redundant pair of 100G Ethernet connections, so eight separate 10G Ultra HD devices reach the core network on a resilient dual-100G link. Each of the eight 10G ports also carries 90W of PoE++, letting it power converters and cameras directly over their Ethernet connection.

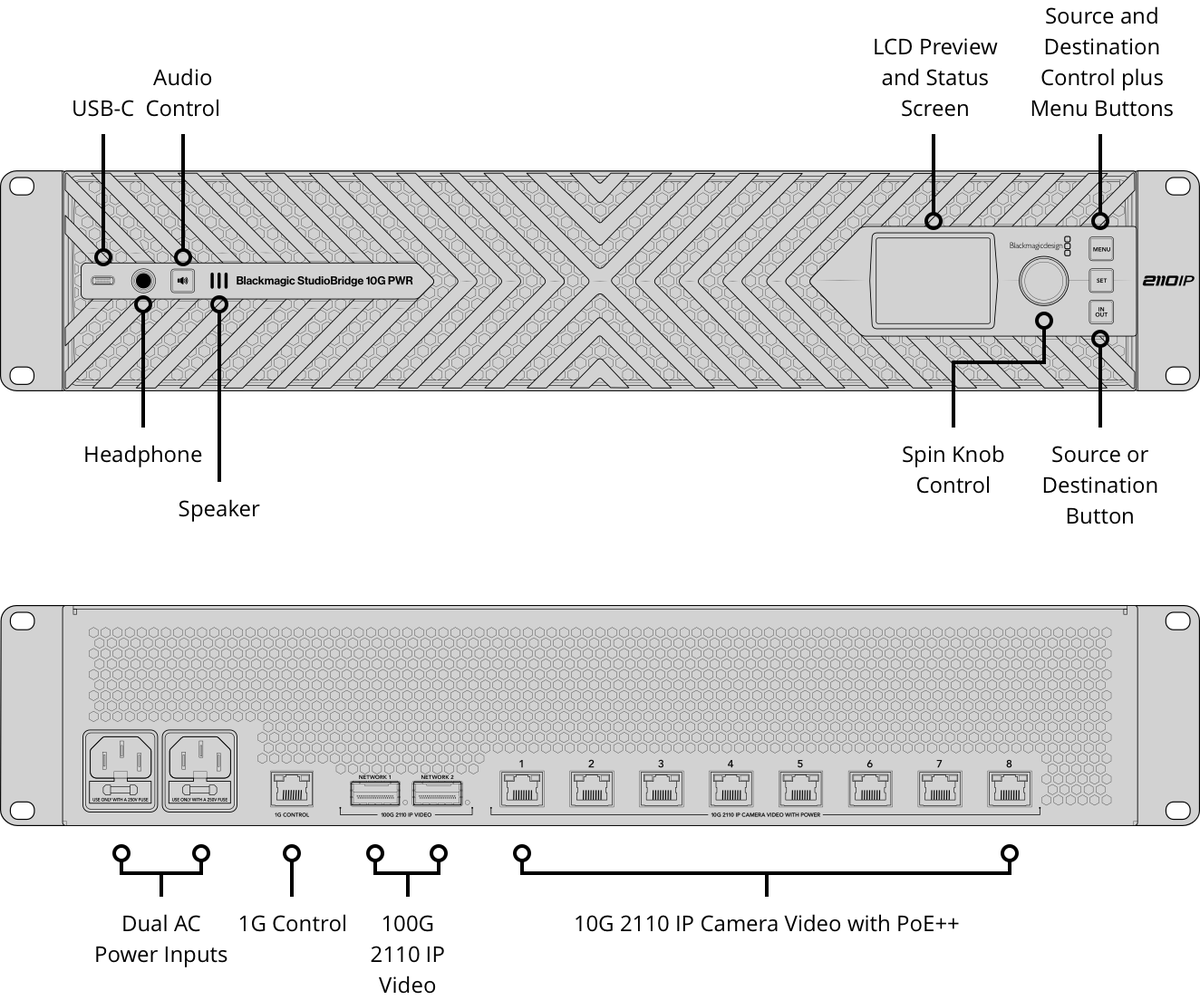

It handles up to eight channels of SMPTE-2110 video at resolutions up to 4K60 and presents dual 100GbE QSFP28 outputs with SMPTE 2022-7 redundancy. A 2.2-inch color display with a 3-button panel and spin knob handles source and destination setup at the unit, and RJ-45 Ethernet and USB-C ports provide external control. Two internal 100 to 240V AC power supplies feed the 2RU chassis through a pair of IEC C14 sockets.
