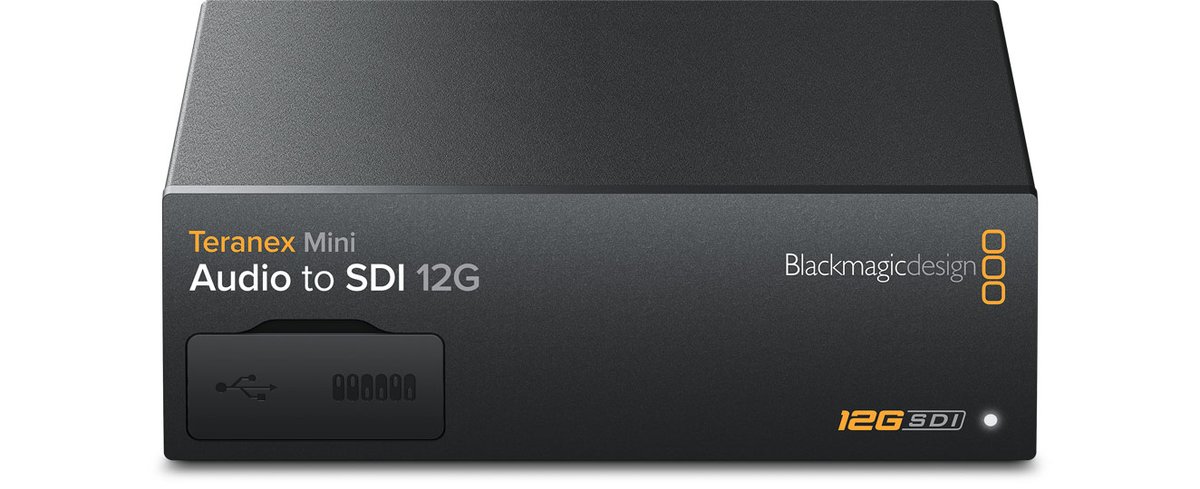

Blackmagic Teranex Audio to SDI 12G Converter

The Teranex Mini Audio to SDI 12G embeds external audio into an SDI video connection. It takes up to two channels from balanced analog, optical or HiFi RCA, or up to four channels of AES/EBU digital, and lays them into any SD, HD, Ultra HD or DCI 4K SDI stream. This is the tool for putting mixer feeds, playback devices or analog deck audio onto SDI for use with routers and recorders.

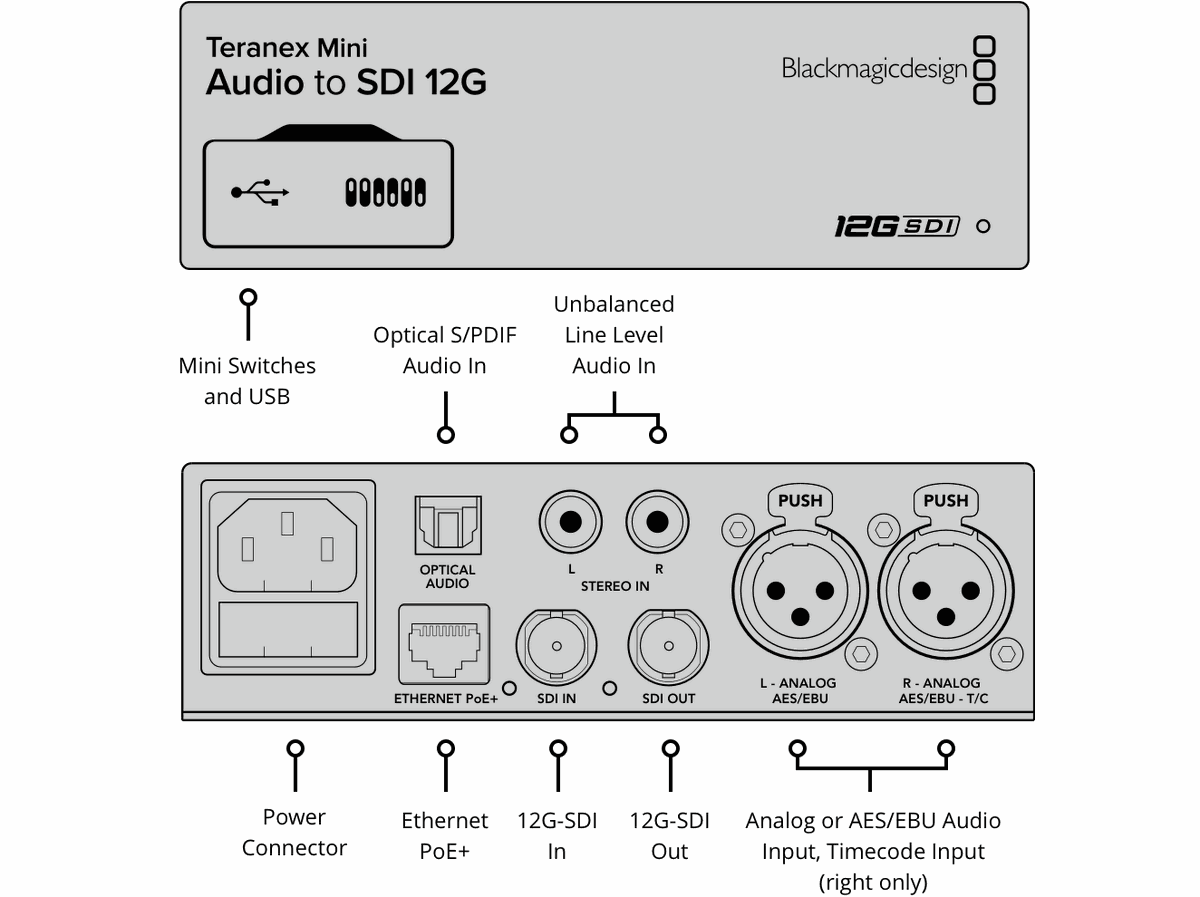

It accepts a 12G-SDI input with automatic SD/HD/2K/4K switching and outputs the combined signal on 12G-SDI. The right XLR can be configured for timecode input. The unit uses the standard Teranex Mini chassis and works with the optional Rack Shelf and Smart Panel.
