Blackmagic Teranex IP Video 12G Converter

The Teranex Mini IP Video 12G moves SDI video onto a standard ethernet network and back again, so video can be routed over existing network infrastructure instead of dedicated SDI cabling. It works with the standard Blackmagic Videohub software and hardware control panels, so IP video is switched and configured the same way as SDI signals.

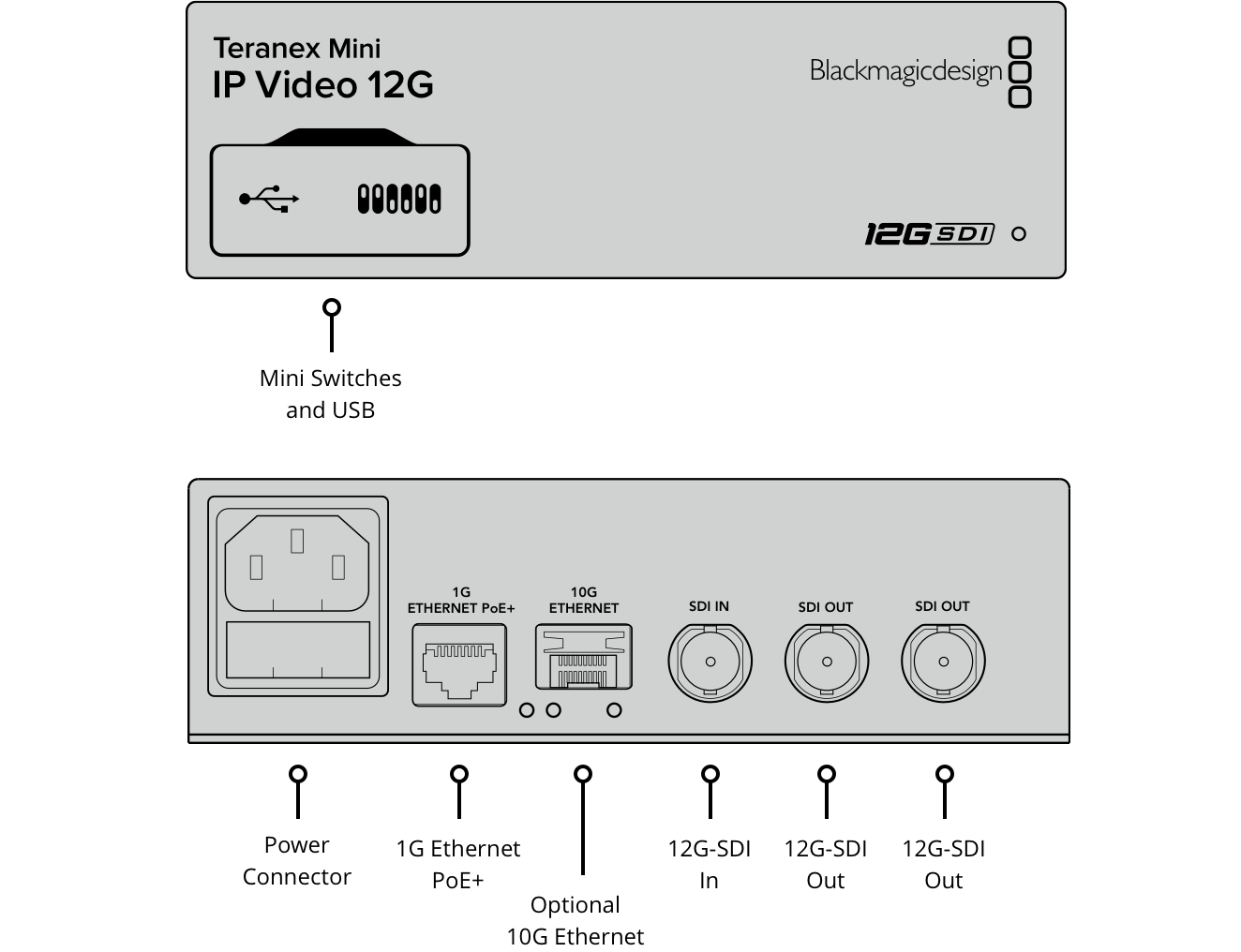

It uses the low latency broadcast quality TICO codec to carry HD over the built in gigabit ethernet port, and Ultra HD up to 2160p60 over an optional 10G ethernet SFP. Two 12G-SDI outputs let it convert IP video back to SDI for local devices. The unit uses the standard Teranex Mini chassis and works with the optional Rack Shelf and Smart Panel.
