VigilLink VLSP-18CTH14 1x8 HDMI Splitter over CAT with Loop Out

The VLSP-18CTH14 distributes a single HDMI source to eight remote displays over Cat6 cabling at up to 4K@30Hz 4:4:4, with one HDMI input, one HDMI loop output, and eight CAT outputs.

Each leg extends up to 40 meters at 4K@30Hz or 70 meters at 1080p@60Hz over a single Cat6 cable. One-way IR control pass-through and EDID management are included, with LPCM 7.1, Dolby TrueHD, and DTS audio support under HDMI 1.4 and HDCP 1.4.

HDMI Compliance	HDMI 1.4
HDCP Compliance	HDCP 1.4
Video Bandwidth	297MHz/10.2Gbps
Video Resolution	480i ~1080p50/60Hz, 4Kx2K@30Hz (4:4:4)

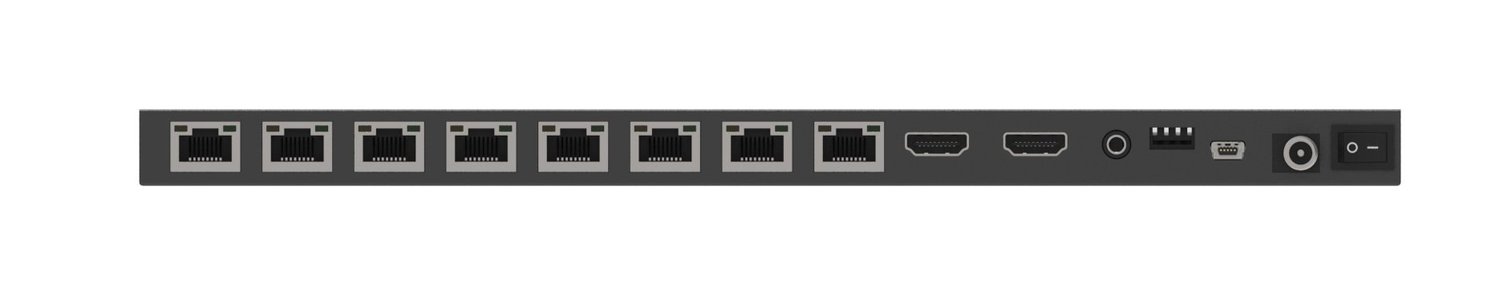

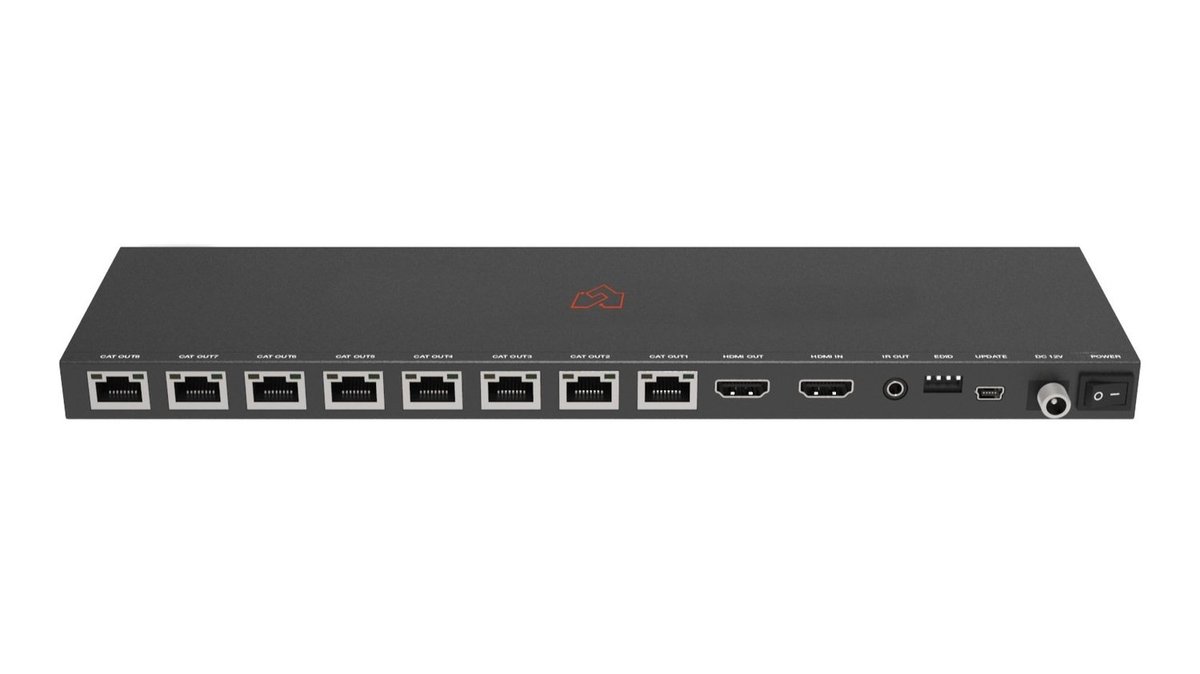

Transmitter	Inputs: 1xHDMI IN [Type A, 19-pin female] Outputs: 1xHDMI OUT [Type A, 19-pin female] 8x CAT OUT [RJ45] Controls: 1x IR OUT [3.5mm Stereo Mini-jack] 1x EDID DIP switch [4-pin] 1x Update [Micro USB]
Receiver	Inputs: 1x IR IN [3.5mm Stereo Mini-jack] 1x CAT IN [RJ45, 8-pin female] Outputs: 1 x HDMI OUT [Type A, 19-pin female]
Audio Formats	LPCM 7.1CH, Dolby True HD, and DTS-HD Master Audio
Color Space	RGB, YCbCr 4:4:4/4:2:2. YUV 4:2:0
