VigilLink VLWP-UHS-TR 2x1 USB-C and HDMI HDBaseT Wall Plate with Receiver and RS-232

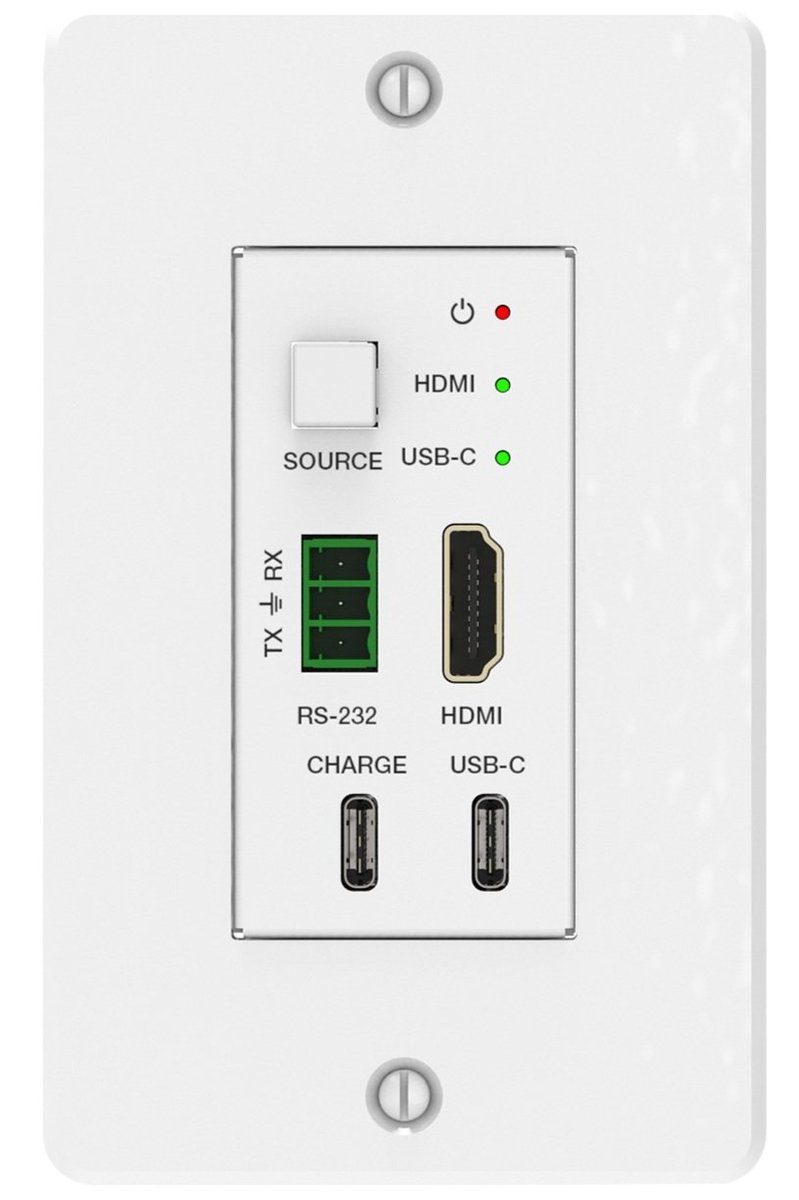

The VLWP-UHS-TR is a single-gang Decora wall plate transmitter with HDMI and USB-C inputs and auto or manual switching, supplied with its HDBaseT 2.0 receiver. It supports HDMI 2.0b (HDCP 2.2) and DisplayPort 1.2a at 4K@60Hz 4:4:4, 18Gbps, with 3D, HDR10, and Dolby Vision.

A single Cat6/6A/7 cable reaches 131 feet (40 meters) at 4K@60 or 230 feet (70 meters) at 1080p@60, with bidirectional RS-232 pass-through. The plate is powered by PoE from the receiver, so there is no local supply behind the wall, and it adds a USB-C charging port and interchangeable faceplates.

HDMI Compliance	HDMI 2.0b
HDCP Compliance	HDCP 2.2
Video Bandwidth	USB-C: 5.4 Gbps HDMI: 18 Gbps
Video Resolution	480i~1080p50/60Hz, 4Kx2K@24/30Hz, 4K2k@60Hz
Transmitter	Inputs: 1x HDMI Type A [19-pin female] 1x USB-C Outputs: 1x HDBaseT Out [RJ45, 8-pin female] 1x USB-C (only for charging) Controls: 1x RS-232 [3-pin phoenix connector] 1x FW [Micro USB, Update port]
Receiver	Inputs: 1x HDBaseT IN [RJ45, 8-pin female] Outputs: 1x HDMI OUT [Type A, 19-pin female] 1x AUDIO OUT [Phoenix jack] Controls: 1x RS-232 [3-pin phoenix connector] 1x FW [Micro USB, Update port]
Transmission Distance	Max distance (1080P) : 230ft / 70m over Cat6/6a/7 Max distance (4K): 131ft / 40m over Cat6/6a/7
HDMI Audio Formats	LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD
