VigilLink VLWP-UHU-TR 2x1 USB-C and HDMI HDBaseT Wall Plate with Receiver and USB 2.0

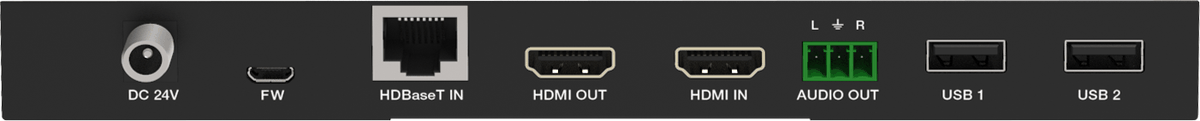

The VLWP-UHU-TR is a wall plate transmitter and receiver set with HDMI and USB-C inputs at the plate and an additional local HDMI input on the receiver, so a rack source and a table source can share the same display.

HDBaseT extends 4K video up to 40 meters and 1080p up to 70 meters, carrying USB 2.0 alongside for peripheral control. It supports HDMI 2.0b and HDCP 2.2.

HDMI Compliance	HDMI 2.0b
HDCP Compliance	HDCP 2.2
Video Bandwidth	18Gbps
Video Resolution	4096x2160@24/25/30/50/60Hz, 3840x2160@24/25/30/50/60Hz, 2048x1080p, 1080p@23.98/24/25/29.97/30/50/59.94/60Hz, 1080i@50/59.94/60Hz, 720p@50 /59.94/60Hz, 576p, 576i, 480p, 480i

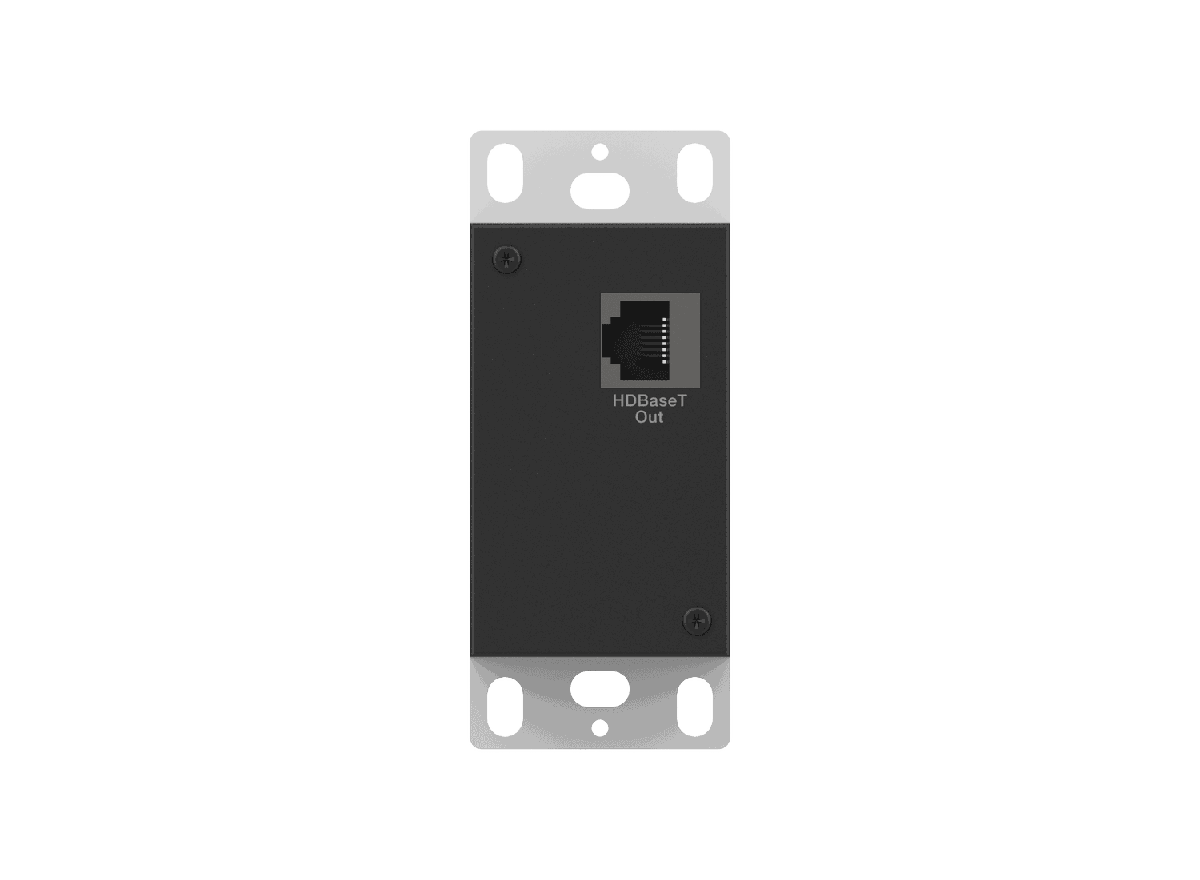

Transmitter	Inputs: 1x HDMI Type A [19-pin female] 1x USB-C Outputs: 1x HDBaseT Out [RJ45, 8-pin female] 1x USB-C (only for charging) Controls: 1x USB-B [Micro USB, Update port]
Transmission Distance	Max distance (1080p) : 230ft / 70m over Cat6/6a/7 Max distance (4K): 131ft / 40m over Cat6/6a/7
HDMI Audio Formats	Dolby Atmos, TrueHD, Digital+, Digital; DTS X, HD Master Audio, HD High Resolution Audio, 5.1; PCM 2-8Ch
Color Space	RGB, YCbCr 4:4:4, YCbCr 4:2:2, YUV 4:2:0
