VigilLink VLSP-18CTH20 1x8 HDMI 2.0 Splitter over CAT

The VLSP-18CTH20 distributes one HDMI source to eight remote displays at up to 4K@60Hz 4:4:4 and 18Gbps, with one HDMI loop output and eight CAT outputs for flexible layout.

Each leg reaches 35 meters at 4K@60Hz, 50 meters at 4K@30Hz, or 60 meters at 1080p@60Hz over a single Cat6, Cat6a, or Cat7 cable. One-way IR pass-through is supported, along with 3D, HDR, HDR10+, HLG, and Dolby Vision, under HDMI 2.0, HDCP 2.2/1.x, and DVI 1.0.

HDMI Compliance	HDMI 2.0
HDCP Compliance	HDCP 2.2/1.x
Video Bandwidth	594MHz/18Gbps
Video Resolution	Up to 4k2k@50/60Hz 4:4:4
Input	1xHDMI Type A [19-pin female]

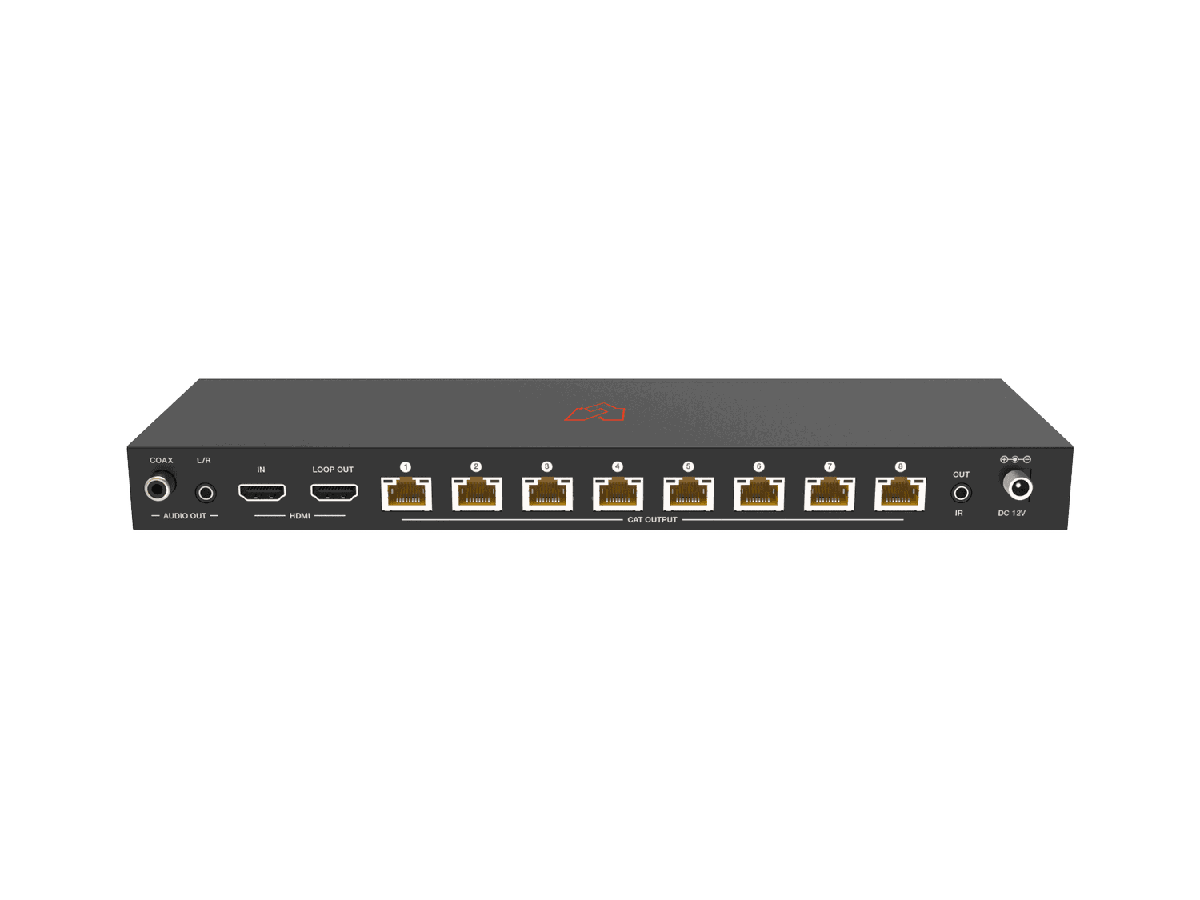

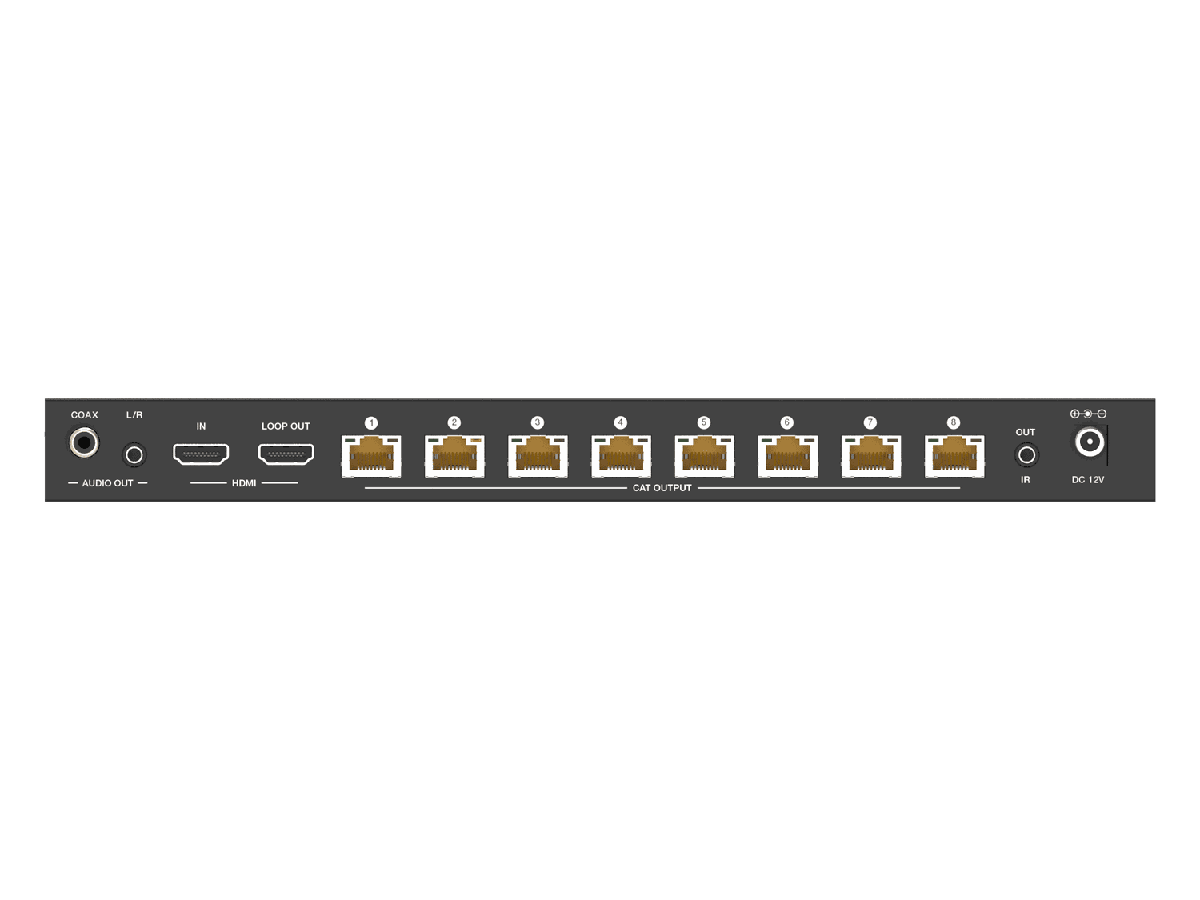

Output	1x HDMI Type A (19-pin female) 8x CAT OUT [RJ45, 8-pin female] 1x Coaxial Audio OUT [RCA] 1x L/R Audio OUT [3.5mm Stereo Mini jack]
HDMI Audio Formats	LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD
Analog Audio Formats	PCM 2.0
