VigilLink VLWP-2HVG HDBaseT 2.0 Auto-Switching VGA and HDMI Wall Plate

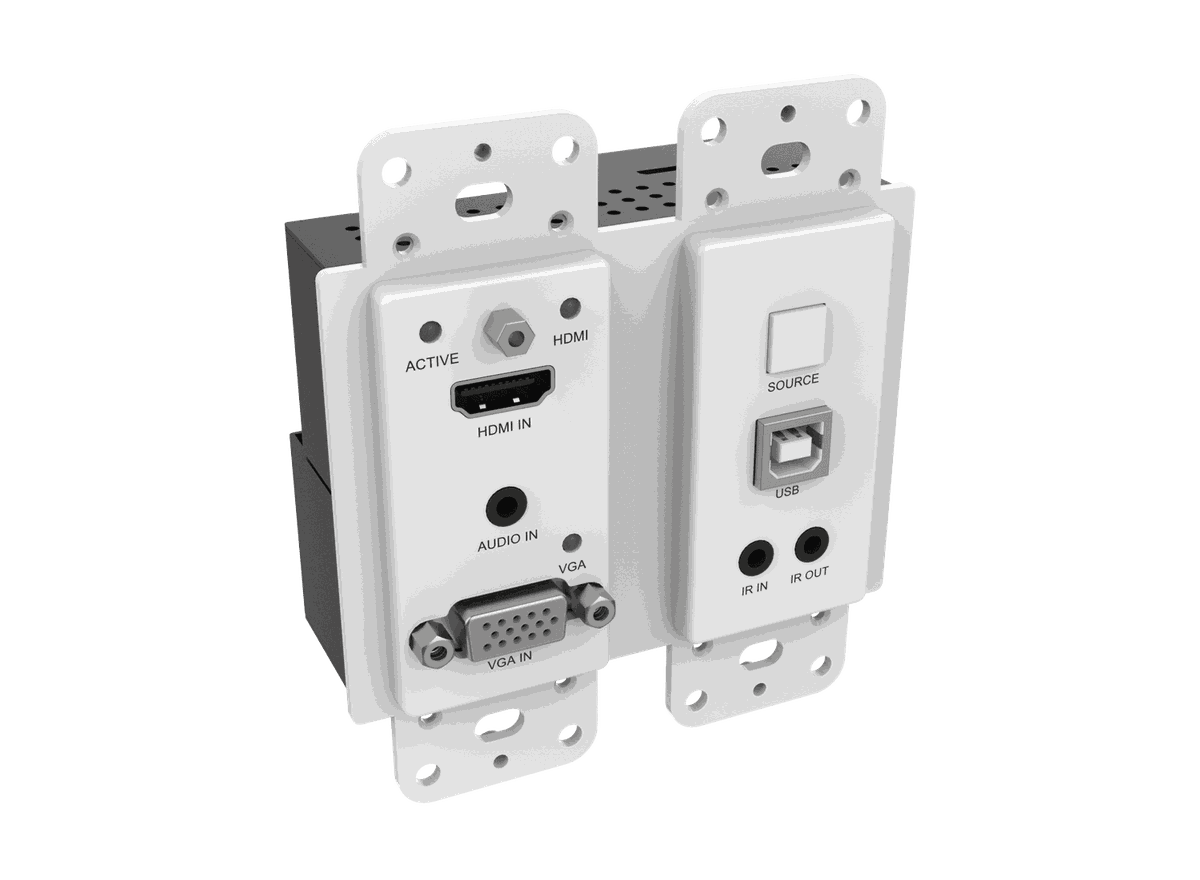

The VLWP-2HVG transmitter handles both digital and analog video at the wall, with HDMI and VGA inputs plus a dedicated audio input, in a 2-gang US Decora box. Classrooms and training rooms that still have a laptop with a VGA output stay usable without an adapter drawer.

HDMI travels over Cat6/6a/7 cable up to 131 feet (40 meters) at 4K, with USB 2.0, KVM, IR, RS-232, and Power over Cable carried alongside. The matching receiver completes the link at the display end.

HDMI Compliance	HDMI 2.0b
HDCP Compliance	HDCP 2.2
Video Bandwidth	18 Gbps
Video Resolution	4K2K@50/60Hz 4:4:4 (max)
Transmitter	Inputs: 1x HDMI Type A [19-pin female] 1x VGA [15-pin female] 1x USB [USB-B] 1x IR IN [Phoenix jack] 1x RS-232 [Phoenix jack] 1xAUDIO IN [3.5mm Stereo Mini-jack]
Outputs	1x HDBaseT Out [RJ45] 1x IR OUT [Phoenix jack]
HDMI Audio Formats	LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS- EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, VGA Video Resolution 1080P@50/60Hz 4:4:4 (max)
Color Space	RGB/YCbCr 4:4:4, YCbCr 4:2:2
