VigilLink VLWP-UHCI150-TR 2x1 USB-C and HDMI HDBaseT Wall Plate with Receiver, 120m

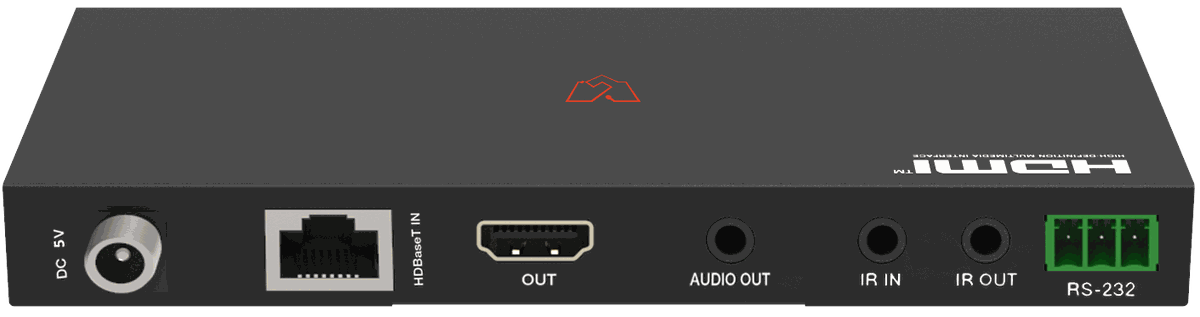

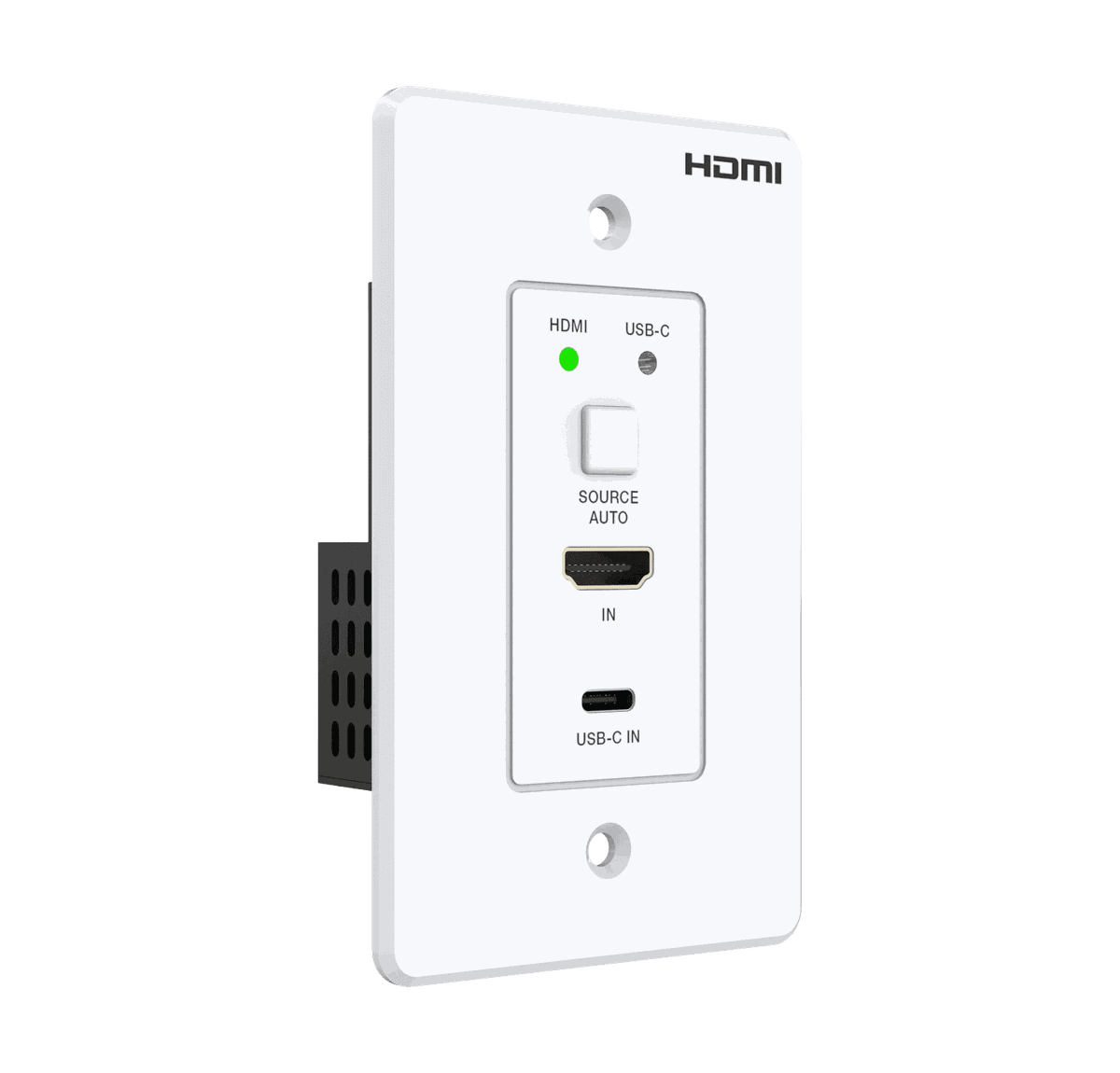

The VLWP-UHCI150-TR pairs a single-gang US wall plate transmitter with HDMI and USB-C inputs and auto or manual switching, and ships with the HDBaseT 2.0 receiver. Video is HDMI 2.0b (HDCP 2.2) at 4K@60Hz 4:4:4 and 18Gbps, with HDR10, HDR10+, Dolby Vision, and HLG pass-through.

A single Cat6/6A cable reaches 394 feet (120 meters) at 4K@60 4:4:4 or 492 feet (150 meters) at 1080p@60. Bidirectional PoC lets one power supply at either end run the whole link, and bidirectional IR, RS-232, and CEC travel with the video, with 3.5mm audio de-embedding at the receiver.

HDMI Compliance	HDMI 2.0b
HDCP Compliance	HDCP 2.2
Video Bandwidth	18 Gbps
Video Resolution	Up to 4K2K@60Hz 4:4:4 Including all 3D TV format Including all resolution in computer such as 1920x1200
Transmission Distance	Up to 120m/394ft for 4K2K@60Hz 4:4:4 via CAT6/6A cable Up to 150m/492ft for 1080P@60Hz 4:4:4 via CAT6/6A cable
HDMI Audio Formats	LLPCM 2.0/2.1/5.1/6.1/7.1, Dolby Digital, Dolby TrueHD, Dolby Digital Plus (DD+), DTS-ES, DTS HD Master, DTS HD-HRA, DTS-X
Color Space	RGB_4:4:4, YCbCr_4:4:4, YCbCr_4:2:2, YCbCr_4:2:0
Color Depth	8/10/12-bit
