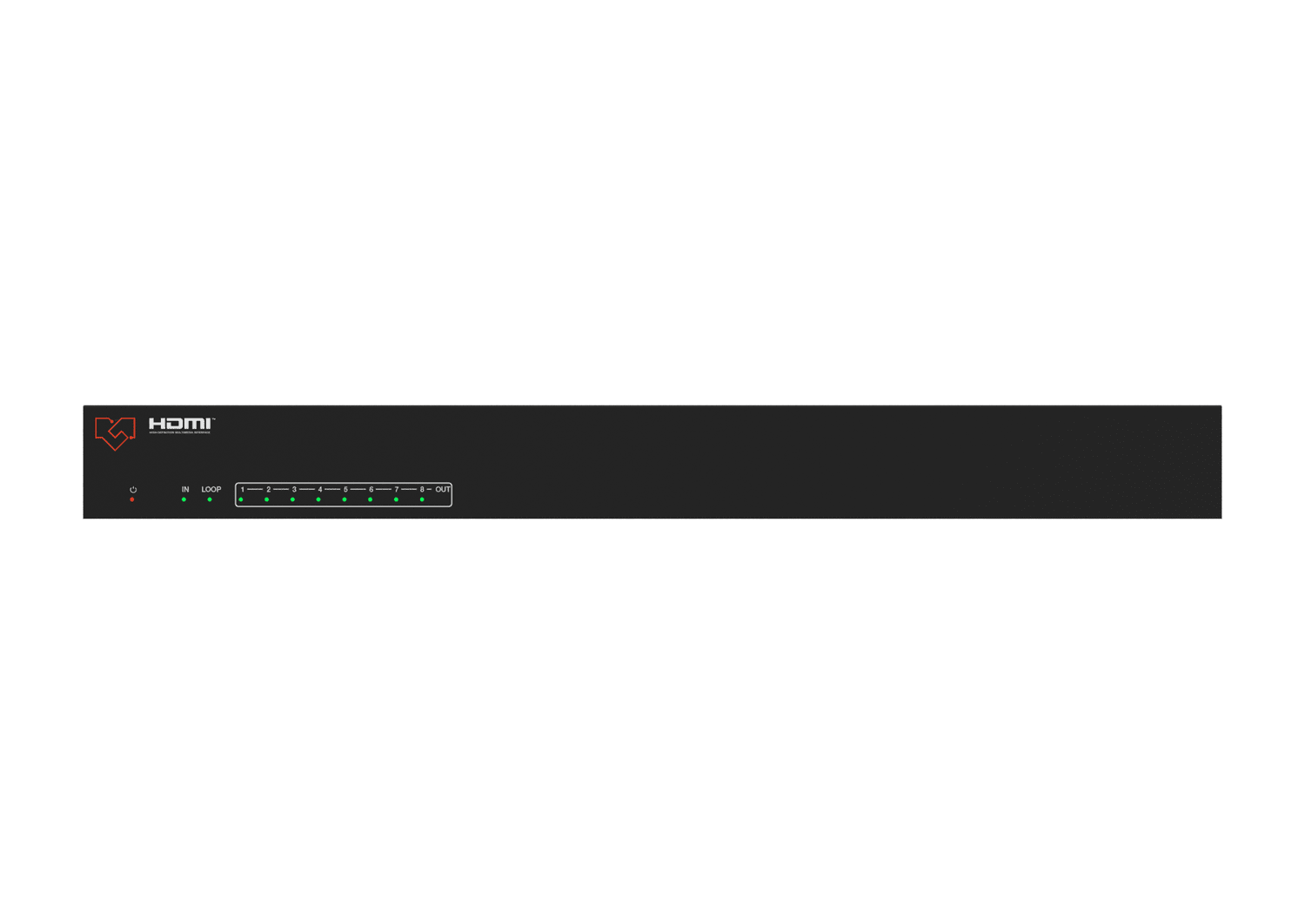

VigilLink VLSP-18HT150 1x8 HDMI Splitter over HDBaseT, 150m

The VLSP-18HT150 distributes a single 4K HDMI source to up to eight remote displays over HDBaseT, at 4K@60Hz 4:4:4 and 18Gbps, with one HDMI loop output and eight HDBaseT outputs.

Over a single Cat6/6a/7 cable each leg extends up to 120 meters at 4K@60Hz, which puts a whole building's displays within reach of one rack. HDR, HDR10+, HLG, and Dolby Vision pass through under HDMI 2.0b with HDCP 2.2 and 1.x.

HDMI Compliance	HDMI 2.0b
HDCP Compliance	HDCP 2.2/1.x
Video Bandwidth	594MHz/18Gbps
Video Resolution	Up to 4k2k@60Hz 4:4:4
Input	1x HDMI Type A [19-pin female]

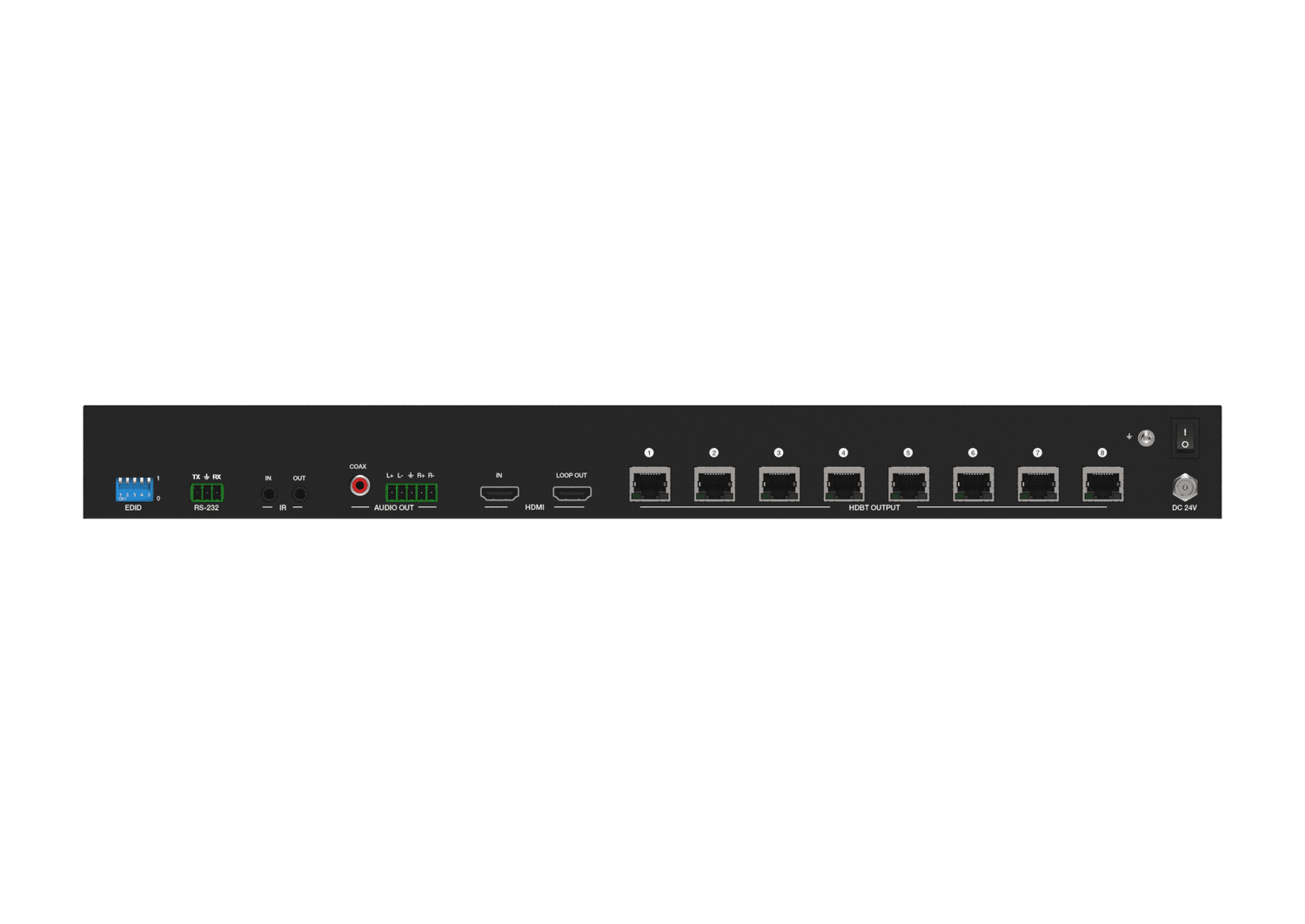

Output	1x HDMI Type A (19-pin female) 8x HDBaseT OUT [RJ45] 1x Coaxial Audio OUT [RCA] 1x L/R Audio OUT [5-pin phoenix connector]
HDMI Audio Formats	LPCM 2.0/2.1/5.1/6.1/7.1, Dolby Digital, Dolby TrueHD, Dolby Digital Plus (DD+), DTS-ES, DTS HD Master, DTS HD-HRA, DTS-X
Analog Audio Formats	PCM 2.0CH
